ESD Solder Fume Extractor | FumeCube PRO Single Arm 230V | EU Plug 230V | 38 mm Arm Kit

Solder Fume Extractor 230V FumeCube PRO Single Arm Europe Plug 230V 38 mm Arm Kit Purex - 366.072650.S38-410163
ESD

ESD Solder Fume Extractor | FumeCube PRO Single Arm 230V | EU Plug 230V | 38 mm Arm Kit

366.072650.S38-410163
HS Code : 84 21 398590
Brand

903,52 € exc tax
Packaging Unit :

  Tell A Friend

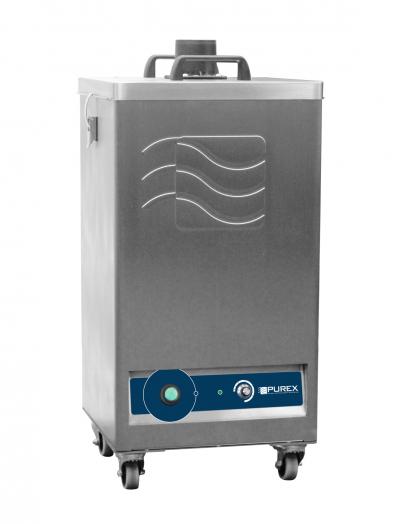

FUMECUBE PRO SINGLE ARM 38 mm Fume Extraction System

Portable extraction with single port 38 mm + ESD Arm Kit 100295ESD.

Machine Includes:
• 1 x Main Filter HEPA/Chemical (113831)
• 1 x Pre-Filter Single Bag F8/F9 Labyrinth
• 1 x 51 mm x 2 m Flexible Hose
• 2 x Connecting Cuffs
• 1 x Clamped Bench Bracket
• 1 x 38 mm Stainless Steel Flexible Arm & Valve
• 1 x 38 mm Pen Nib Nozzle
• 1 x 95 mm Conical Cowl
• 1 x Europe Power Plug 230V

FUMECUBE PRO SINGLE ARM FEATURES

• Visual and audible filter blocked warning alerts the operator when a filter starts to block and should be changed. This would avoid any down time
• Varicolor filter blocked warning system
• LED filter status: Green = OK; Yellow = Filter nearly full; RED = Replacement filter is needed
• Automatic electronic flow control – maintains a constant extraction rate even as the filter blocks
• Adjustable airflow
• Operates worldwide with no loss of performance
• Low capital and running costs
• Submicronic (HEPA) filtration removes 99.997% of particles down to 0.3 microns
• Activated carbon filtration removes harmful gas
• Simple to install and quiet in operation
• Easy to relocate
• Precision made from Stainless steel
• Remote interface capability

Model
FumeCube PRO 230V
Fume Extraction Category
Fume Extraction Systems
Fume Extraction Type
FumeCube PRO Single Arm
Voltage
230V
Wattage
0.14kW
Power Plug
Europe
Frequency
50-60Hz
Sound Level
<60dBa
Airflow
170m3/h
Dimensions
680 x 350 x 335 mm
Weight
25 Kg

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
