Limited Electrically Conductive & Antistatic Chair Floor Mat | Signa ED | Ombre Gray | 1.22 x 1.5 m x 3 mm
Back

Electrostatic Dissipative Chair Floor Mat Signa ED Ombre Gray 1.22 x 1.5 m x 3 mm Antistatic ESD Rubber Floor Covering

Roll over and scroll on image to zoom

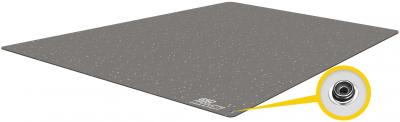

Electrostatic Dissipative Chair Floor Mat | Signa ED | Ombre Gray | 1.22 x 1.5 m x 3 mm

860-1523.ED.2931.M.12

262,60 € exc tax

Packaging Unit :

Add To Cart

Add To WishList

Tell A Friend

RUBBER FLOOR COVERINGS | Noraplan Signa ED

Electrostatically dissipative "ED" floorings for optimum ESD protection of electronic devices and equipment. Protect against electrical shock, resist most oils and greases.

Available models

[ Colour ]

Product Description

KEY FEATURES

* Good for heavy usage
* High footfall sound absorption (6-8 dB)
* R9-slip resistance
* Free of PVC, phthalate plasticizers and halogens
* Increased safety thanks to high fire-retardant properties
* No coatings needed

INSTALLATION & MAINTENANCE

INSTALLATION
Successful rubber floor installation is a combination of high-quality floor covering, proper subfloor preparation and skillful workmanship. Nora installation guides provide all the information you need to help ensure that your rubber floor installation will look great and perform well for years to come.

CARE
Your nora rubber flooring requires no finishing, waxing or sealing. All AES floor coverings have a dense, nonporous and dirt-repellant surfaceâeliminating the need to use unfriendly, harsh cleaning chemicals. Understanding how to properly clean and maintain your new rubber floor, even by using just water, will help you keep it looking attractive for years to come.

Profile connection dimension: D + U.
Please note: noraplan® ed floorings must be treated with the nora® joint-sealing compound.

Technical Details

Model: Noraplan Signa ED
Floor Category: Antistatic ESD Rubber Floor Covering
Floor Type: Chair Floor Mat
Conductive / Dissipative: Electrostatically Dissipative
Colour: Ombre Gray
Fire Behavior: Cfl-s1
Resistance to EPA earth Test Method: ESD STM 7.1 / IEC 61 340-4-1
Resistance to EPA earth Requirements: 10⁶ – 9 x 10⁷Ohm (Measuring the installed floorat 23 °C (± 2 °C) and ≥ 25 % r.h.) 10⁶ – 10⁹Ohm*** (Measuring the installed floorat 23 °C (± 2 °C) and < 25 % r.h., installed on an appropriate subfloorbuild up. The used adhesive has to have a permanent resistance of R < 3 x 105 Ohm according to EN 13 415. If extremely low humidity values (< 25 % relative air humidity (= r.h.)) are expected for a longer period)
Resistance To EPA Earth Electrical Behaviour/Result: 10⁶ – 9 x 10⁷Ohm
Resistance To Ground Test Method: ESD STM 97. I / IEC 61 340-4-5
Resistance To Ground Requirements: For the system floor/conductive footwear (R < 5 x 106 Ohm) measuring the installed floorat 23 °C (± 2 °C) and ≥ 25 % r.h.
Resistance To Ground Electrical Behaviour/Result: ≤ 3.5 x 10⁷ · Ohm
Resistance to earth Test Method: EN 1081
Resistance To Earth Electrical Behaviour/Result: 10⁶ – 9 x 10⁷Ohm
Electrical behaviour Conductivity resistance: ed = ≤ 109 Ohm
Insulation resistance Test method: VDE 0100 - 600
Insulation Resistance Electrical Behaviour: ≥ 1 x 105 Ohm
Charging Voltage Test method: ESD STM 97.2 / IEC 61 340-4-5
Charging Voltage Requirements: Tested with deflned conductive footwear with 23 °C and 12 % r.h.
Charging Voltage Electrical Behaviour: < 10 V
Requirements: ed = ≤ 109 Ohm ec = ≤ 106 Ohm
Thickness: 3 mm
Dimensions: 1.22 x 1.5 m

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
