AES (AntiStatic-ESD-Solutions bvba) * ESD prevention clearly distinguish the difference between an ESD work shoe and an ESD Safety Shoe.
ESD shoes, have an electrostatically dissipative conductive shoe sole, popularly known as antistatic shoes (which is not the same, incorrectly).
Safety Work Shoes are classed as ESD safe shoes when the resistance value of the system person-shoe-floor is below 3,5 x 10^7 resp. 35 MOhm according to EN 61340-5-1.
INTERNATIONAL STANDARD-ESD IEC 61340-5-1 Edition 1.0 2007-08
IEC 61340-4-3, Electrostatics – Part 4-3: Standard test methods for specific applications: Footwear
IEC 61340-4-5, Electrostatics – Part 4-5: Standard test methods for specific applications:
Methods for characterizing the electrostatic protection of footwear and flooring in combination with a person.

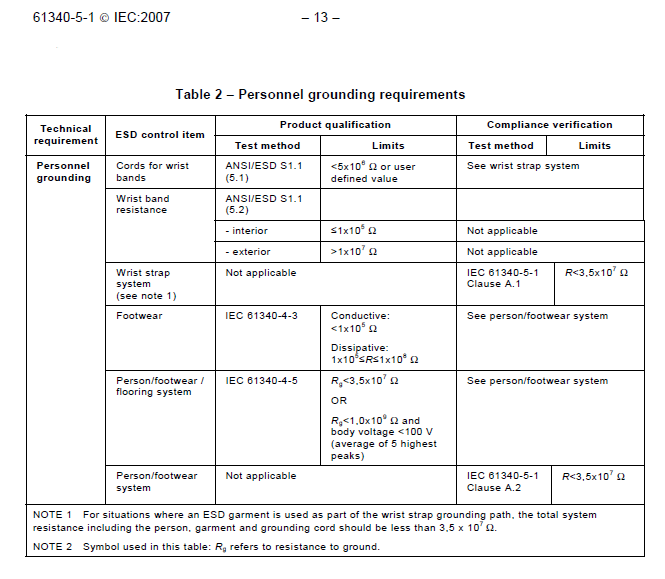

5.3.2 Personnel grounding
For standing operations, personnel can be grounded via a wrist strap system or by a flooringfootwear system.
When a flooring-footwear system is used, either of the two following conditions shall be met:
the total resistance of the system (from the person, through the footwear and flooring to equipment ground) shall be less than 3,5 × 107 ?;
the maximum body voltage generation shall be less than 100 V and the total resistance of the system shall be less than 1 x109 ?.
A.2 Measurement procedure for ESD-footwear testing
The operator shall stand with one foot on the conductive footwear electrode.
The hand contact plate shall be pressed to verify that the person/footwear system resistance is within acceptable parameters (see Figure A.2).
The test shall be repeated for the other foot.
The test apparatus can be an integrated, commercially available tester or other instrumentation that is capable of measuring resistance from 5,0x104 Ω to at least 1,0x108 Ω.
The tester open-circuit voltage is typically between 9 V d.c.and 100 V d.c.
Categories ESD Occupational Shoes:
|
|
|
|
|
|
|
|
Categories ESD Safety Shoes:
|
|
|
|
|
|
|
Warning:
ESD shoes are not suitable for electricians respectively
when working on sources with electric voltage.
ESD Occupational Business Shoes for Gentlemen, Lace-up shoe black ESD, Calf leather black, Lining...
ESD Occupational Business Shoes for Gentlemen, Lace-up shoe brown ESD, Calf leather brown, Lining...
ESD Occupational Business Shoes for Gentlemen, Lace-up shoe black ESD, Calf leather black, Lining...
ESD Occupational Business Shoes for Gentlemen, Low shoe black ESD, Smooth leather black, Lining m...
ESD Occupational Business Shoes for Gentlemen, Low shoe black ESD, Smooth leather black, Lining m...
ESD Occupational Business Shoes for Gentlemen, Lace-up shoe black ESD, Calf leather black, Lining...
ESD Safety Shoes Business for Gentlemen, Low shoe black ESD, Smooth leather black, Lining microfi...
ESD Safety Shoes Business for Gentlemen, Low shoe black ESD, Smooth leather black, Lining microfi...
ESD Occupational Shoes Business Men. Stylish, narrow shoe for men made of soft calfskin with a sh...
ESD Occupational Business Pumps for Ladies, Pumps black ESD, Smooth leather black, Lining microfi...
ESD Occupational Business Shoes for Ladies, Pumps black ESD, Smooth leather black, Lining microfi...
ESD Occupational Business Shoes for Ladies, Pumps black ESD, Smooth leather black, Lining microfi...
ESD SAFETY SHOES WINDEX | SKIPPER LADY
Women'S CHOICE
A new line, a new design and a new fit. S...
ESD SAFETY SHOES WINDEX | SKIPPER LADY
Women'S CHOICE
A new line, a new design and a new fit. S...
ESD SAFETY SHOES CIMA | SKIPPER LADY
Women'S CHOICE
A new line, a new design and a new fit. Ski...
ESD SAFETY SHOES TIMBA | RITMO
A SAFE FOOTPRINT
The ESD safety footwear from the Ritmo line is ...
ESD SAFETY SHOES CUBAN | RITMO
A SAFE FOOTPRINT
The ESD safety footwear from the Ritmo line is ...
ESD SAFETY SHOES CUBAN | RITMO
A SAFE FOOTPRINT
The ESD safety footwear from the Ritmo line is ...
ESD SAFETY SHOES CUBAN | RITMO
A SAFE FOOTPRINT
The ESD safety footwear from the Ritmo line is ...
ESD Occupational Shoes Female. Breathable and comfortable ESD shoe with Velcro fastening. FlexSte...
ESD Occupational Boots Women. Durable boots with upper leather that keeps its shape and is water-...
ESD Safety Boots Women. All the details of the Alaska shoes have been especially designed for col...
ESD Safety Boots Women. All the details of the Alaska shoes have been especially designed for col...
ESD CLOGS DARK BLUE | NATURE | 4045
* Size 34-48
* CE, EN ISO 20347:2012, OB, FO,A, SRC
* Sm...
ESD CLOGS DARK BLUE | NATURE | 4045
* Size 34-48
* CE, EN ISO 20347:2012, OB, FO,A, SRC
* Sm...
ESD Ankle Safety Shoes for Women and Women. The ACT158 is a white high safety shoe. This safety s...
ESD CLOGS DARK BLUE | NATURE | 4045
* Size 34-48
* CE, EN ISO 20347:2012, OB, FO,A, SRC
* Sm...
ESD SAFETY SHOES WINDEX | SKIPPER LADY
Women'S CHOICE
A new line, a new design and a new fit. S...
ESD CLOGS DARK BLUE | NATURE | 4045
* Size 34-48
* CE, EN ISO 20347:2012, OB, FO,A, SRC
* Sm...
ESD CLOGS DARK BLUE | NATURE | 4045
* Size 34-48
* CE, EN ISO 20347:2012, OB, FO,A, SRC
* Sm...
ESD Occupational Shoes . The upper material is durable and washable microfibre. The 3D-dry® linin...
ESD CLOGS WHITE | NATURE | 4050
* Size 34-48
* CE, EN ISO 20347:2012, OB, A, FO, SRC
* Smoot...
ESD Occupational Shoes . The upper material is durable and washable microfibre. The 3D-dry® linin...
ESD CLOGS WHITE | NATURE | 4050
* Size 34-48
* CE, EN ISO 20347:2012, OB, A, FO, SRC
* Smoot...
ESD Safety Shoes for Women. Zip is a sportive S1P safety shoe by Bata Industrials. The Zip safety...
ESD Occupational Shoes . The upper material is durable and washable microfibre. The 3D-dry® linin...
