ESD Lamp Lumax | 1140 mm | Twin Configuration

200.ECC.00.9.C.00.350.185.9N
HS Code : 9405 10 98
Brand

1.262,00 € exc tax
Packaging Unit :

  Tell A Friend

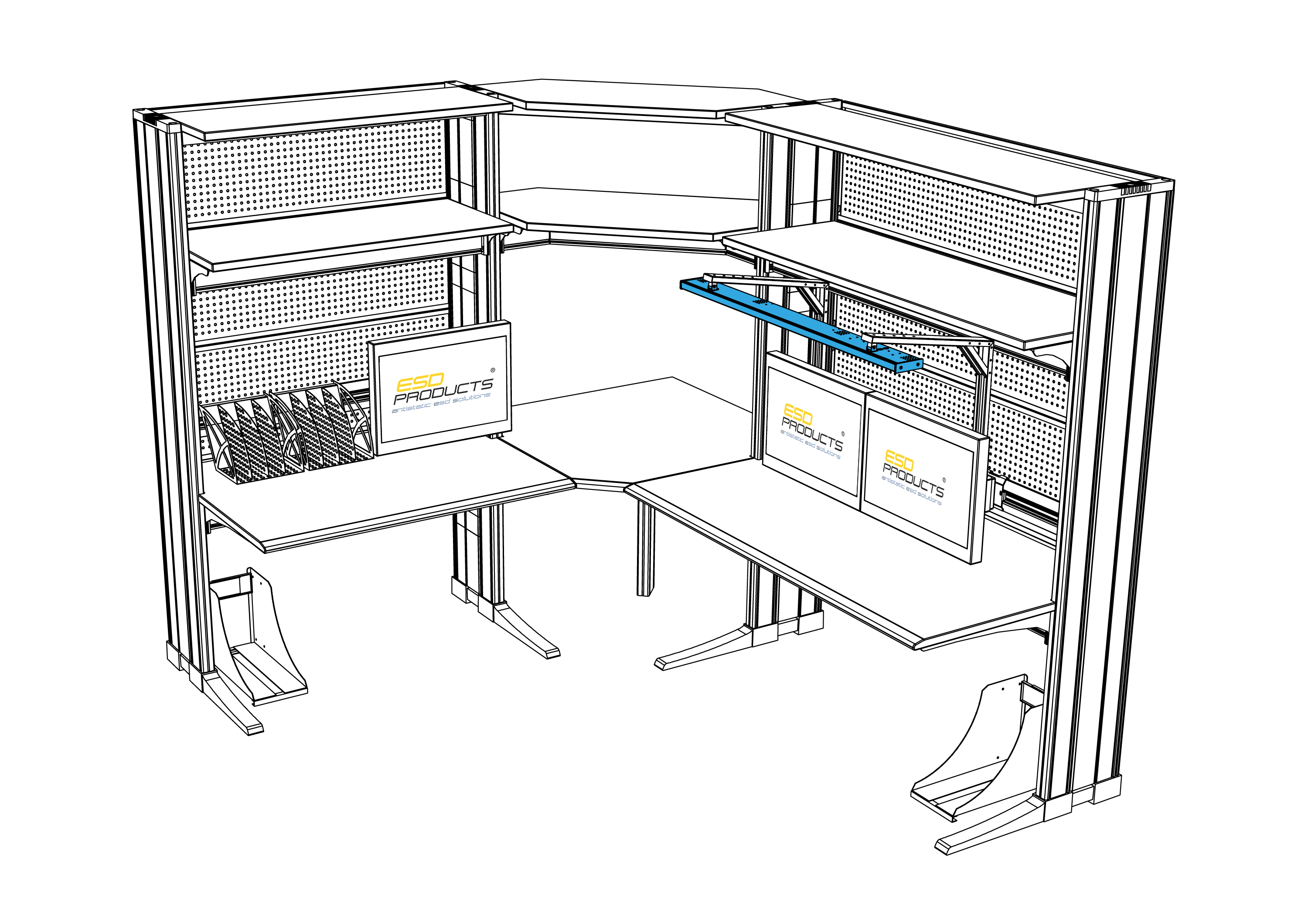

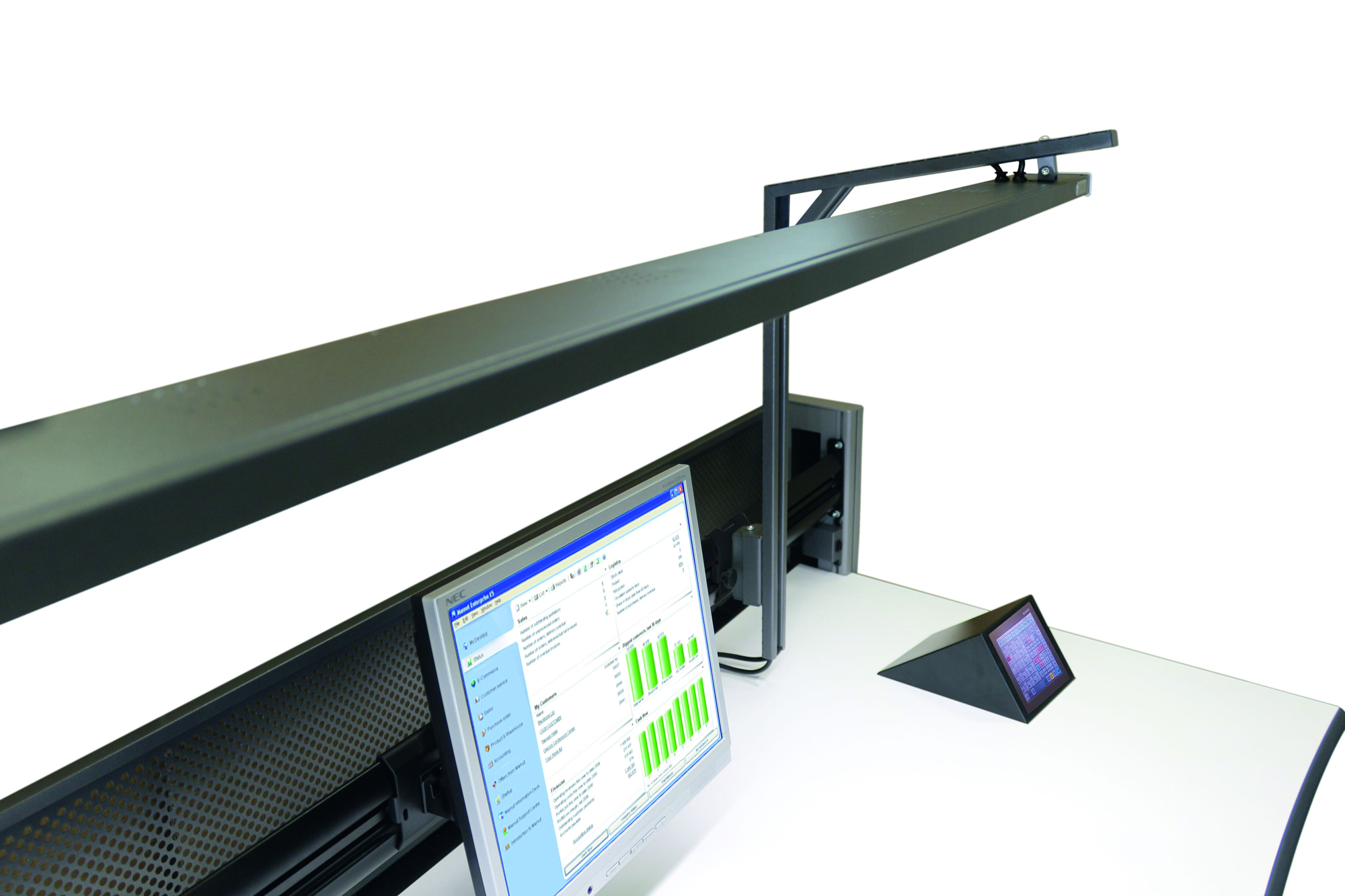

ESD Lamp Lumax 1140 mm for ESD Corner Workstation AES Oscar | Twin Configuration 1600 x 900 mm + 1200 x 900 mm.
State of the art LED-Modules for highest efficiency.
- Metallic grey microstructure
- Side cover: RAL 9007 grey aluminum microstructure
- Sheet steel powder coated
- Glare free
- Photometric properties checked according to DIN EN 13032-1
- Overdimensioned LED-Modules allow for dimming in the first years of use and thus grant extremly longevity
- Dimmable with „Touch DIM“ feature via push button on the lamp or at tabletop
- 20° tiltable
Technical Data (W1140)
Luminous flux 2160 lm
- Luminous efficiency: 80 lm/W
- Color temperature: 4000 K
- Color rendering index: Ra > 80
- SDCM: 4
- Dimming range: 1 – 100%
- Average lifetime (LED): 50.000 h
Electrical:
- Power consumption max. 27 W
- Power supply: 220 – 240 V 50/60 Hz

Model
AES OSCAR
Workstation Category
AES OSCAR Parts & Accessories
Parts & Accessories
ESD Lighting

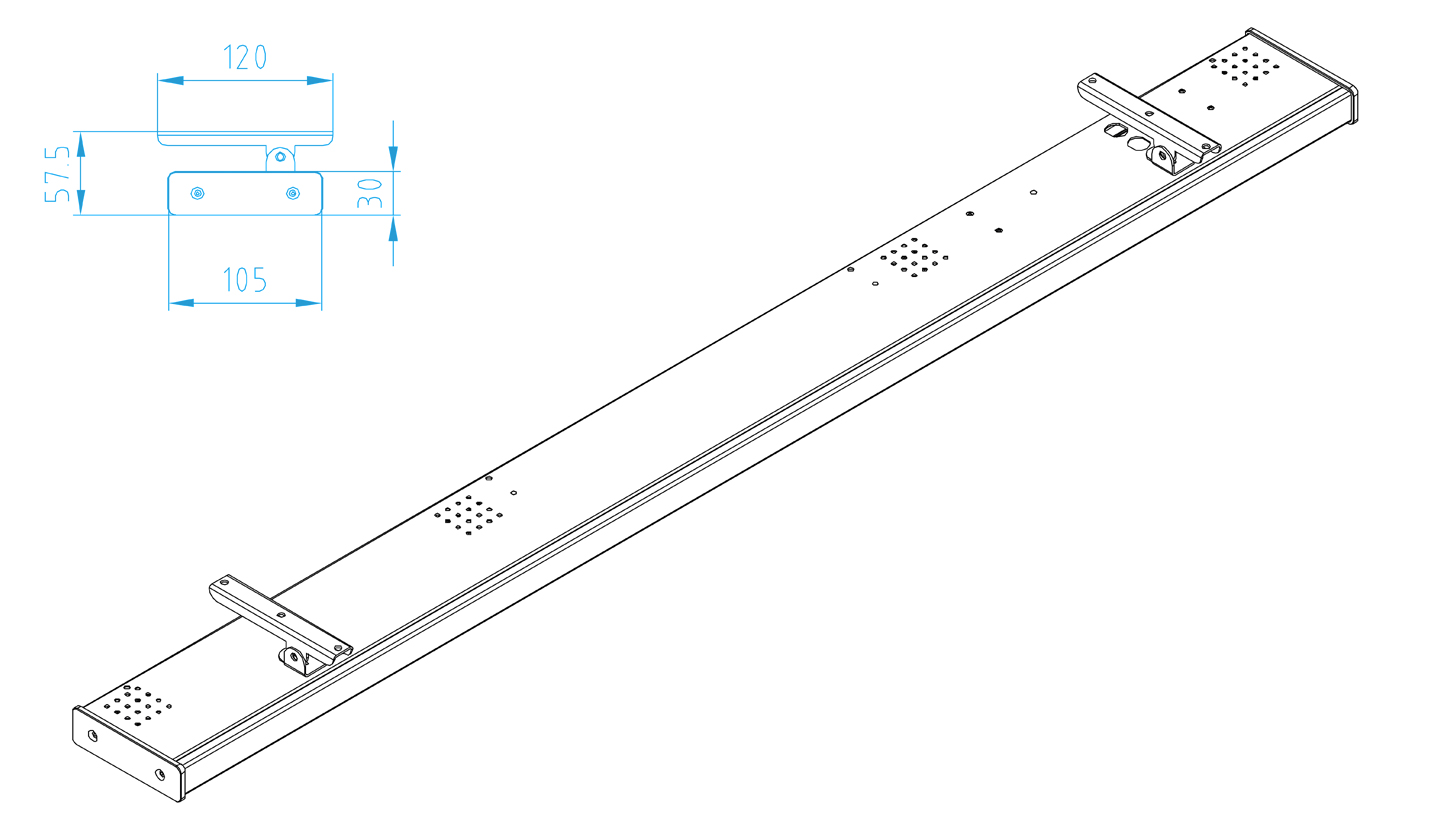

Dimensions
1140 mm
AES_Catalog AES_Technical-Furniture-Elicon-product-catalogue_04_upd
7.77 MB
AES_Catalog AES_Technical-Furniture-Workstation-for-Electronic-Engineers-products_01_upd
4.35 MB


All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
