ESD Printorama Printed Circuit Board RACK-SYSTEM-180 Slotted wall 600

312.5518.000.992
HS Code : 39231090
Brand

19,24 € exc tax
Packaging Unit :

  Tell A Friend

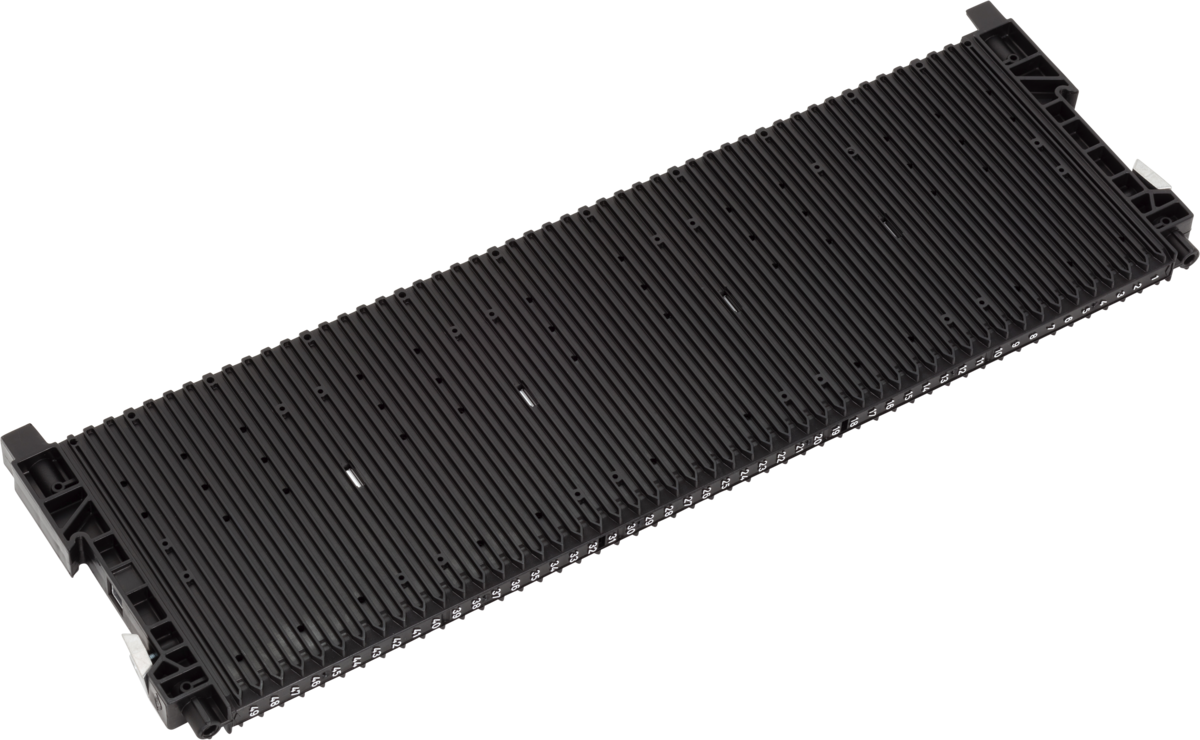

Antistatic ESD Slotted wall 600 for Printorama Printed Circuit Board RACK-SYSTEM-180 without base stop, strengthened.
Range 180
The simplest and most reliable system for handling printed circuit boards with ESD safe protection. Like using a construction kit, you can put together your wezRack system using the different possible combinations. There is an integrated slot for adjusting the size efficiently and in simplest possible way. When you combine them with our euro containers you achieve perfect protection, even during transport.
Quick and simple adjustment.
The adjusting slot marked with a rhombus is located at each end of the slotted wall and has about 0.25 mm less depth than other slots. Simply place the printed circuit board in the wall, fasten the wall and aluminum profile and you have set-up the insert measurement perfectly.
Slot dimensions: Division = 10.16 mm Width = 3.50 mm Depth = 2.50 mm.
Reference catalog: p34.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
Rack-Systems-180
Designation
Slotted wall 600
Page
34
Set for base
555 x 180 x 22/25 mm
Height
180 mm
Outer Dimensions L x W x H
555 x 180 x 22/25 x 180 mm
Weight
730 g
Material
PPC
Number per pallet
276
Stock item
Yes
Black esd
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
