ESD Container Lidded Boxes with Hinged Lid 225 x 125 x 60 mm

Anti-Static-ESD-Antistatic-One-piece-Lid-small-box-with-snap-lock-and-film-hinge-Ref-2212.060.992_1004188_225x125x60_01
ESD
Anti-Static-ESD-Antistatic-One-piece-Lid-small-box-with-snap-lock-and-film-hinge-Ref-2212.060.992_1004188_225x125x60_01
ESD-One-piece-Lid-small-box-with-snap-lock-and-film-hinge-Ref-2212.060.992_1004188_225x125x60_01_ope
ESD-One-piece-Lid-small-box-with-snap-lock-and-film-hinge-Ref-2212.060.992_1004188_225x125x60_03
ESD-One-piece-Lid-small-box-with-snap-lock-and-film-hinge-Ref-2212.060.992_1004188_225x125x60_02

ESD Container Lidded Boxes with Hinged Lid 225 x 125 x 60 mm

312.2212.060.992
HS Code : 39231090
Brand

5,52 € exc tax
Packaging Unit :

  Tell A Friend

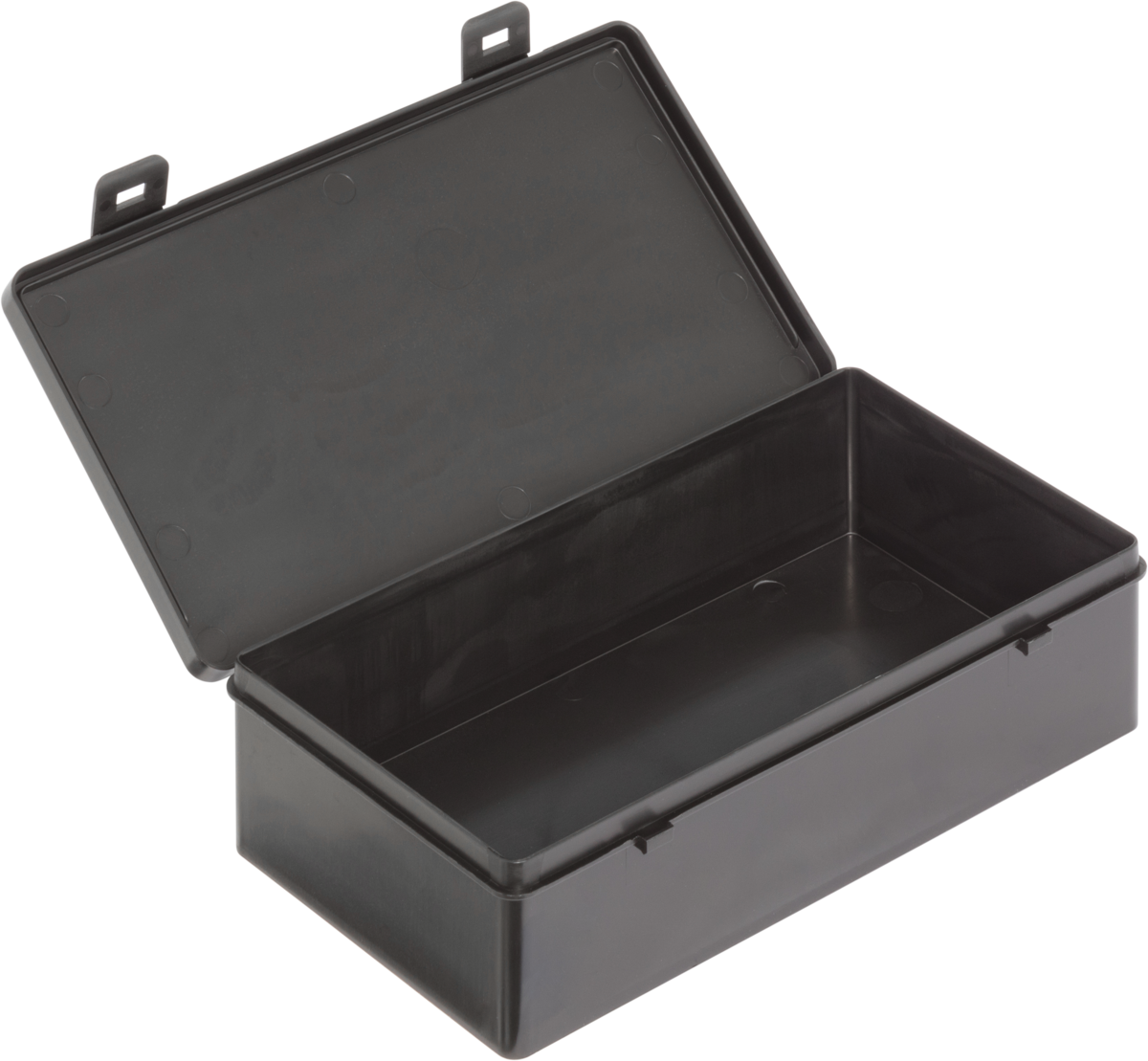

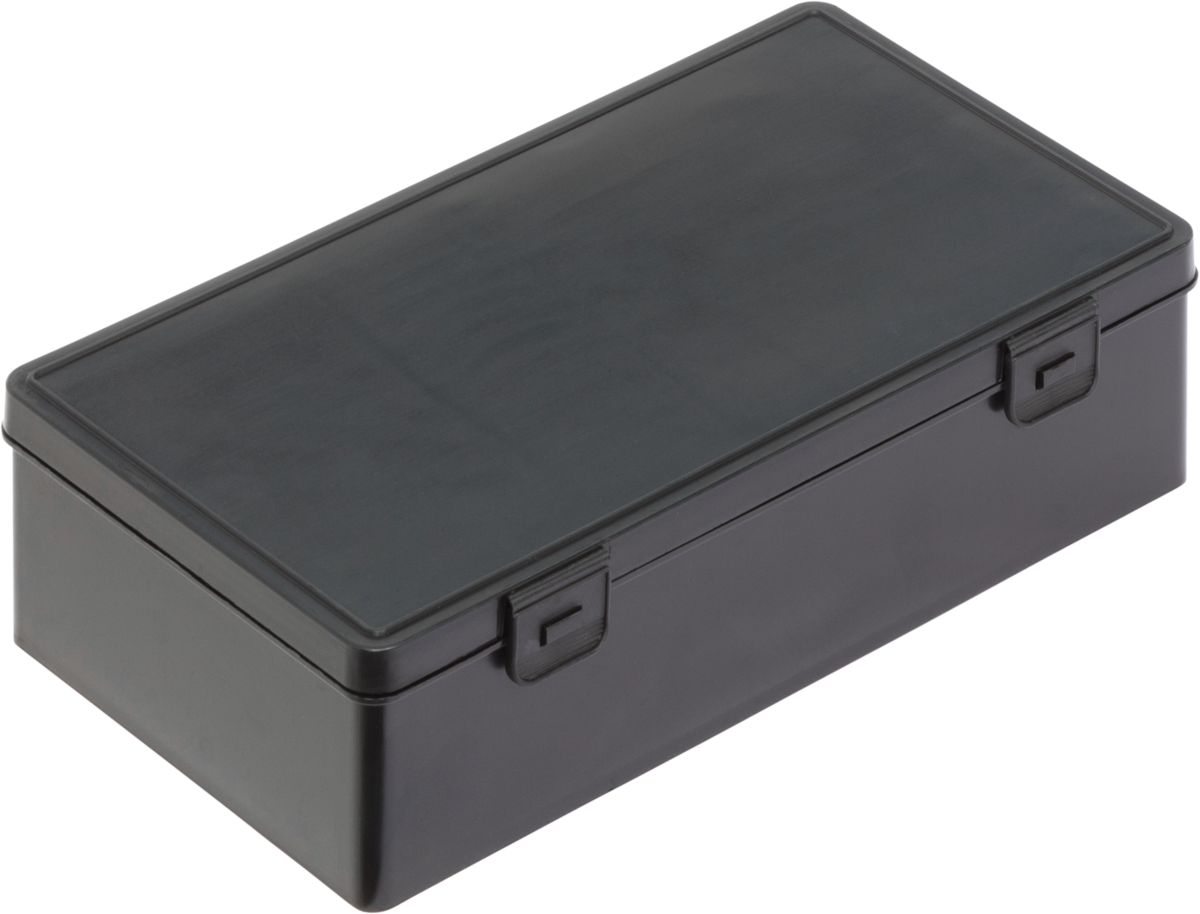

Lidded ESD Container Boxes with hinged lid 225 x 125 x 60 mm.
Lidded ESD boxes:
These practical small ESD safe boxes are ideal for storing and shipping your smaller items.
The one-piece anti static lid and ESD container together with the snap lock and film hinge allow you to package your small items reliably and securely.
Reference catalog: p38.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
Lidded boxes
Designation
Box with hinged lid
Page
38
Set for base
225 x 125 mm
Height
60 mm
Outer Dimensions L x W x H
225 x 125 x 60 mm
Inner Dimensions L x W x H
221 x 121 x 55 mm
Usable height
55 mm
Stacking height
60 mm
Volume (m3)
147 Ltrs
Weight
188 g
Base designation
flat base
Base Closed
Yes
Sidewalls closed
Yes
Grip closed
Yes
Material
PPC
Number per box
72
Stock item
Yes
Black esd
Yes
Foam
Yes
Printing
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
