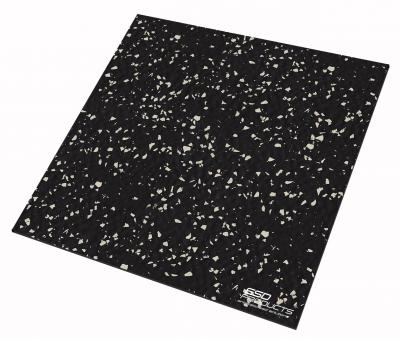

Electrically Conductive Flooring Tile | Grano EC | Jet Black | 1004 x 1004 mm x 3.5 mm
Back

Electrostatic Conductive Floor Tile Grano EC Jet Black 1004 x 1004 mm x 3.5 mm Antistatic ESD Rubber Floor Covering

Roll over and scroll on image to zoom

Electrostatic Conductive Floor Tile | Grano EC | Jet Black | 1004 x 1004 mm x 3.5 mm

860-927.GRANO EC.1880.4617.T

Packaging Unit :

Price On Request

Add To WishList

Tell A Friend

RUBBER FLOOR COVERINGS | Norament Grano EC 927

Electrostatically conductive "EC" floorings for optimum ESD protection of electronic devices and equipment. Suitable for areas with a risk of explosions and fork-lift-truck areas. Largely resistant to acids and alkalis.

Product Description

KEY FEATURES

* Good for very heavy usage
* Very high footfall sound absorption (10 dB)
* R9-slip resistance
* Free of PVC, phthalate plasticizers and halogens
* Increased safety thanks to high fire-retardant properties
* Also suitable for raised floor elements 600 x 600 mm
* No coatings needed

INSTALLATION & MAINTENANCE

INSTALLATION
Successful rubber floor installation is a combination of high-quality floor covering, proper subfloor preparation and skillful workmanship. Nora installation guides provide all the information you need to help ensure that your rubber floor installation will look great and perform well for years to come.

CARE
Your nora rubber flooring requires no finishing, waxing or sealing. All AES floor coverings have a dense, nonporous and dirt-repellant surfaceâeliminating the need to use unfriendly, harsh cleaning chemicals. Understanding how to properly clean and maintain your new rubber floor, even by using just water, will help you keep it looking attractive for years to come.

Profile connection dimension: E + U.

Technical Details

Model

Norament Grano EC 927

Floor Category

Antistatic ESD Rubber Floor Covering

Floor Type

Floor Tile

Conductive / Dissipative

Electrostatically conductive

Colour

Jet Black

Fire Behavior

Cfl-s2

Resistance to EPA earth Test Method

ESD STM 7.1 / IEC 61 340-4-1

Resistance to EPA earth Requirements

10⁶ – 9 x 10⁷Ohm (Measuring the installed floorat 23 °C (± 2 °C) and ≥ 25 % r.h.) 10⁶ – 10⁹Ohm*** (Measuring the installed floorat 23 °C (± 2 °C) and < 25 % r.h., installed on an appropriate subfloorbuild up. The used adhesive has to have a permanent resistance of R < 3 x 105 Ohm according to EN 13 415. If extremely low humidity values (< 25 % relative air humidity (= r.h.)) are expected for a longer period)

Resistance To EPA Earth Electrical Behaviour/Result

< 10⁶ Ohm

Resistance To Ground Test Method

ESD STM 97. I / IEC 61 340-4-5

Resistance To Ground Requirements

For the system floor/conductive footwear (R < 5 x 106 Ohm) measuring the installed floorat 23 °C (± 2 °C) and ≥ 25 % r.h.

Resistance To Ground Electrical Behaviour/Result

< 3.5 x 10⁷ · Ohm

Resistance to earth Test Method

EN 1081

Resistance To Earth Electrical Behaviour/Result

10⁶ – 9 x 10⁷Ohm

Electrical behaviour Conductivity resistance

ec = ≤ 106 Ohm

Insulation resistance Test method

VDE 0100 - 600

Insulation Resistance Electrical Behaviour

no result

Charging Voltage Test method

ESD STM 97.2 / IEC 61 340-4-5

Charging Voltage Requirements

Tested with deflned conductive footwear with 23 °C and 12 % r.h.

Charging Voltage Electrical Behaviour

< 10 V

Requirements

ed = ≤ 109 Ohm ec = ≤ 106 Ohm

Thickness

3.5 mm

Dimensions

1004 x 1004 mm

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
