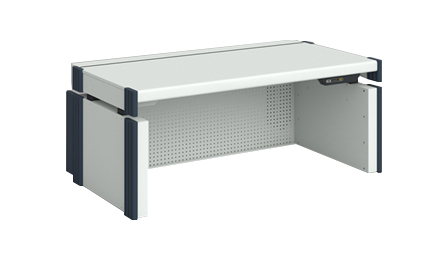

MOTORIZED WORKSTATION AES OSCAR | BESLA
• ESD version for discharging electrostatic charges
• Electromotive height adjustable from 720 - 1220 mm (with 3-fold memory function)
• Traverse speed 23 mm/s
• HV control panel with digital display on the right below the working level
• Synchronized 4-fold lifting mechanism with a lifting force of 3600 N
• Table top with appealing 70 mm postforming edge in front with perforated metal paneling in the footwell
• Rear, accessible from above, large volume horizontal cable channel
• Horizontal cable duct for holding electrical components with self-retaining, split cable duct flap
• Cable duct flap with brush strip for cable entry
• Cable duct and cable duct flap antistatic coated
• Dust protection in the area of the cable duct through brush strip
• Prepared for power strip installation with 2 large-volume energy chains on the back for vertical cable routing
• Left and right back of the table leg with vertical cable channel
• Rear table legs can be extended at any time, to accommodate
• Vertical cable duct, luminaires, rapomos, small distribution boards, flat screens and shelves
INNOVATIVE LIFT MECHANICS
• Very quiet running
• Overload protection with individual current limitation
• Soft start and stop function
• Freely programmable height positions
• Anti-collision
• Programmable stopover and slow mode possible when driving into the end position
• Error detection by special codes, creation of a remote diagnosis
• Maintenance-free lifting mechanism
• Service-friendly lifting column table
All ESD products fulfill the IEC 61340 standards.
