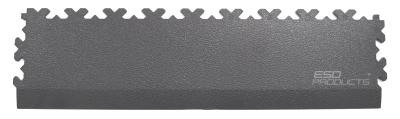

ESD Puzzle Ramp | MULTI-TILE | Cut/Milled | Grey | 500 x 140 x 5 mm

ESD Puzzle Ramp MULTI-TILE Cut And Milled Ramp Tile Grey 530 x 140 x 5 mm Antistatic Flooring ESD Products AES
ESD

ESD Puzzle Ramp | MULTI-TILE | Cut/Milled | Grey | 500 x 140 x 5 mm

215.P0106172302-MT-ESD
HS Code : 391810
Brand

22,28 € exc tax
Packaging Unit :

  Tell A Friend

AES MULTI-TILE PUZZLE RAMP ESD
*AES Multi-Tile Puzzle Ramps are applicable for the AES ESD Multi-Tile Puzzle Tiles*

AES Multi-Tile PVC interlocking tile surfaces are the perfect flooring solution for garage, factory and workshop applications. If your garage or factory floor is plagued by dust and dirt due to constant use, AES Multi-Tile is the fast and effective solution for any damaged, dusty and cracked flooring. Easily lifted, AES Multi-Tile is a great temporary flooring solution for exhibitions and trade-shows which can be used repeatedly for many years.

AES PUZZLE TILES ESD

The AES-Tile range of ESD (Electro Static Dissipative) is specifically manufactured to prevent electro static discharges from affecting or damaging electrical devices and for the safety of employees. All of our ESD products conform to IEC EN 61340-5-1-2010 and are available in Black & Dark Grey in Textured, Embossed & Waterjet Lasered.

THE DISSIPATIVE WORK FLOOR

AES Multi-Tile tiles are the ultimate work floor for companies or organisations where a conductive or antistatic floor is required.
Apart from the standard advantages of our AES Multi-Tile system, the AES tiles have excellent dissipative properties.
AES Multi-Tile floors are ESD safe, with constant surface- and conductivity resistance. Contrary to most ‘antistatic’ floors, AES Multi-Tile floors are not manufactured using carbon products or migrant antistatic.
Our reliable and patented technique includes adding (micro) metal fibres to the PVC compound.
AES tiles are available in a flat- and embossed structure and are suitable for any hard surface, even if slightly uneven.
AES_Correct Puzzle Tiles Flooring Guide to LOAD-LIMITS

Model
Multi-Tile
Floor Category
Antistatic ESD Puzzle Flooring
Floor Type
ESD Floor Puzzle Ramp
Compound Material
High-Performance Polymer
Colour
Dark Grey
Surface Finish
Cut/Milled
Electrical Resistance Surface
3 x 104 Ohm < Rs < 3 x 105 Ohm (DIN EN 1815)
Ground Resistance
3 x 105 Ohm < Rg < 9 x 105 Ohm (DIN EN 1018)
Thickness
5 mm
Dimensions
500 x 140 mm
Weight
0.54 Kg

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
