ESD Puzzle Corner | INCAFLOOR | Cut/Milled | Grey | 140 x 140 x 5 mm

No stock item
ESD Puzzle Corner INCAFLOOR Interlocking PVC Floor Tiles 5 mm Antistatic Flooring ESD Products AES
ESD
ESD Puzzle Corner INCAFLOOR Interlocking PVC Floor Tiles 5 mm Antistatic Flooring ESD Products AES

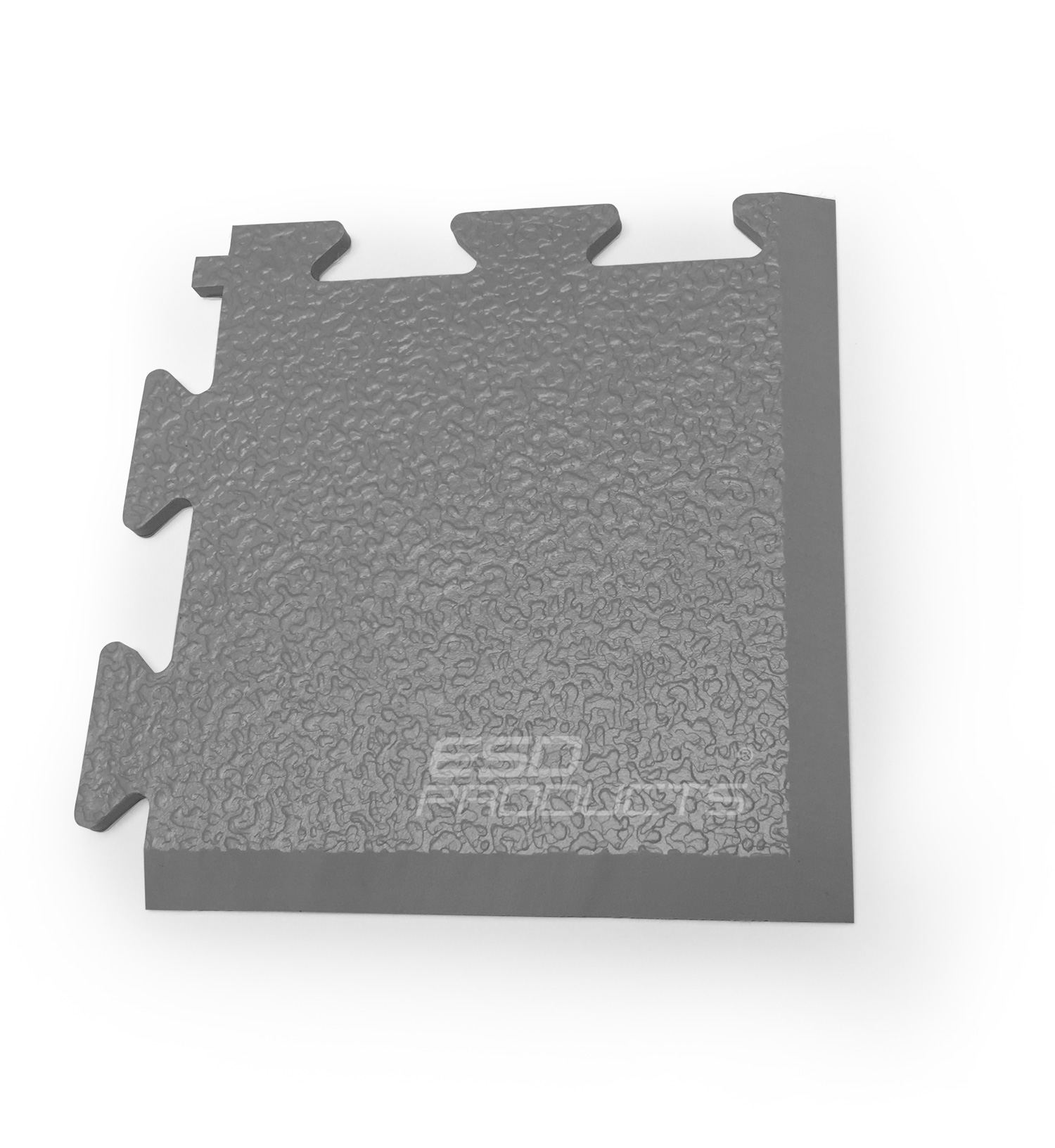

ESD Puzzle Corner INCAFLOOR Cut Milled Grey 140x140x5mm

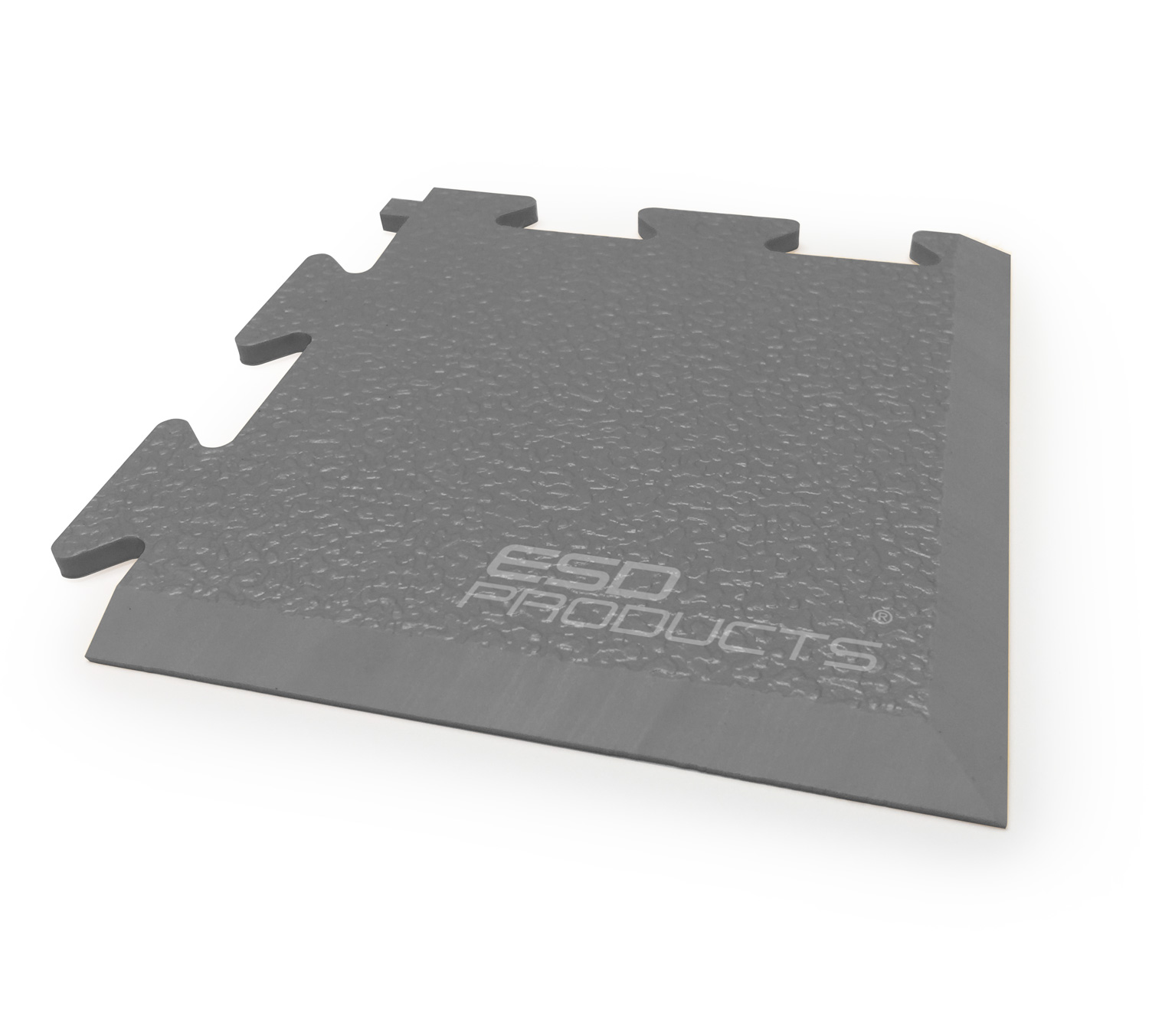

ESD Puzzle Corner INCAFLOOR Cut Milled Grey 140x140x5mm

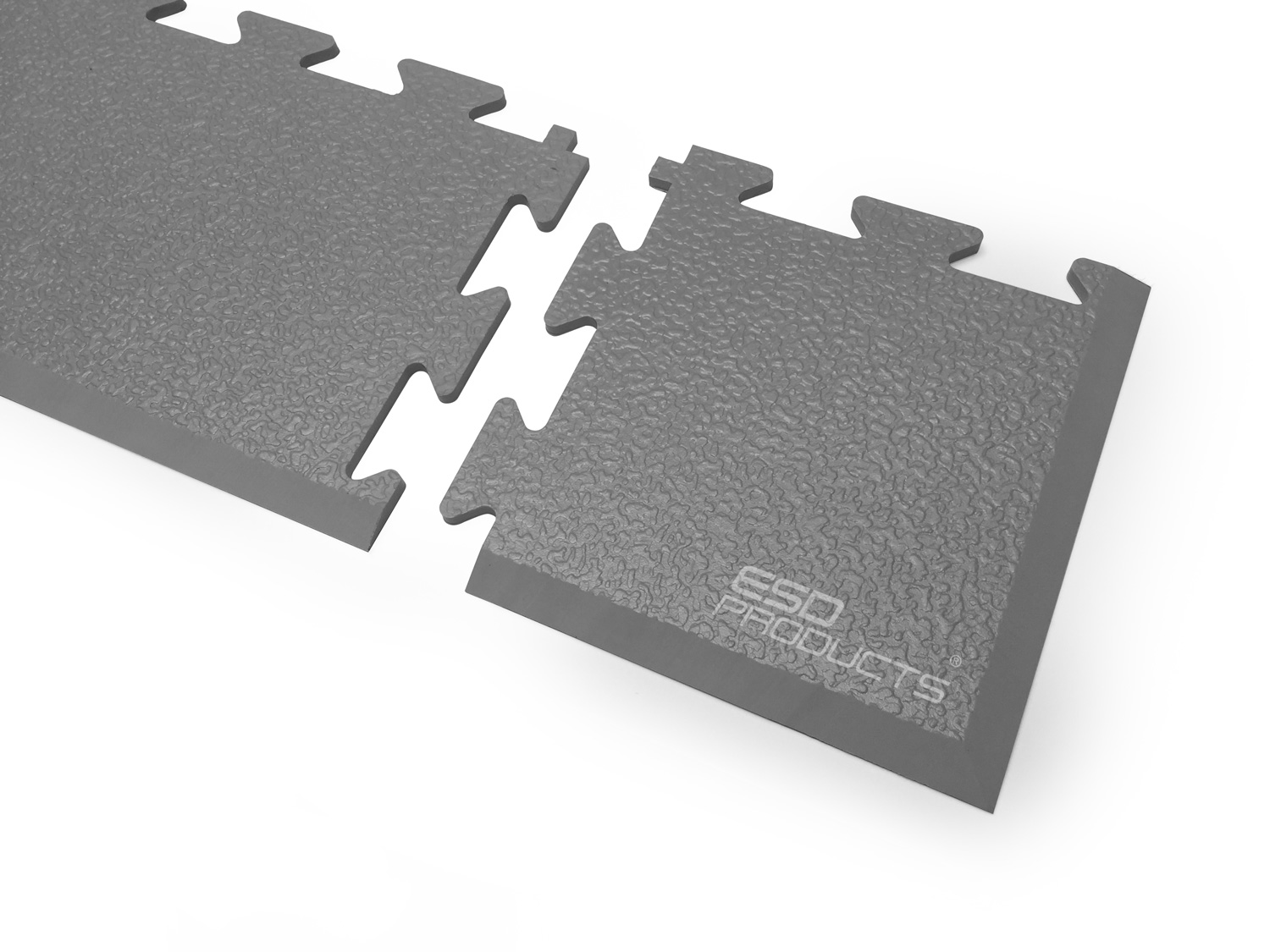

ESD Puzzle Corner Ramp Close-Up INCAFLOOR Cut Milled Grey 140x140x5mm

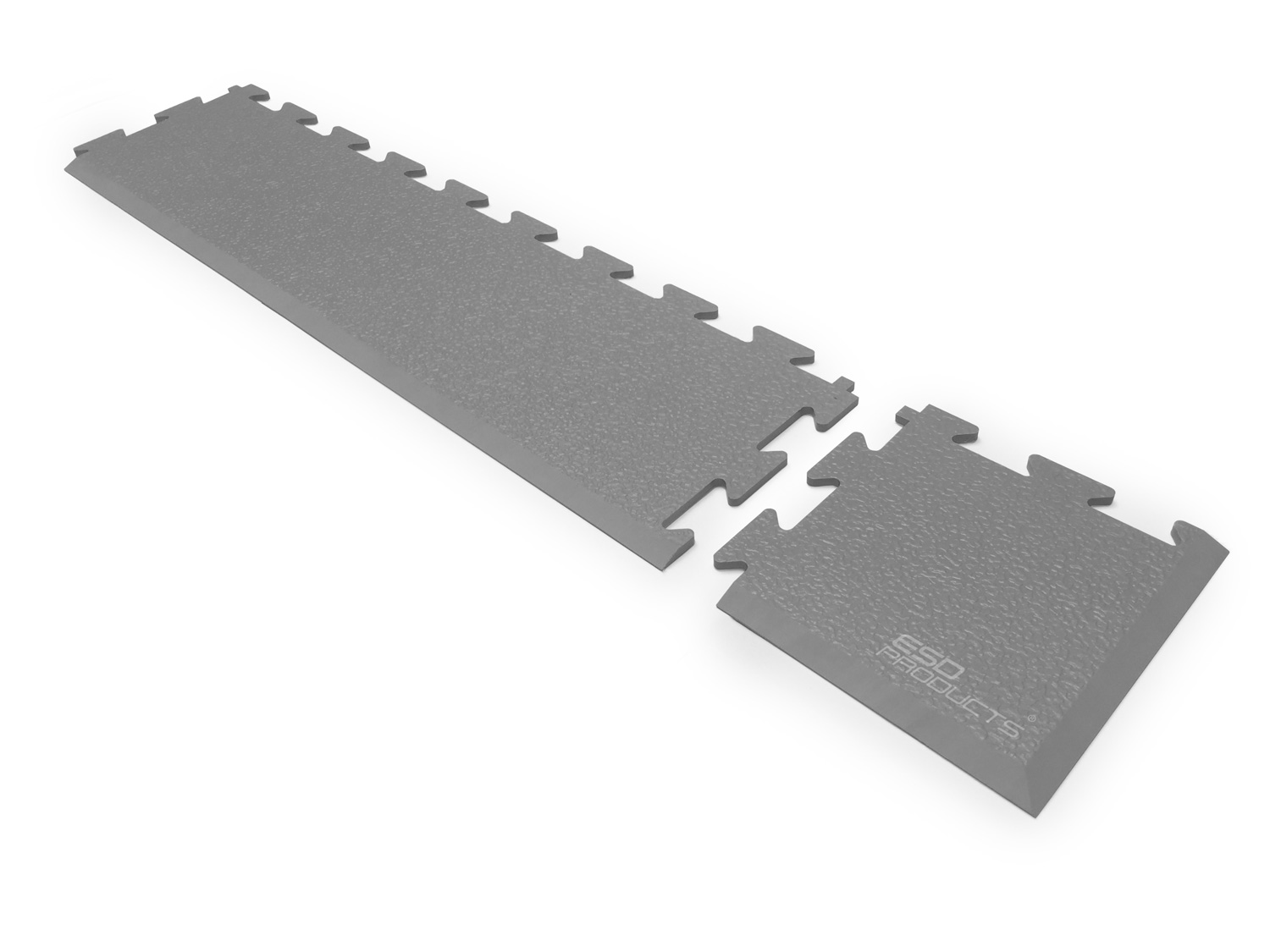

ESD Puzzle Corner Ramp INCAFLOOR Cut Milled Grey 140x140x5mm

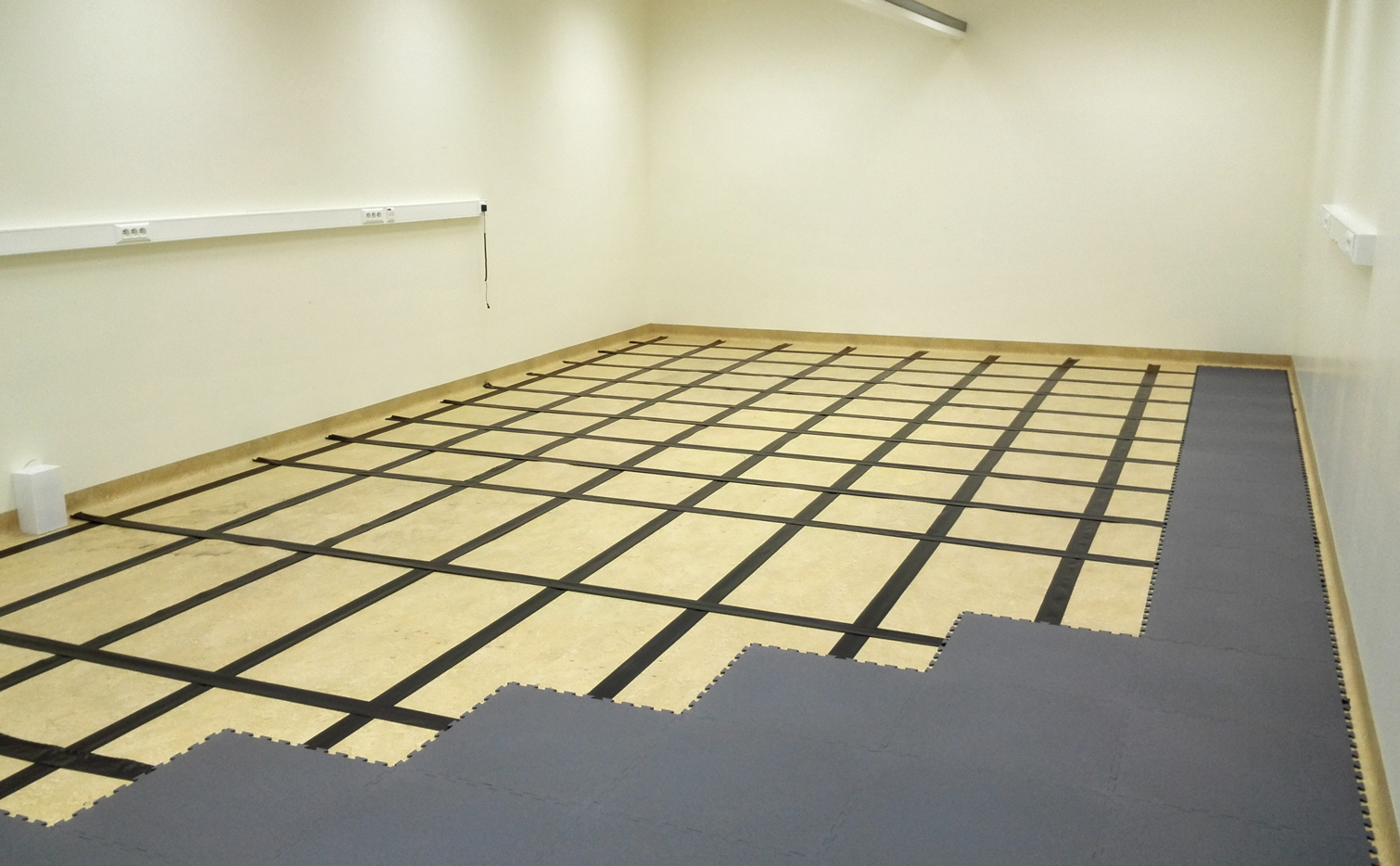

ESD Puzzle Tile LOCK-TILE INCAFLOOR  PICTO  Interlocking PVC Floor Tiles Installation

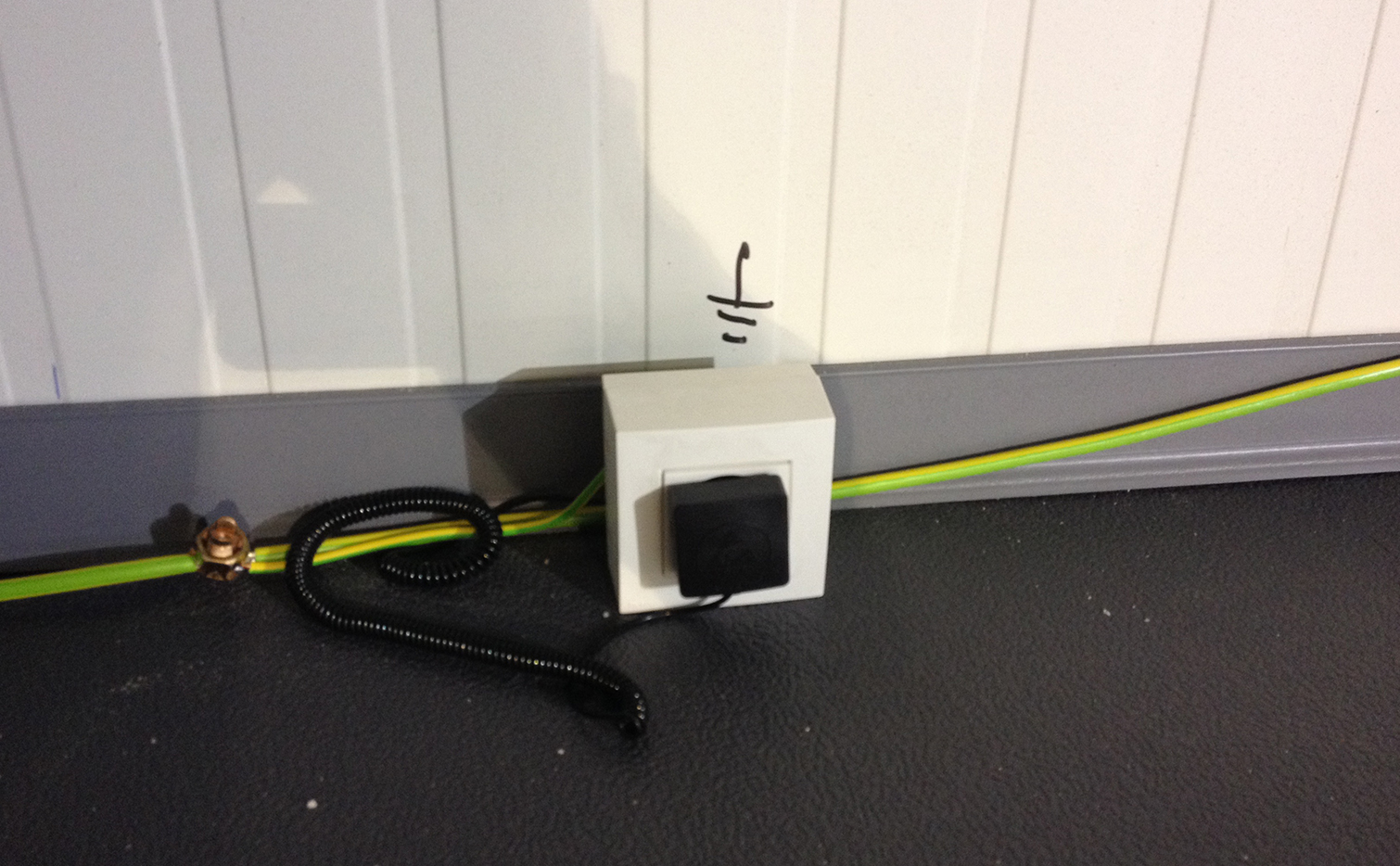

ESD Puzzle Tile LOCK-TILE INCAFLOOR PICTO Grounding_rew

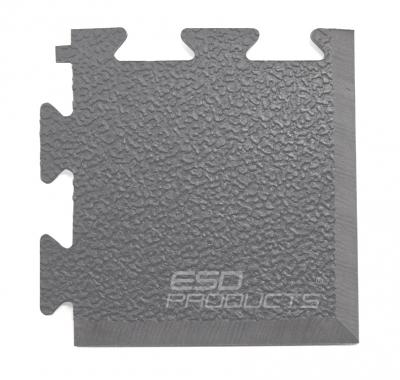

ESD Puzzle Corner | INCAFLOOR | Cut/Milled | Grey | 140 x 140 x 5 mm

215.P0608172302-INC-ESD
HS Code : 391810
Brand

17,33 € exc tax
Packaging Unit :

  Tell A Friend

AES INCAFLOOR PUZZLE CORNER ESD
*AES Incafloor Puzzle Corners are applicable for the AES ESD Incafloor Puzzle Tiles*

AES PUZZLE TILES ESD

The AES-Tile range of ESD (Electro Static Dissipative) is specifically manufactured to prevent electro static discharges from affecting or damaging electrical devices and for the safety of employees. All of our ESD products conform to IEC EN 61340-5-1-2010 and are available in Black & Dark Grey in Textured, Embossed & Waterjet Lasered.

THE DISSIPATIVE WORK FLOOR

AES Incafloor puzzle tiles are the ultimate work floor for companies or organisations where a conductive or antistatic floor is required.
Apart from the standard advantages of our AES Incafloor system, the AES tiles have excellent dissipative properties.
AES Incafloor tiles are ESD safe, with constant surface- and conductivity resistance. Contrary to most ‘antistatic’ floors, AES Incafloor tiles are not manufactured using carbon products or migrant antistatic.
Our reliable and patented technique includes adding (micro) metal fibres to the PVC compound.
AES tiles are available in a flat- and embossed structure and are suitable for any hard surface, even if slightly uneven.

AES_Correct Puzzle Tiles Flooring Guide to LOAD-LIMITS

Model
Incafloor
Floor Category
Antistatic ESD Puzzle Flooring
Floor Type
ESD Floor Puzzle Corner
Compound Material
High-Performance Polymer
Colour
Dark Grey
Surface Finish
Cut/Milled
Electrical Resistance Surface
3 x 104 Ohm < Rs < 3 x 105 Ohm (DIN EN 1815)
Ground Resistance
3 x 105 Ohm < Rg < 9 x 105 Ohm (DIN EN 1018)
Thickness
5 mm
Dimensions
140 x 140 mm
Weight
0.143 Kg
AES_Correct Puzzle Tiles Flooring Guide to LOAD-LIMITS
0.52 MB


All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
