ESD Printorama System 535 x 335 x 98 mm (LxWxH)

312.6410.100.992
HS Code : 39231090
Brand

59,14 € exc tax
Packaging Unit :

  Tell A Friend

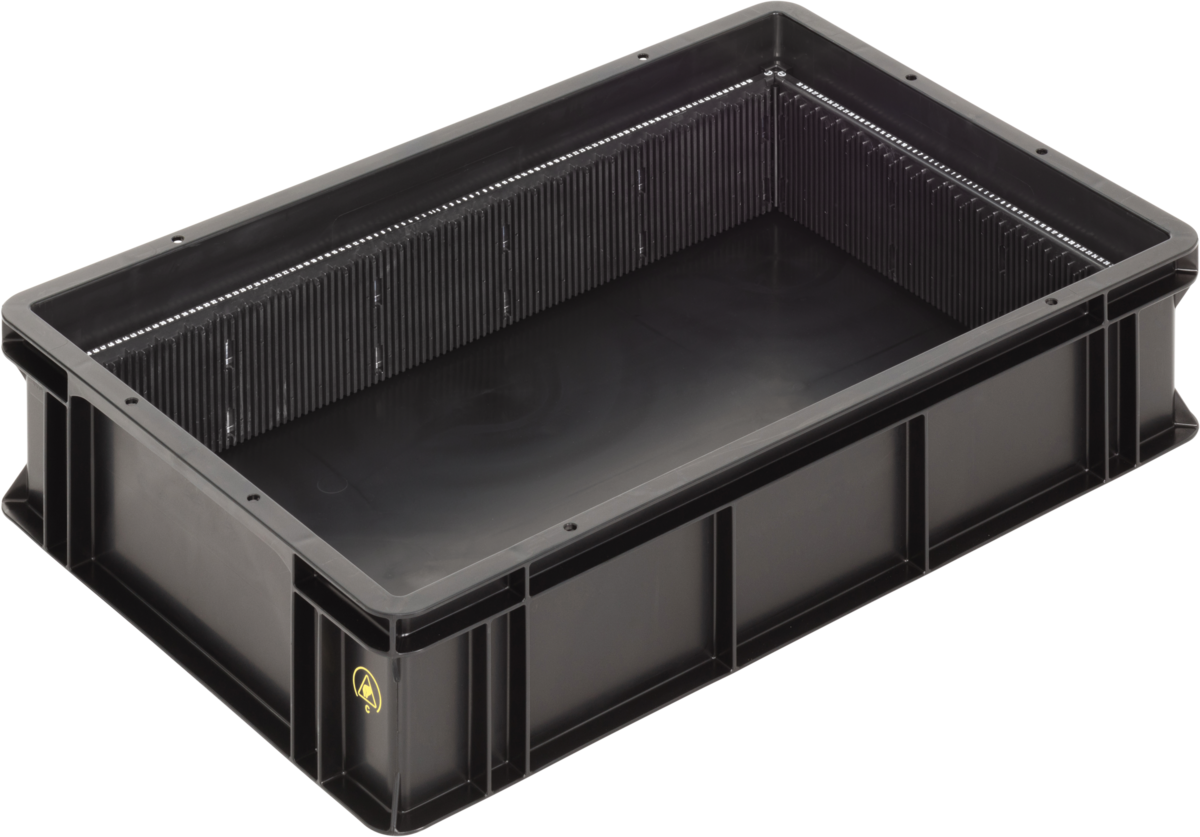

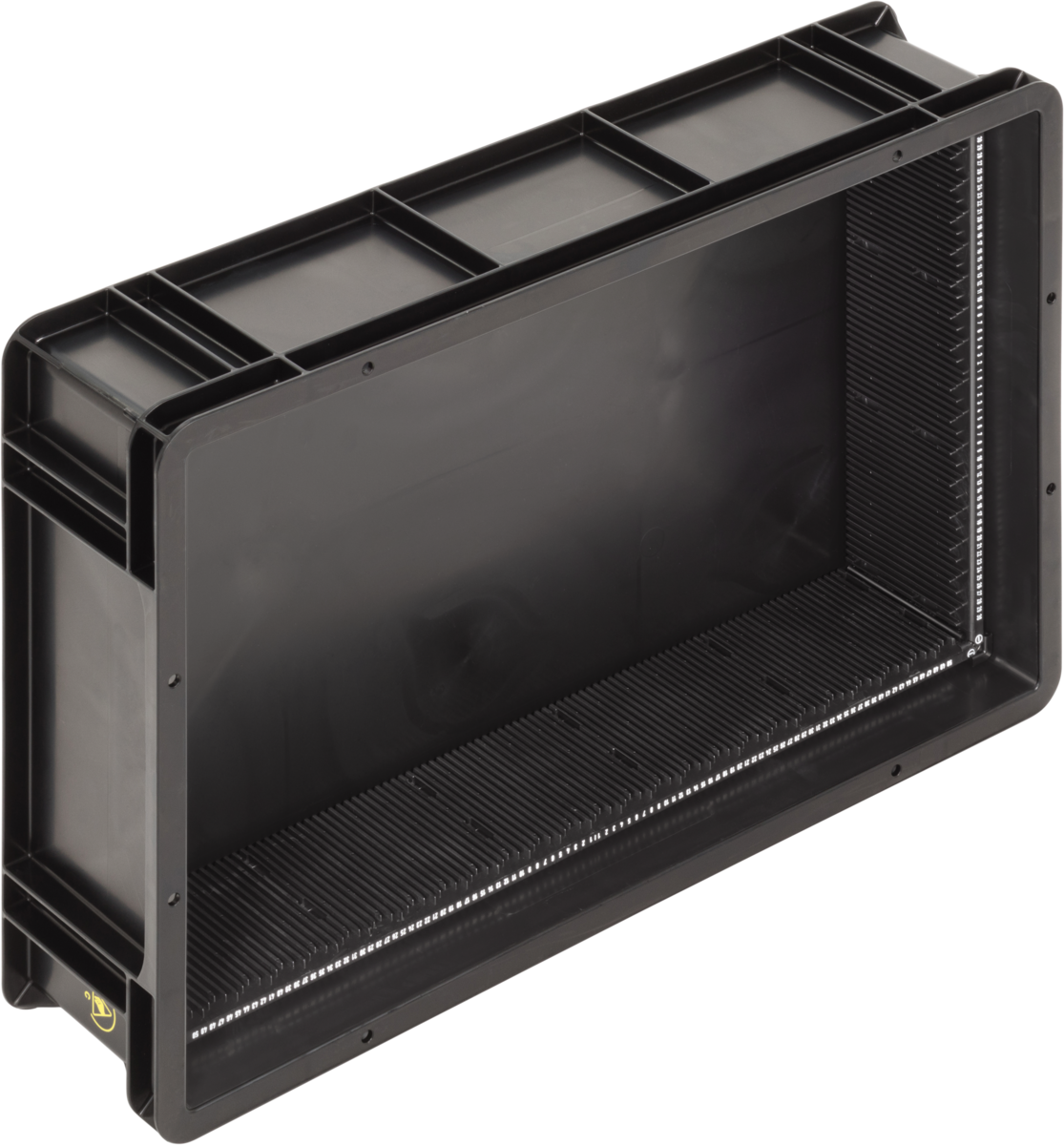

ESD Printorama System 535 x 335 x 98 mm fitted to container Printorama Secondo 600x400 mm suitable for container 600x400 mm.

The all-around Printorama system offers you support in the production, storage and transport of printed circuit boards. There are three finely adjustable slotted wall elements that are extremely flexible, can be combined in a customised manner and can meet every challenge. The system is adjustable to every size of printed circuit board, it is child"€™s play to assemble and ensures safe and reliable transport with ESD protection.

Slot dimensions:
Division = 5.06 mm
Width = 2.50 mm
Depth = 3.00 mm.
Reference catalog: p28.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
Printorama
Designation
Printorama Secondo 600 x 400 mm
Page
28
Set for base
535 x 335 mm
Height
98 mm
Outer Dimensions L x W x H
535 x 335 x 98 mm
Weight
1525 g
Material
PPC
Number per pallet
1
Stock item
Yes
Black esd
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
