ESD Printorama System 400 x 300 mm, Black (LxW)

312.4310.100.992
HS Code : 39231090
Brand

39,36 € exc tax
Packaging Unit :

  Tell A Friend

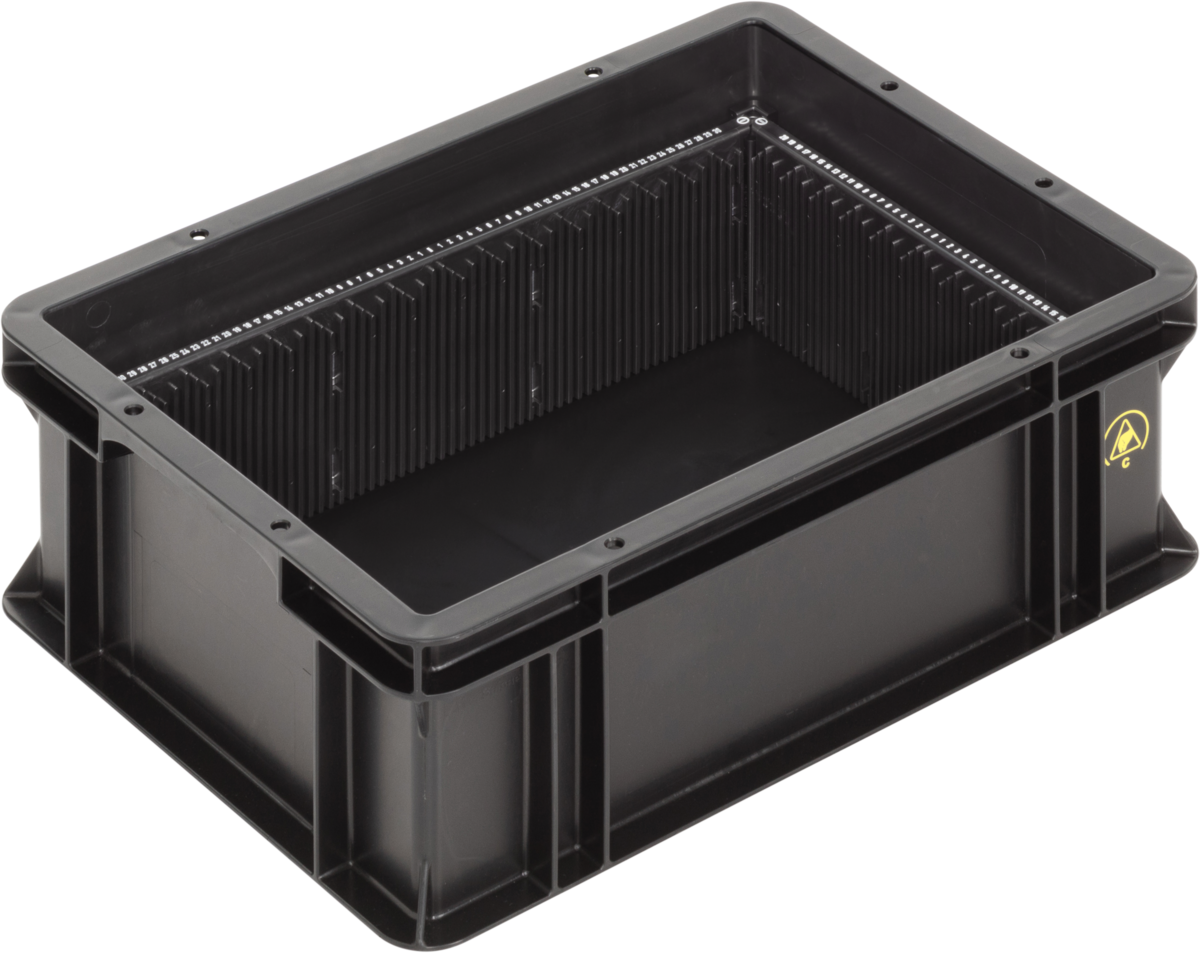

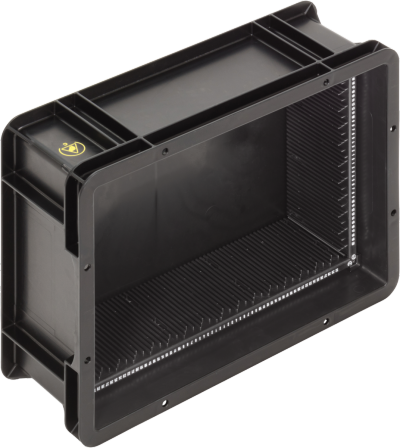

Anti-Static ESD Printorama System 400 x 300 (L x W) comprising of 2 partitions 400 and 300 + 4 Secondo profiles Printorama Secondo Frame set 400 x 300 mm incl. assembly instructions.

The all-around Printorama system offers you support in the production, storage and transport of printed circuit boards. There are three finely adjustable slotted wall elements that are extremely flexible, can be combined in a customised manner and can meet every challenge. The system is adjustable to every size of printed circuit board, it is child"€™s play to assemble and ensures safe and reliable transport with ESD protection.
Slot dimensions:
Division = 5.06 mm
Width = 2.50 mm
Depth = 3.00 mm.
Reference catalog: p28.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
Printorama
Designation
Printorama Secondo Frame set 400 x 300 mm
Page
28
Set for base
custom size
Height
custom size
Outer Dimensions L x W x H
custom size
Inner Dimensions L x W x H
custom size
Usable height
custom size
Stacking height
custom size
Weight
953 g
Material
PPC
Number per pallet
5
Stock item
Yes
Black esd
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
