ESD Printorama System 235 x 10 x 100 mm unassembled, loose Partition 400 T5.08(-) useable in containers with height in excess of 130mm type 4313 and 6413

Anti-Static-ESD-Antistatic-Partition-Divider-400-T5-for-Circuit-Board-Not-Assembled-for-Containers-3310.120.992_1004273_335x100x10_01
ESD
Anti-Static-ESD-Antistatic-Partition-Divider-400-T5-for-Circuit-Board-Not-Assembled-for-Containers-3310.120.992_1004273_335x100x10_01
Printorama_Secondo neckline FIX-Paar_01_DET
Printorama_Secondo_FIX-Paar_02_DET
PCBs ESD Container SGL-Norm Black PG18.1_Printorama_KL02
ESD Container SGL-Norm Black 600 x 400 x 278 mm Flat Base_BL_Printorama_01
Printorama_Secondo_Profil_DET
ESD-Partition-Divider-400-T5-for-Circuit-Board-Not-Assembled-for-Containers-3310.120.992_1004273_335

ESD Printorama System 235 x 10 x 100 mm (LxWxH)

312.3310.120.992
HS Code : 39231090
Brand

7,50 € exc tax
Packaging Unit :

  Tell A Friend

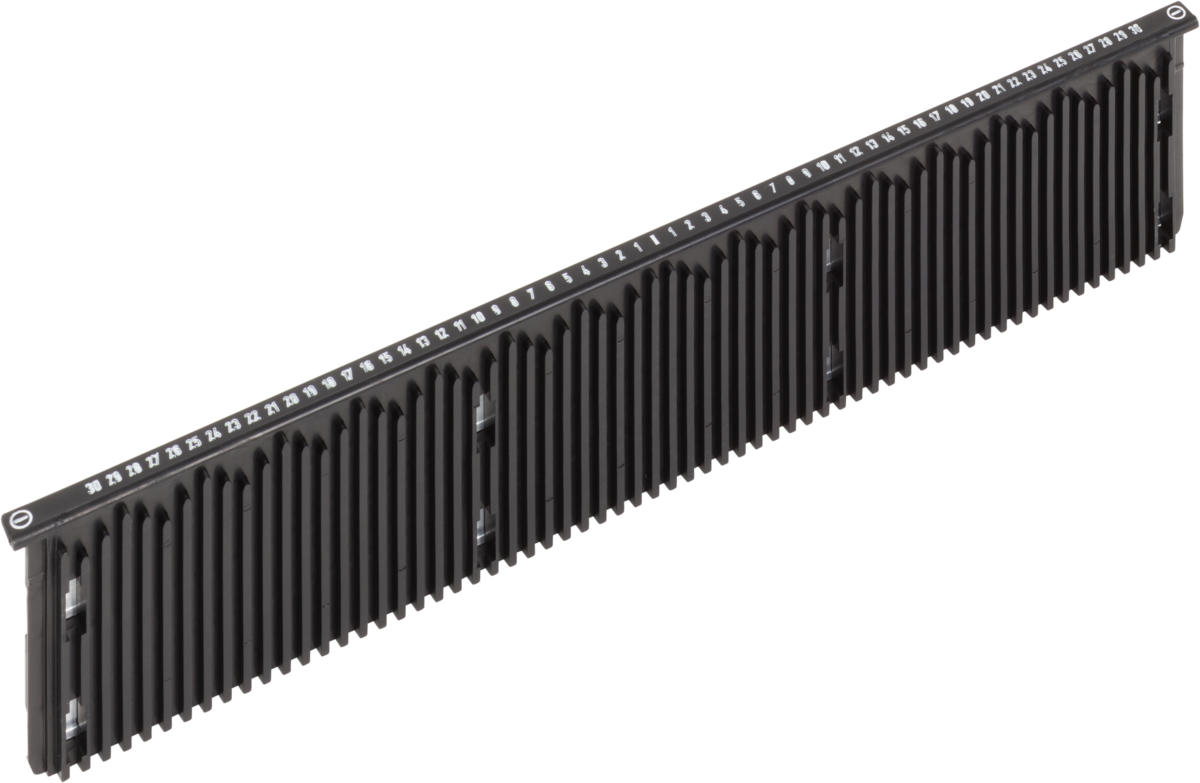

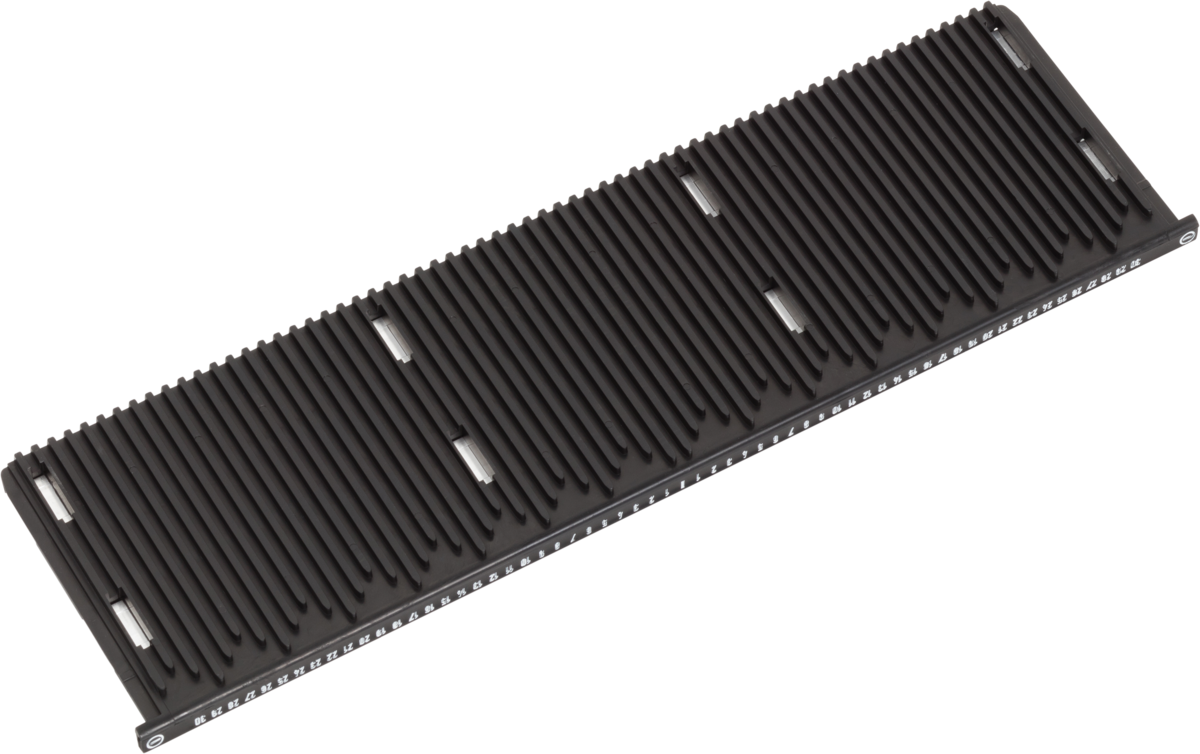

ESD Printorama System 235 x 10 x 100 mm.
Unassembled, loose Partition 400 T5.08(-) useable in containers with height in excess of 130mm type 4313 and 6413.
The all-around Printorama system offers you support in the production, storage and transport of printed circuit boards. There are three finely adjustable slotted wall elements that are extremely flexible, can be combined in a customized manner and can meet every challenge. The system is adjustable to every size of printed circuit board, it is child's play to assemble and ensures safe and reliable transport with ESD protection.
Slot dimensions:
Division = 5.06 mm
Width = 2.50 mm
Depth = 3.00 mm
Reference catalog: p28.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
Printorama
Designation
Partition 400 T5.08(-)
Page
28
Set for base
335 x 10 mm
Height
100 mm
Outer Dimensions L x W x H
335 x 10 x 100 mm
Weight
179 g
Material
PPC
Number per pallet
2752
Stock item
Yes
Black esd
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
