ESD Picking Bins Storage "ClassicBox" black: 175 x 100 x 75 mm

Anti-Static-ESD-Antistatic-ESD-CLASSICBOX_storage_bin_CB_ON_ REQUEST_PG24.1_Classicbox_Black_KL
ESD
Anti-Static-ESD-Antistatic-ESD-CLASSICBOX_storage_bin_CB_ON_ REQUEST_PG24.1_Classicbox_Black_KL
ESD-CLASSICBOX_storage_bin_CB_ON_ REQUEST_PG24_Classicbox_Black_GR

ESD Picking Bins Storage "ClassicBox" Black: 175 x 100 x 75 mm

312.1710.075.992
HS Code : 39231090
Brand

2,50 € exc tax
Packaging Unit :

  Tell A Friend

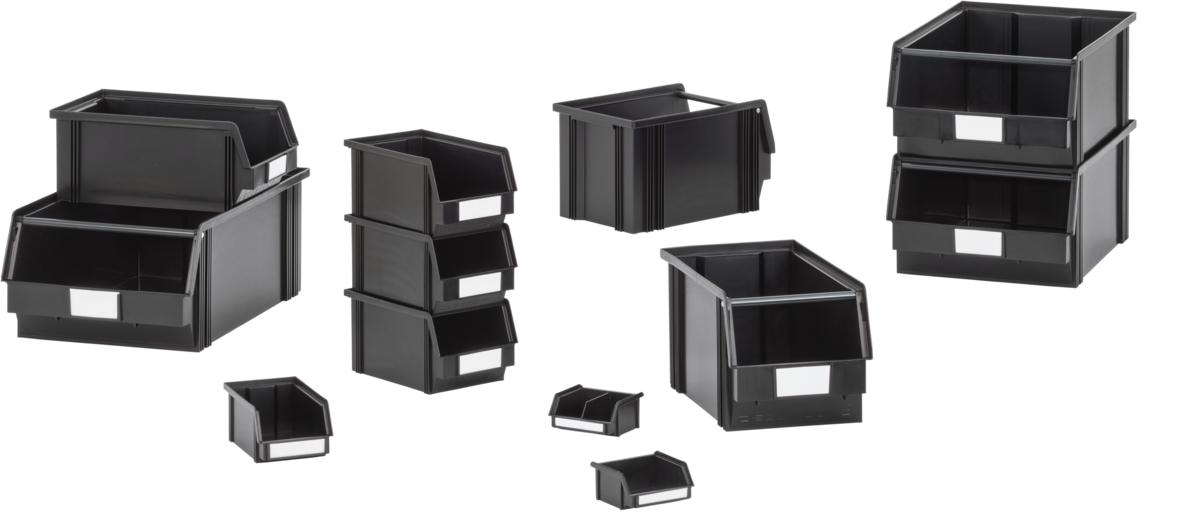

Anti-Static ESD Picking Bins Storage "ClassicBox": 175 x 100 x 75 mm, storage bin CB 5 MC.

These open ESD storage picking bins offer a clear View using the access opening. The high load- bearing ESD VISTA bins do not require any shelf space or shelves. With their clever snap system on a wall they can be combined in any desired manner with a simple hand movement. The antistatic ESD CLASSICBOX bins are perfect when using the Kanban method in ESD or for example when storing fasteners.
Special designs:
All products that are marked here as being non-stock items are available in a minimum order quantity of 500 pieces.
Reference catalog: p24.

• Blackline products offer ideal ESD protection

• ESD protection is particularly important where there are seasonal variations and low humidity.

• Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers

• IEC 61340-5-ff-tested and certified

• High impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C

• Continuous operating temperature from –20 ° C to + 80 ° C

• Conductive execution, dissipative to 10⁴ ohms / cm³

• Dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C

• Compressive stacking load up to 700kg for Euro-standard containers

• Base loading from 15 to 65 kg

Model
_
Catalog
Storage Bins
Designation
CLASSICBOX storage bin CB 5 MC
Page
24
Set for base
175 x 100 mm
Height
75 mm
Outer Dimensions L x W x H
175 x 100 x 75 mm
Inner Dimensions L x W x H
129 x 87 x 67 mm
Usable height
67 mm
Stacking height
67 mm
Load barring capacity
3 Kg
Volume (m3)
9 Ltrs
Weight
110 g
Base designation
flat closed
Sidewalls closed
Yes
Grip2
Yes
Material
PPC
Number per pallet
1120 / 40
Stock item
Yes
Black esd
Yes
Printing
Yes
Label
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
