ESD Insert containers Variobox H55 mm, Partition 1/10, 179 x 112 x 055 mm

312.1711.055.992

HS Code : 39231090

3,80 € exc tax

Packaging Unit :

Add To Cart

Add To WishList

Tell A Friend

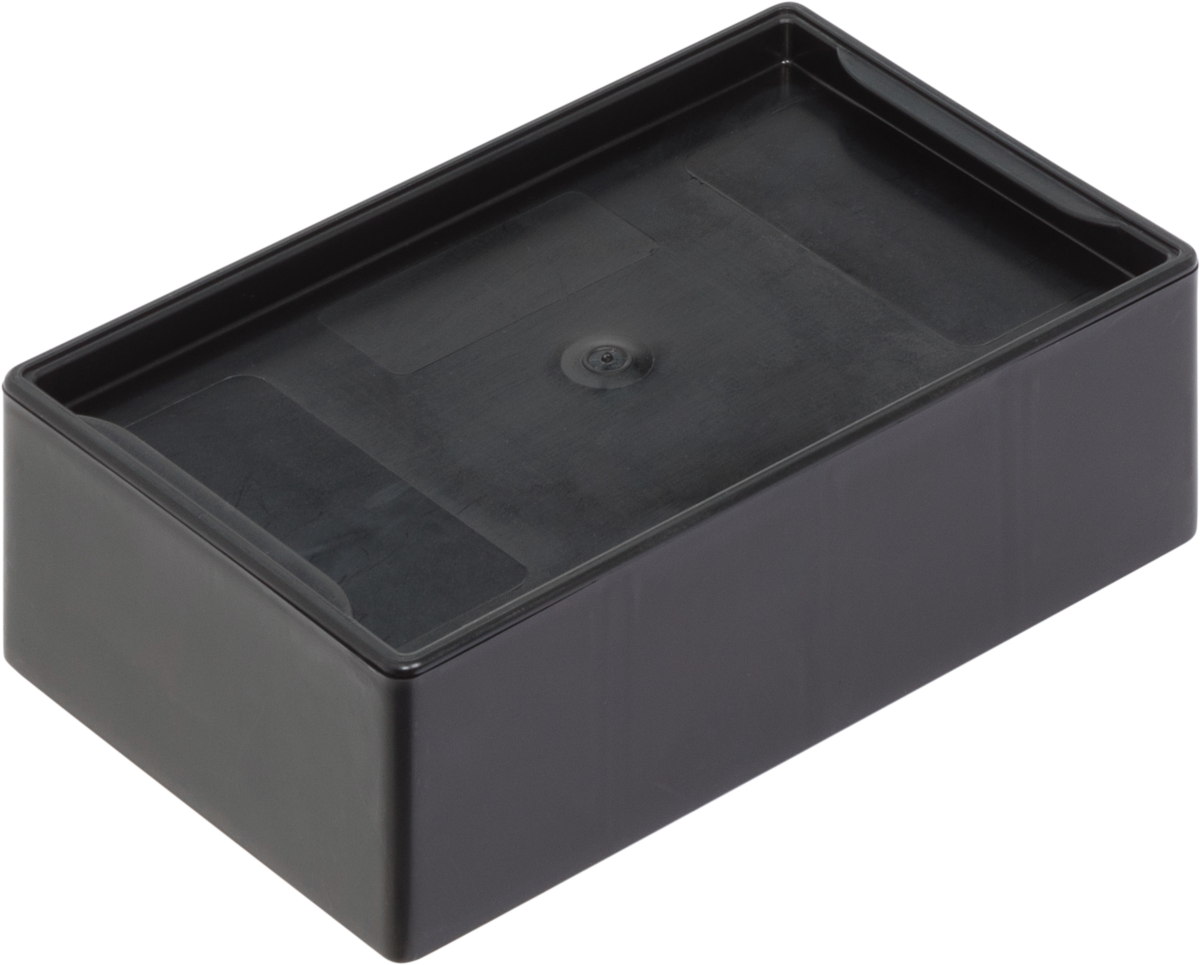

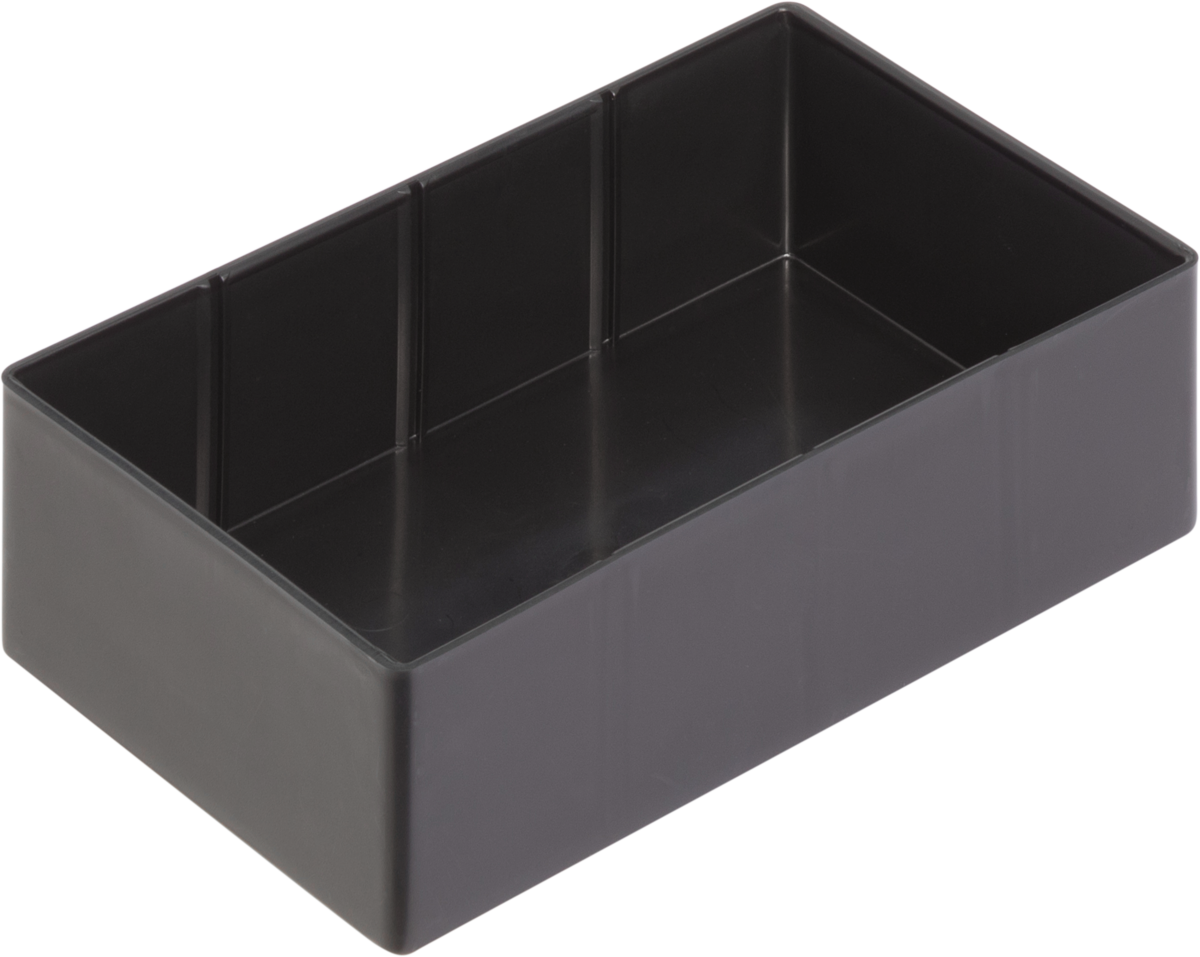

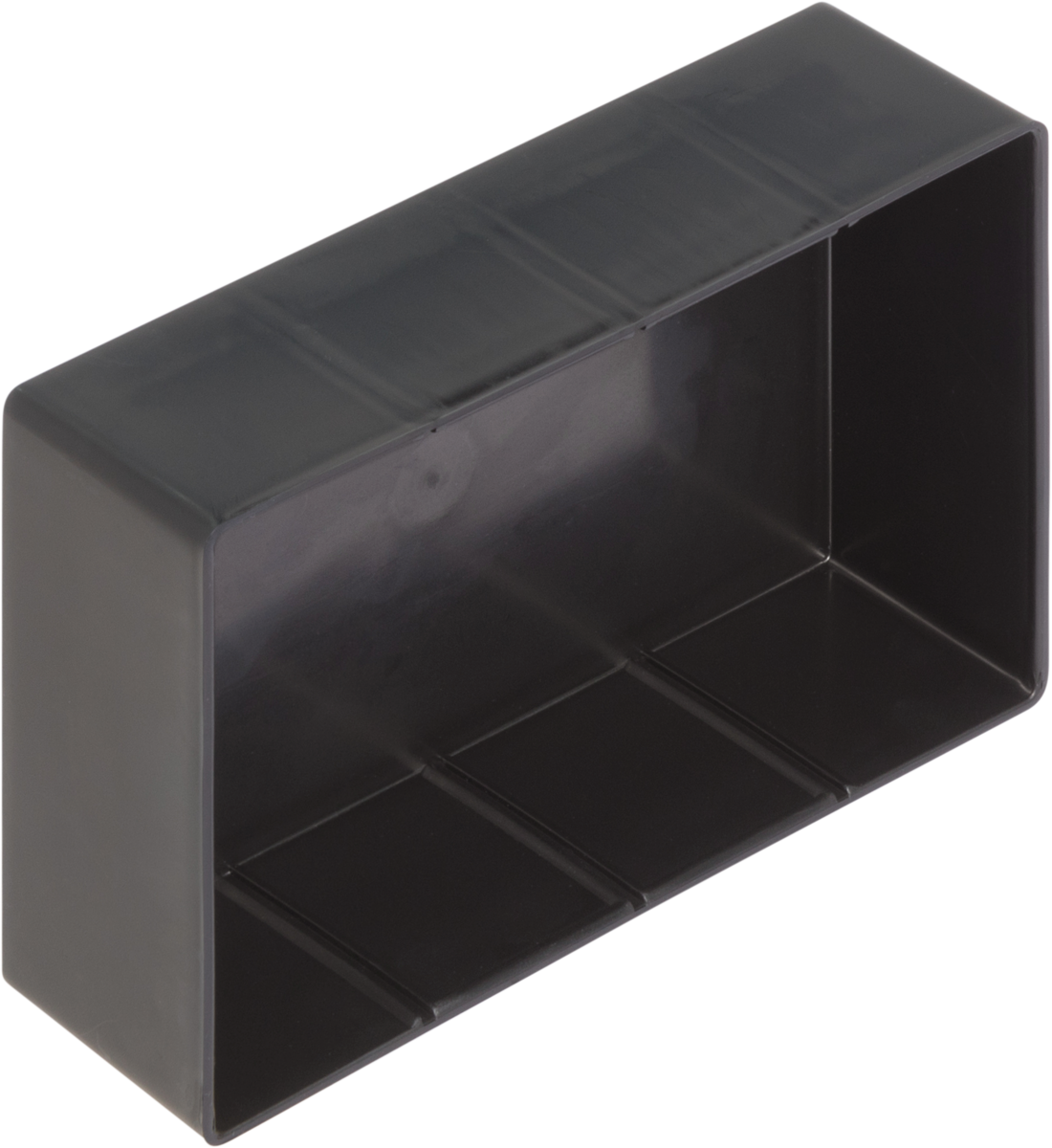

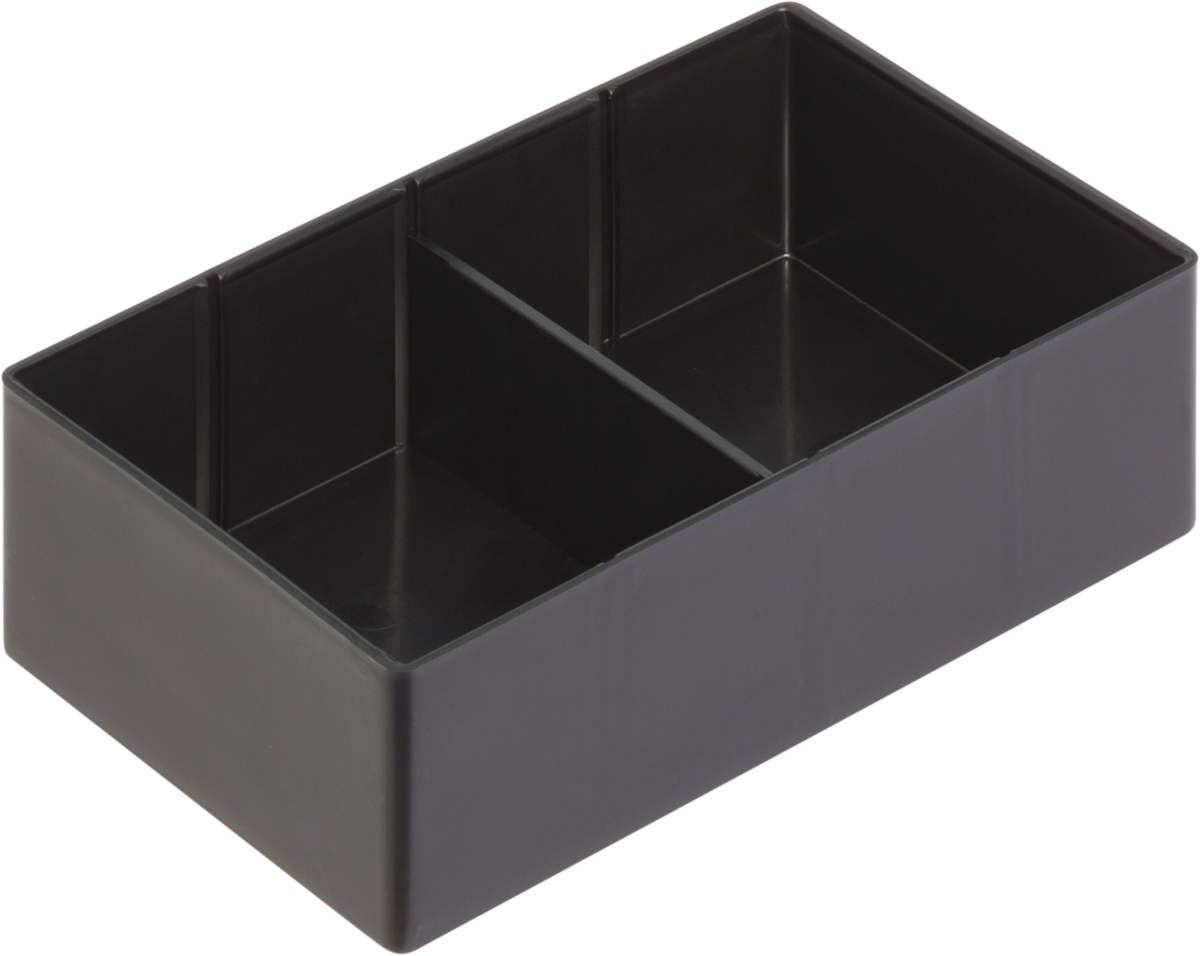

ESD Insert containers Variobox H55 mm, partition 1/10 mm with divider, size 179 x 112 x 55 mm, for container 600 x 400 mm.
The right application for each part:
Efficient organisation of small electronic parts and bulk material with variable compartment dimensions. The internal radius ensures that they can be easily emptied. The lobes on the base provide good sliding properties on production chutes and a firm footing on smooth surfaces. Each ESD container can be labelled separately.
Reference catalog: p54.

Product Description

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg

Technical Details

Model: _
Catalog: Insert containers
Designation: Variobox H55 mm
Page: 54
Divisions: 1/10 with divider
For container: 600 x 400 mm
Outer Dimensions L x W x H: 179 x 112 x 55 mm
Inner Dimensions L x W x H: 173 x 106 x 52 mm
Usable height: 55 mm
Volume (m3): 95 Ltrs
Weight: 110 g
Material: PPC
Number per box: 140
Stock item: Yes
Black esd: Yes

Product Files

291523072019 AES ESD Wez Product Catalog 2018 EN

291523072019_AES..

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
