ESD Insert containers Variobox H110 mm, Partition 1/8L, 274 x 087 x 110 mm

312.2708.110.992
HS Code : 39231090
Brand

4,98 € exc tax
Packaging Unit :

  Tell A Friend

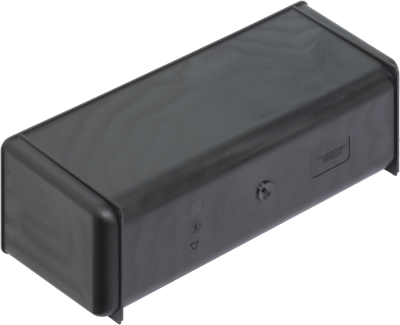

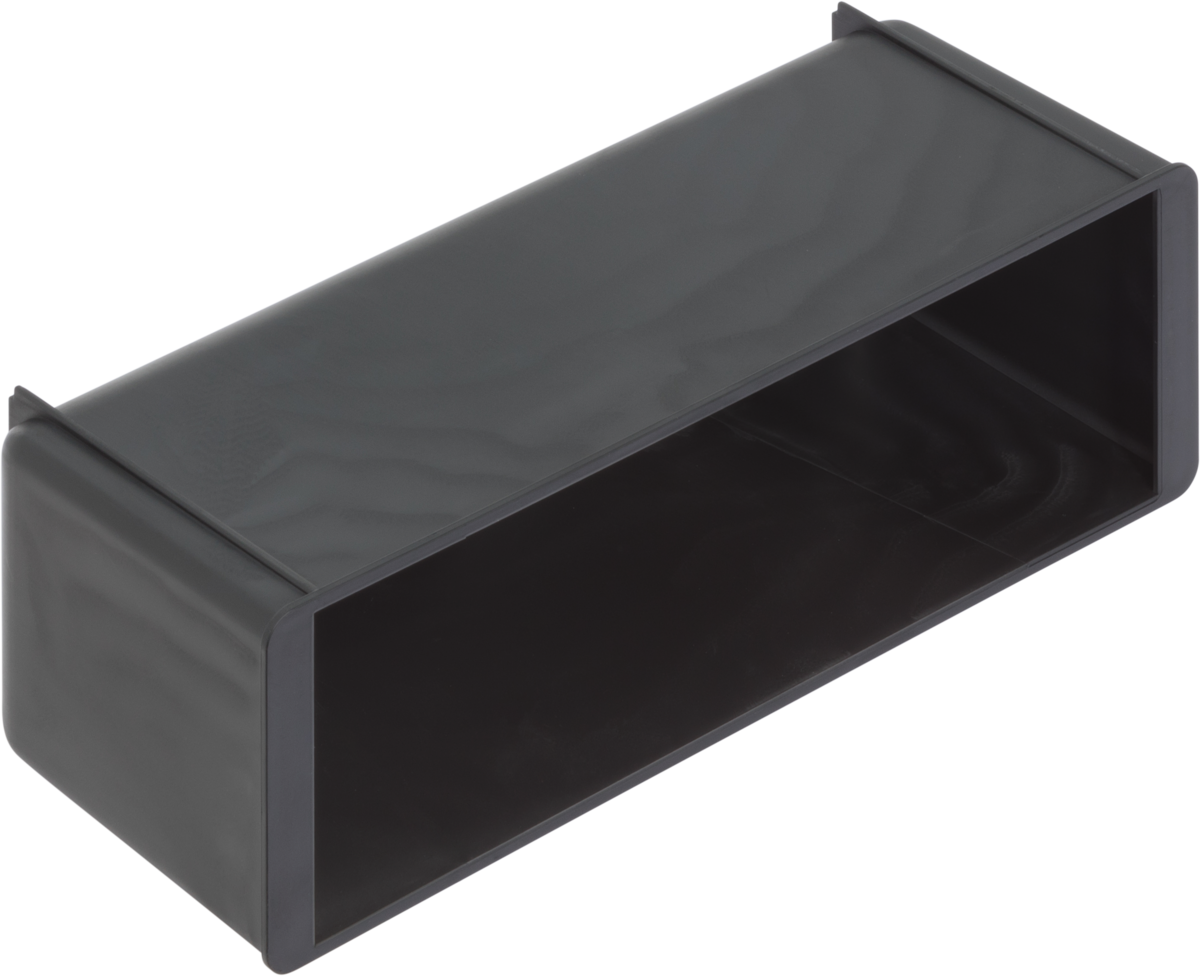

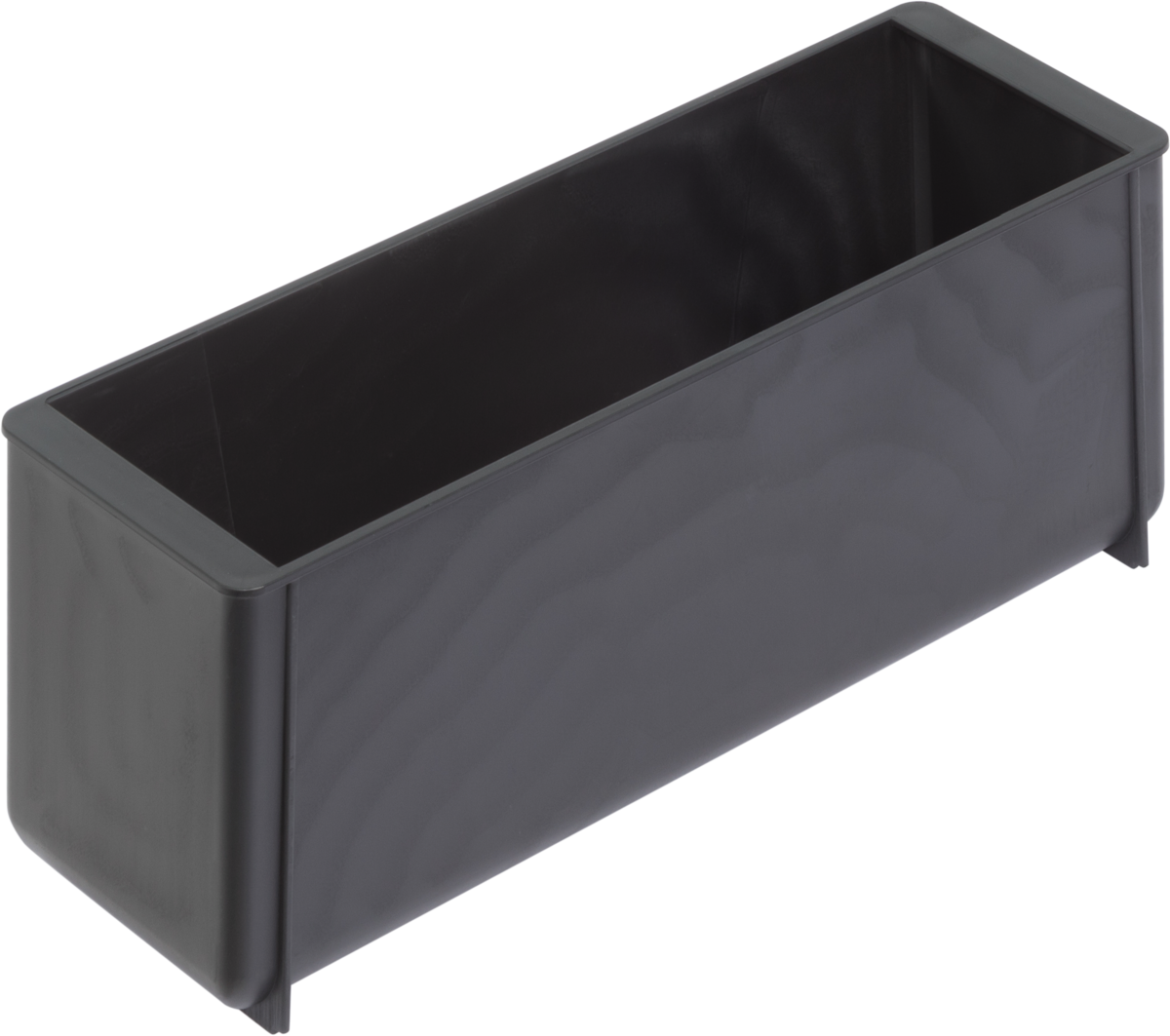

ESD Insert containers Variobox H110 mm, partition 1/8L (lengthwise), size 274 x 87 x 110 mm, for container 600 x 400 mm.
The right application for each part:
Efficient organisation of small electronic parts and bulk material with variable compartment dimensions.
The internal radius ensures that they can be easily emptied.
The lobes on the base provide good sliding properties on production chutes and a firm footing on smooth surfaces.
Each ESD container can be labelled separately.
Reference catalog: p54.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
Insert containers
Designation
Variobox H110 mm partition 1/8L
Page
54
Divisions
1/8 lengthwise
For container
600 x 400 mm
Outer Dimensions L x W x H
274 x 87 x 110 mm
Inner Dimensions L x W x H
268 x 82 x 105 mm
Usable height
105 mm
Volume (m3)
23 Ltrs
Weight
200 g
Material
PPC
Number per box
48
Stock item
Yes
Black esd
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
