    ESD Access Control System - ESD Footwear & Wrist Strap Tester with Dual Foot Electrode + RFID Reader & PC Monitor
    Back

    ESD Footwear Wrist Strap Tester with Dual Foot Electrode Access Control System RFID Reader PC Monitor Access Control System 473 AIJGO 31LB ALU MON AES 2_rew
    ESD
    ESD Footwear Wrist Strap Tester with Dual Foot Electrode Access Control System RFID Reader PC Monitor Access Control System 473 AIJGO 31LB ALU MON AES 2_rew
    ESD Footwear Wrist Strap Tester with Dual Foot Electrode RFID Reader PC Monitor Access Control Syste

    ESD Footwear & Wrist Strap Tester with Dual Foot Electrode | RFID Reader | PC Monitor

    472.AIJGO-31LB/ALU/MON
    HS Code : 90318080
    Brand
    4.460,56 € exc tax
    Packaging Unit :
      Add To Cart
      Add To WishList
      Tell A Friend

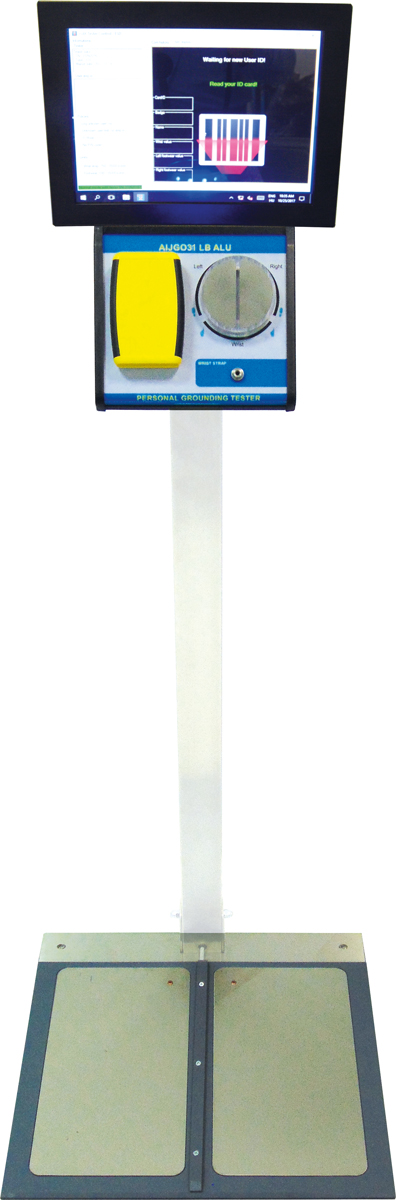

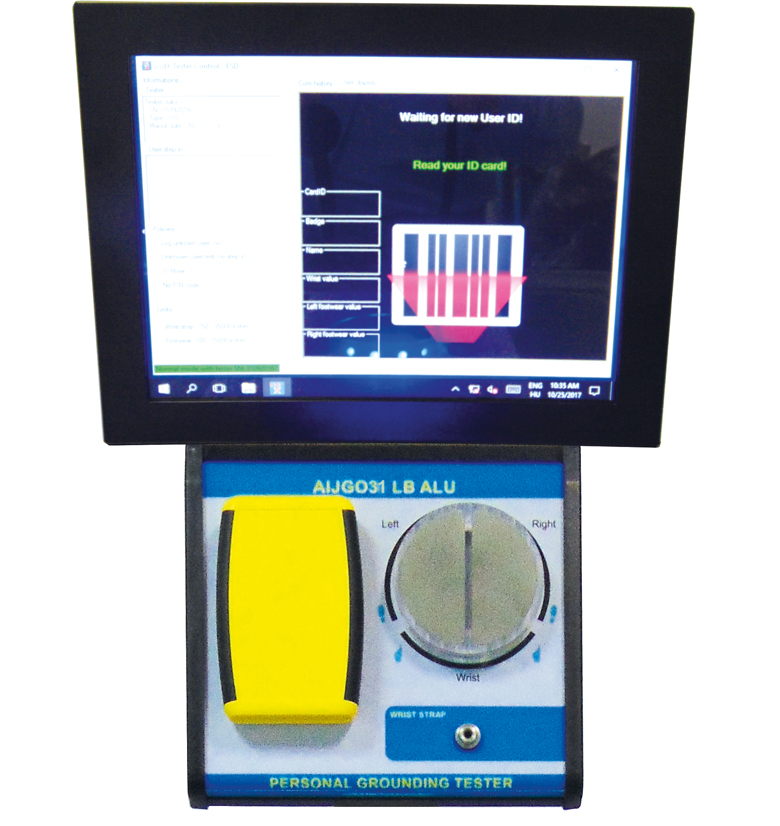

    ESD FOOTWEAR & WRIST STRAP TESTER WITH DUAL FOOT ELECTRODE + RFID READER + ALL IN ONE PC + MANAGEMENT SOFTWARE + LIGHT BAR & COMFORT

    ESD Shoe & Wrist strap tester AES AIJGO-31LB/ALU is an easy usable test device with LIGHT BAR & COMFORT system to entrance of EPA area.

    * The Management Software has to be ordered together with the AES AIJGO-31LB/ALU but if more testers are con-nected a network in this case please do not hesitate to contact us with your network plan for a quotation!

    MAIN PROPERTIES
    * Footwear & Wrist Strap Tester for ESD area entrance
    * LIGHT BAR system with sound to signal for the pass and faulty test, results separately (Wrist Strap - Left foot - Right foot)
    * Both foot and wrist strap testing at the same time
    * Dual foot electrode to test the right and left foot separately
    * Compliance with IEC 61340-5-1 and ANSI/ESD S20.20

    Technical Details
    Model
    AIJGO-31LB/ALU/MON
    Tester Category
    ESD Footwear & Wrist Strap Tester
    Tester Type
    ESD Footwear & Wrist Strap Tester with Dual Foot Electrode + RFID Reader & PC Monitor
    Test Selector
    Only footwear testing or footwear and wrist strap combined testing
    Footwear Resistance Limits
    100 KΩ - 35 MΩ/100 MΩ
    Wrist Strap Resistance Limits
    750 KΩ - 35 MΩ
    Test Voltage
    100V
    Wrist Strap Connection
    Combined connection possibility, 4 mm banan plug or 10 mm snap-fastener
    Relay Output To Open Entrance Gate
    0,5A/60V
    Operation System
    Windows 10 Embedded
    PC Connection
    RS 232
    Power Supply
    12V DC
    Dimensions
    215 x 195 x 65 mm
    Weight
    65 Kg
    Product Files
    pdf
    AES ESD Access Control Catalog Equipment 2018
    AES ESD Access C..
    2.33 MB
    pdf
    AES ESD Access Control Catalog User Guide 2018
    AES ESD Access C..
    1.81 MB
    pdf
    AES ESD Access Control Entrance System LIGHT BAR COMPLEX ESD
    AES ESD Access C..
    10.85 MB
    pdf
    AES ESD Access Control Entrance System Test Procedure
    AES ESD Access C..
    3.68 MB


    All ESD products fulfill the IEC 61340 standards.
    We believe all the information in these pages including technical data to be reliable.
    However we make no warranties expressed or implied and assume no liability regarding any use of this information.
