ESD Dividers / Separators Divider H 200 mm L 600 mm divison 73mm 558x200x3 mm

312.5620.003.992

HS Code : 39231090

8,02 € exc tax

Packaging Unit :

Add To Cart

Add To WishList

Tell A Friend

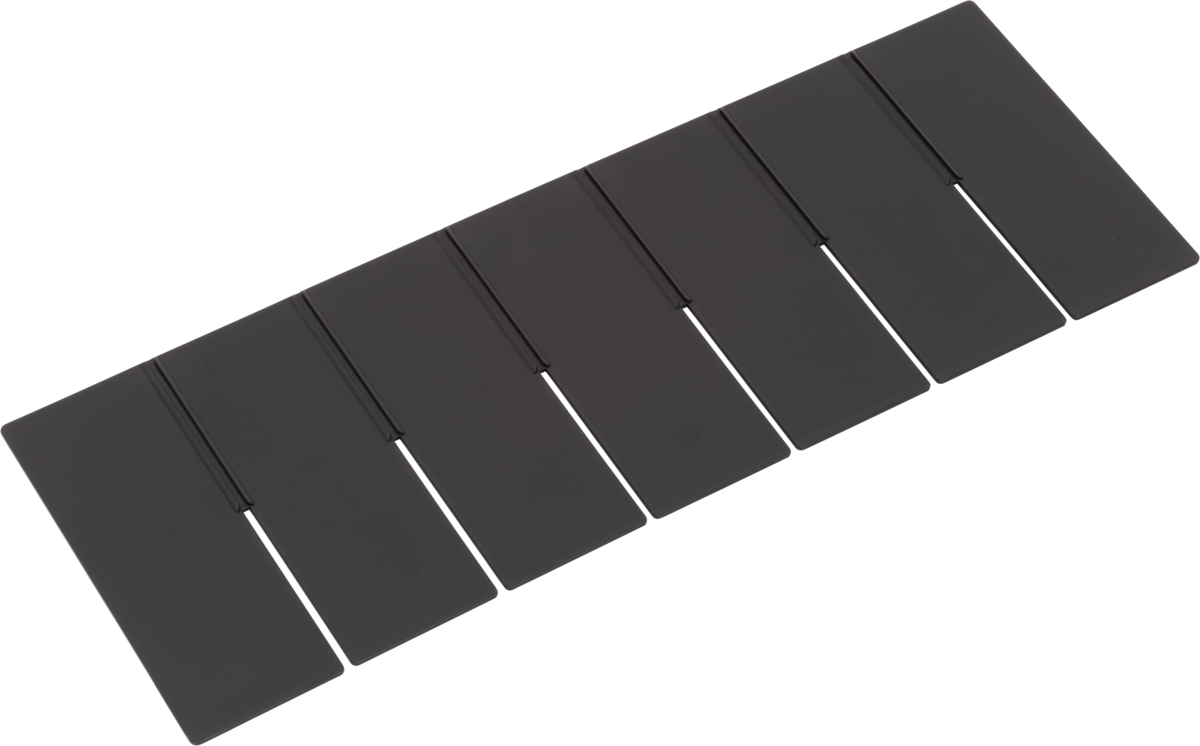

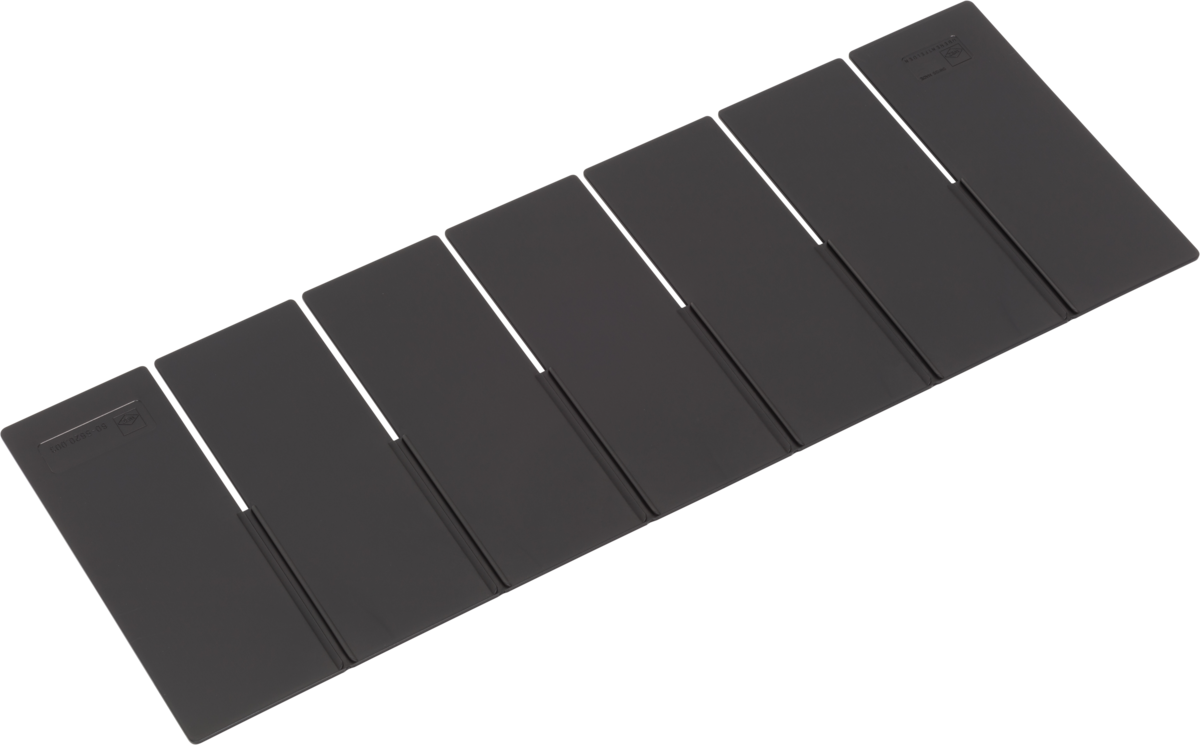

Anti-Static ESD Dividers / Separators Divider, Black, H 200 mm L 600 mm divison 73mm 558 x 200 x 3 mm.
ESD Dividers:

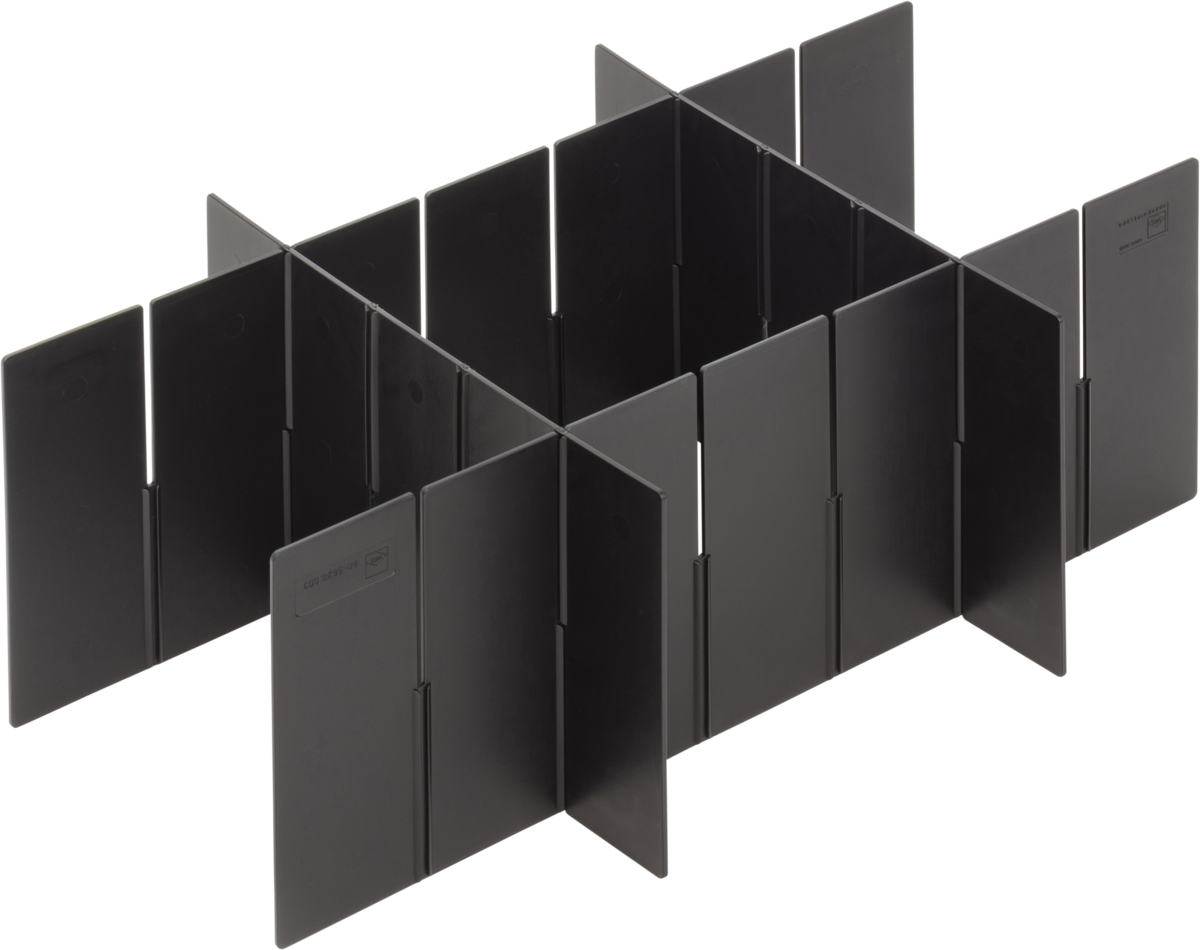

Our ESD safe dividers are flexible partitions for customized use that keep containers tidy.
Due to the snap-in feature, the separating webs stay tightly together, even during cleaning or when they are re- moved.
The robust construction prevents sagging.
Rounded edges and guide grooves make them easy to handle.
Reference catalog: p52.

Product Description

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg

Technical Details

Model: _
Catalog: Dividers
Designation: Divider H 200 mm L 600 mm
Page: 52
Height: 200 mm
Outer Dimensions L x W x H: 558 x 200 x 3 mm
Weight: 351 g
Material: PPC
Number per box: 70
Stock item: Yes
Black esd: Yes

Product Files

291523072019 AES ESD Wez Product Catalog 2018 EN

291523072019_AES..

All ESD products fulfill the IEC 61340 standards.
