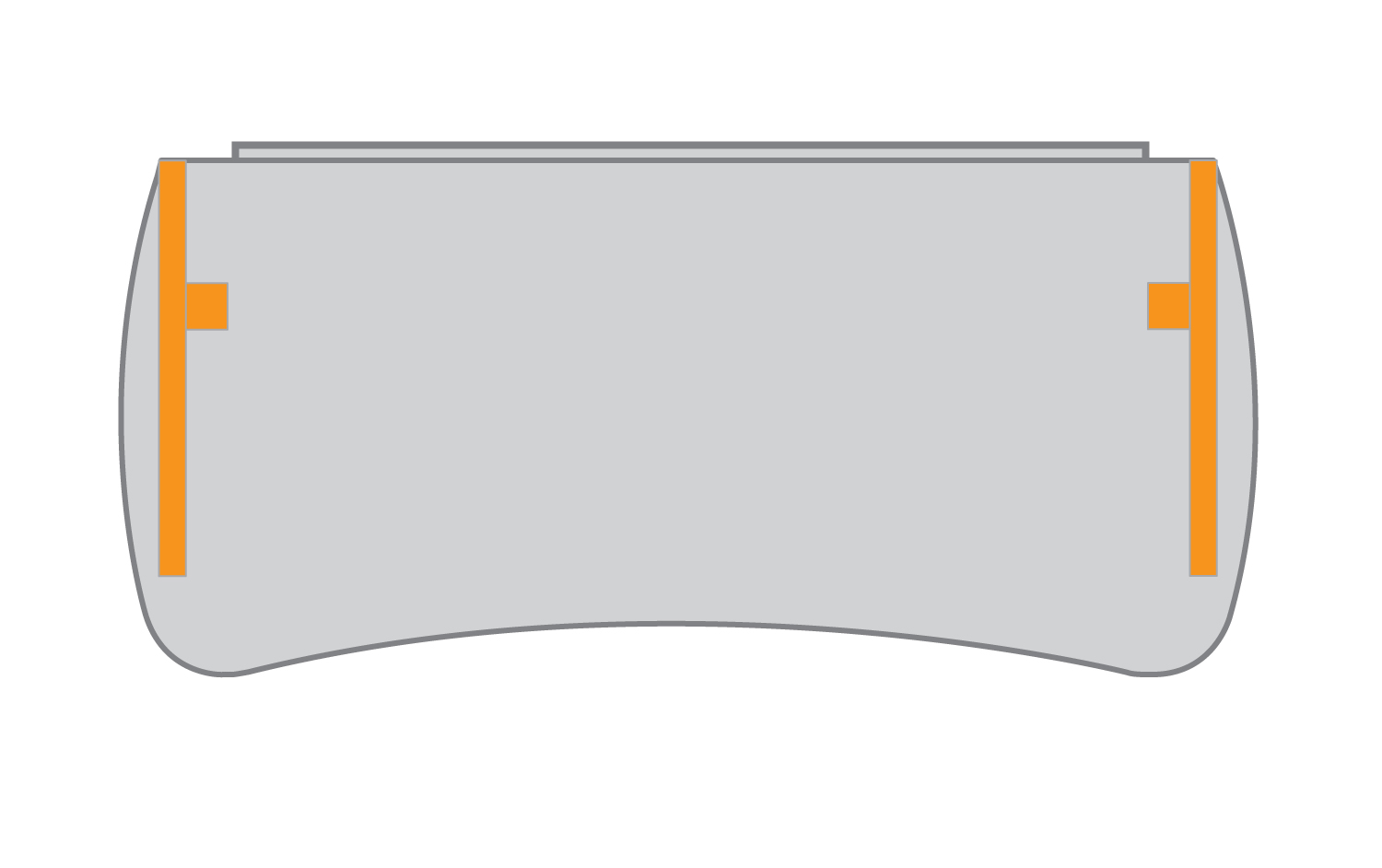

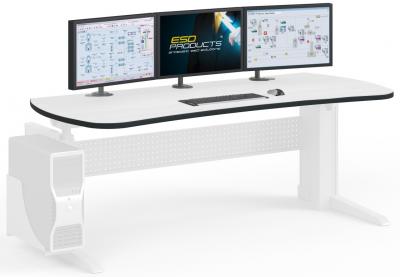

ESD Curved Working Surface VC-E | 2200 x 900 mm

200.04.265.037B-M

AES ESD Working Surfaces VC-E | Curved
* Single table
* Height adjustment range: 650 mm to 1250 mm
* Only usable in combination with Elicon VC-E Side Sections

Loading Capacity
*1200 N (static surface load)
Material / Finish
* Tabletop: Three-layer particle board FP/Y E1 variant, fire protection class B2
* Tabletop cover: High pressure plastic laminate (HPL)
* Edging: ABS
* Stabilizer, cable trough and rear panel
* Steel panel, powder-coated

Color Combination * Tabletop: A RAL7035 Light gray * Edging: Black gray * Sheet metal parts: RAL9006 White aluminium

Supply Schedule * 1 working surface with horizontal cable duct * 1 control unit for electrical height adjustment * 1 energy chain * 1 rear panel, bottom

How Supplied * Preassembled, flat packaging
