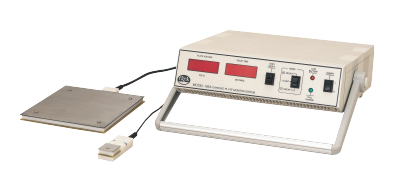

ESD Charged-Plate Monitor | Model 156A
Back

Roll over and scroll on image to zoom

ESD Charged-Plate Monitor | Model 156A

400-156A-CE

HS Code : 9030.33.38.00

3.620,24 € exc tax

Packaging Unit :

Add To Cart

Add To WishList

Tell A Friend

ESD Charged-Plate Monitor with F5054R Adapter and without Ion Plate

Technical Details

Model: Model 156A
Tester Category: ESD Test Equipment
Tester Type: ESD Charged-Plate Monitor
Measurement Range: 0 to ±1100 V DC or peak AC
Small Signal Bandwidth: 1kHz (-3dB)
Large Signal Bandwidth: DC to 10 Hz
Decay Mode Thresholds: Programmable from 1 to ±1000 V in 1V increments. Accurate within ±1V of programmed voltage.
Offset Voltage: ±10mV
Accuracy: ±0.1% (Full Scale)
Output Monitor: 1/200th of the plate voltage
Output Noise: 10mV rms
Temperature Range: 5°C to 35°C
Relative Humidity: To 80%RH, non-condensing
Power Supply: Built-in rechargeable battery
Usage: 8 hours
Dimensions: 83 x 318 x 280 mm
Weight: 2 Kg

Product Files

ESD Test Equipment Brochure AES

ESD Test Equipme..

5.80 MB

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
