ESD Charge Plate Monitor

815-13S0012-CPM

HS Code : 90303300

The universal Charge Plate Monitor can be used to measure varios electrostatic potentials and fields. Different measuring heads, which can be mounted in a few simple steps, allow the following measurement modes:

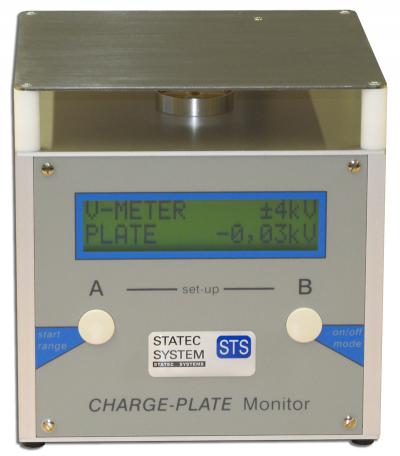

Charge Plate Monitor for periodic checking of ionizers (discharge time and offset voltage) or for extended product qualification.
• Measurements: ±100V, ±400V, ±1000V, ±4000V
• Automatic test procedure for complete checking of ionizers
• Justable start & stop potential for discharge time measurement and adjustable time interval for offset voltage measurements

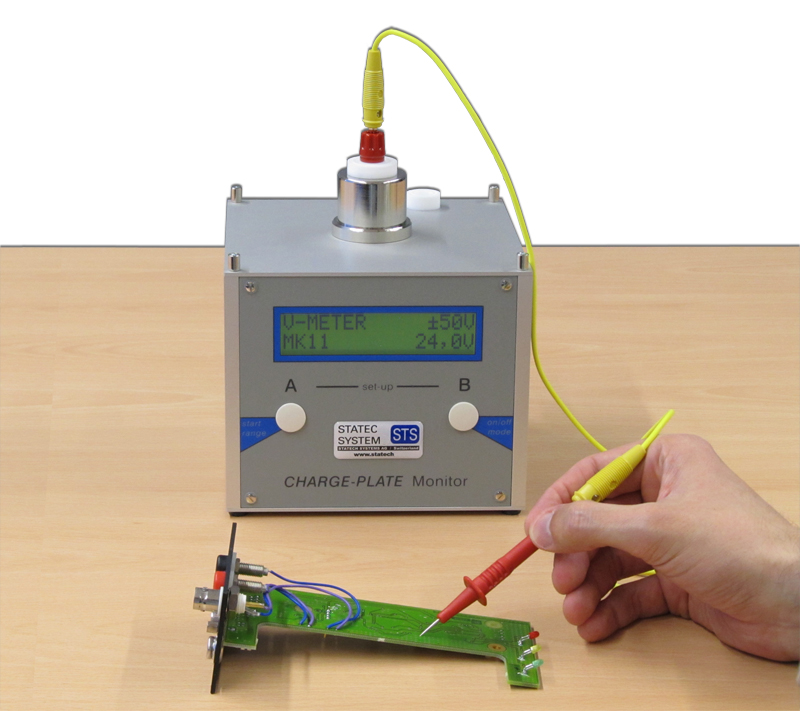

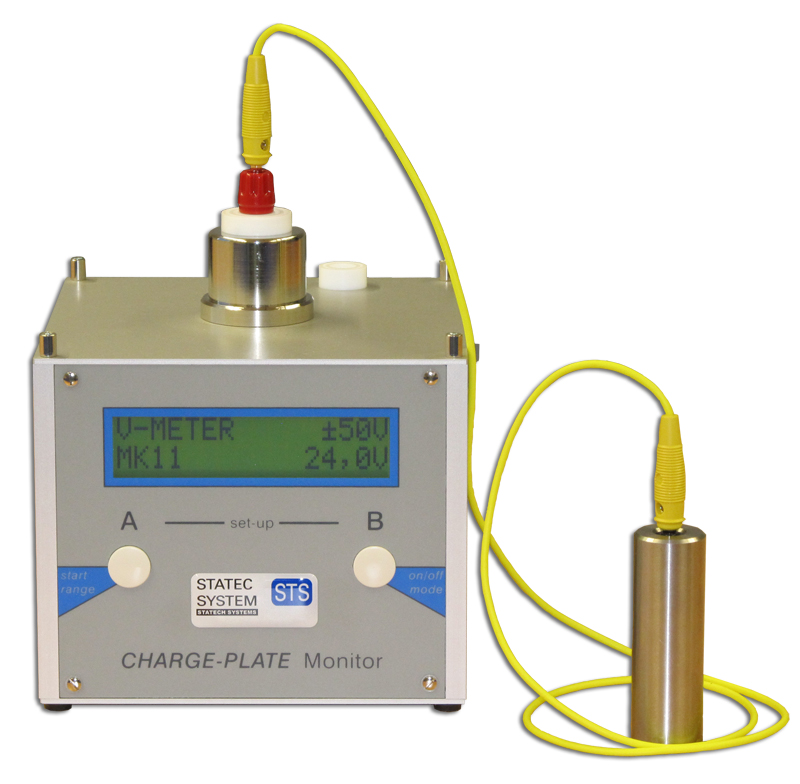

Contact Voltmeter with a special measuring head, virtually lossless contact volt measurements can be carried out on assemblies, machines or people. With the supplied hand-held electrode it is also possible to carry out compliance tests according to IEC 61340-4-5.
• Measurements: ±50V, ±200V, ±500V, ±2000V

Electrofieldmeter
• Measurements: ±5kV/m, ±20kV/m, ±50kV/m, ±200kV/m

Technical Specifications:
• Memory function
• Analog output ±1V
• RS232 interface
• Accuracy: ±2.5% (display) / ±5% (analog output)
• Input resistance: >1E15O
• Input capacities: 5pF (voltage probe) / 20pF (plate 152 x 152mm)
• Operating time on battery: ~4h
• Dimensions: 152 x 152 x 152mm
• Weight: 1kg

Delivery incl. special measuring head for contact volt measurements, hand electrode, test certificate, carrying case, software, cable and power supply.
