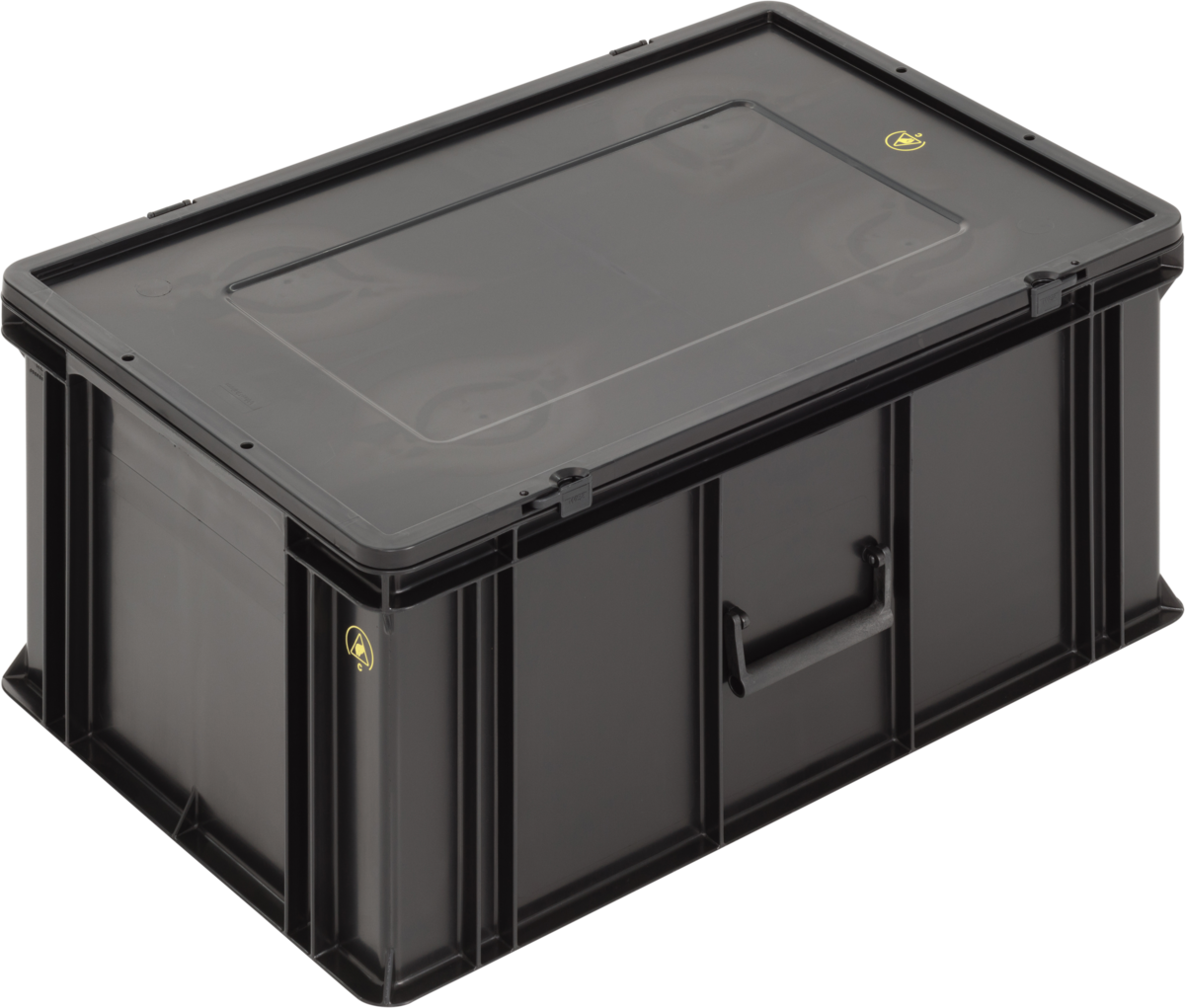

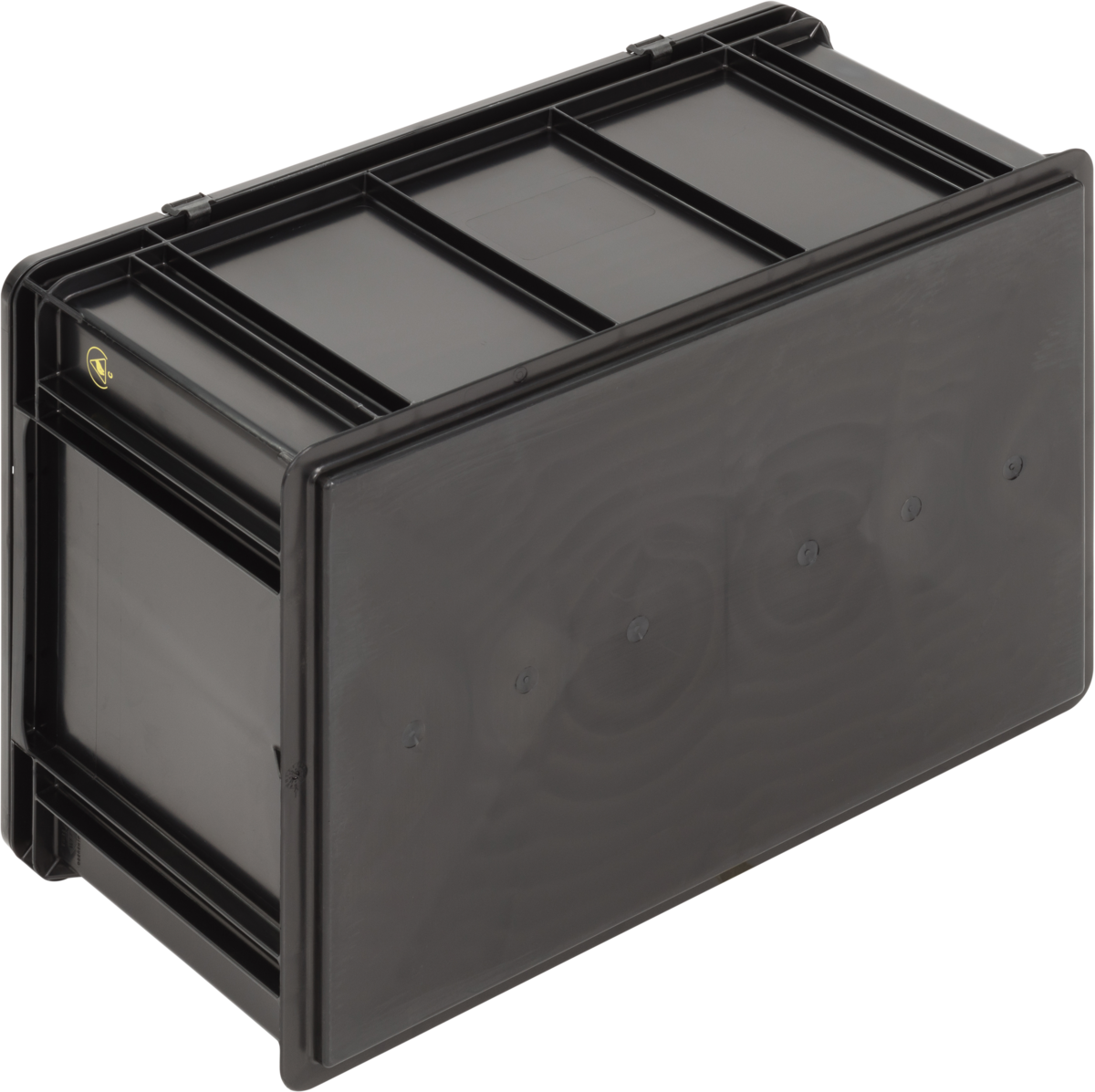

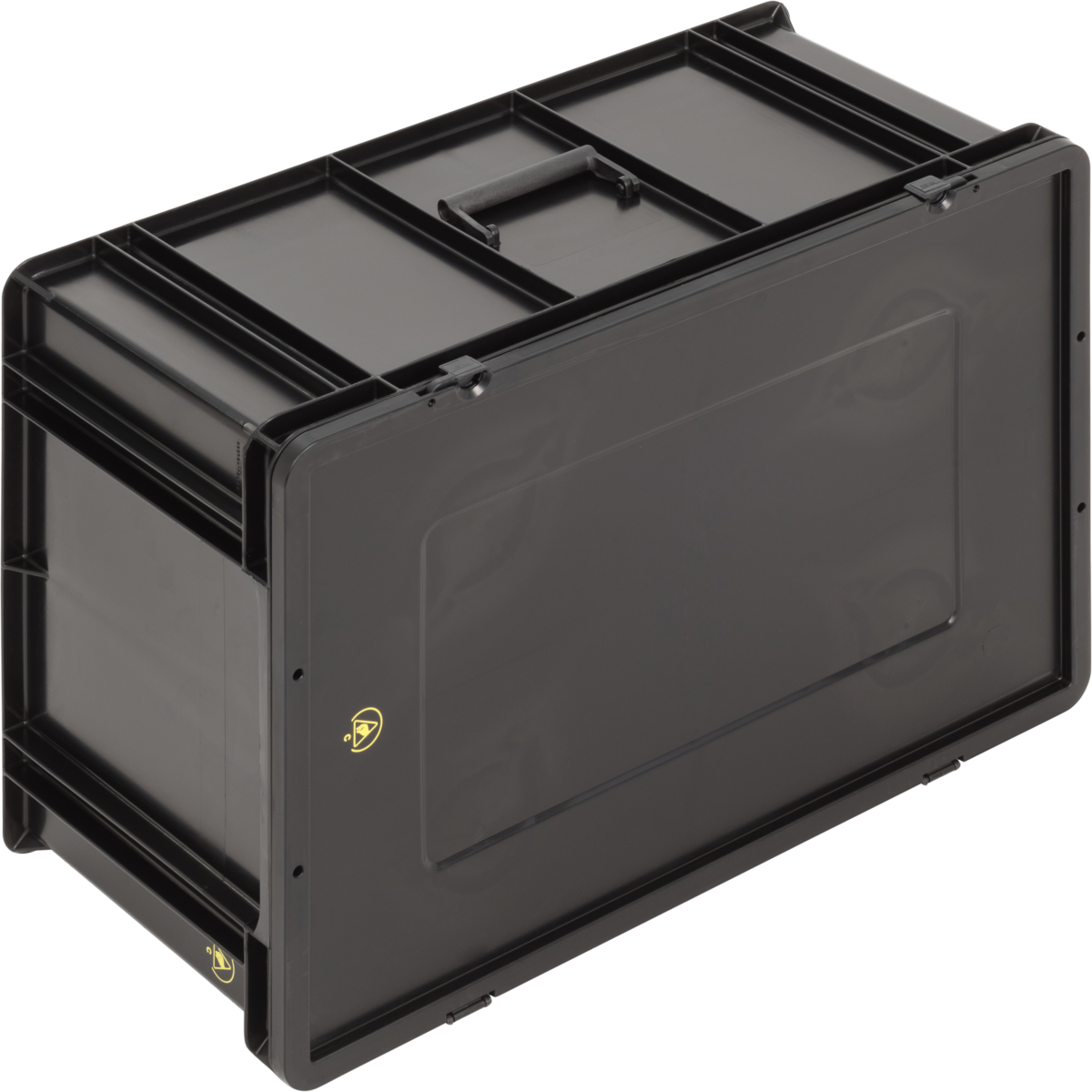

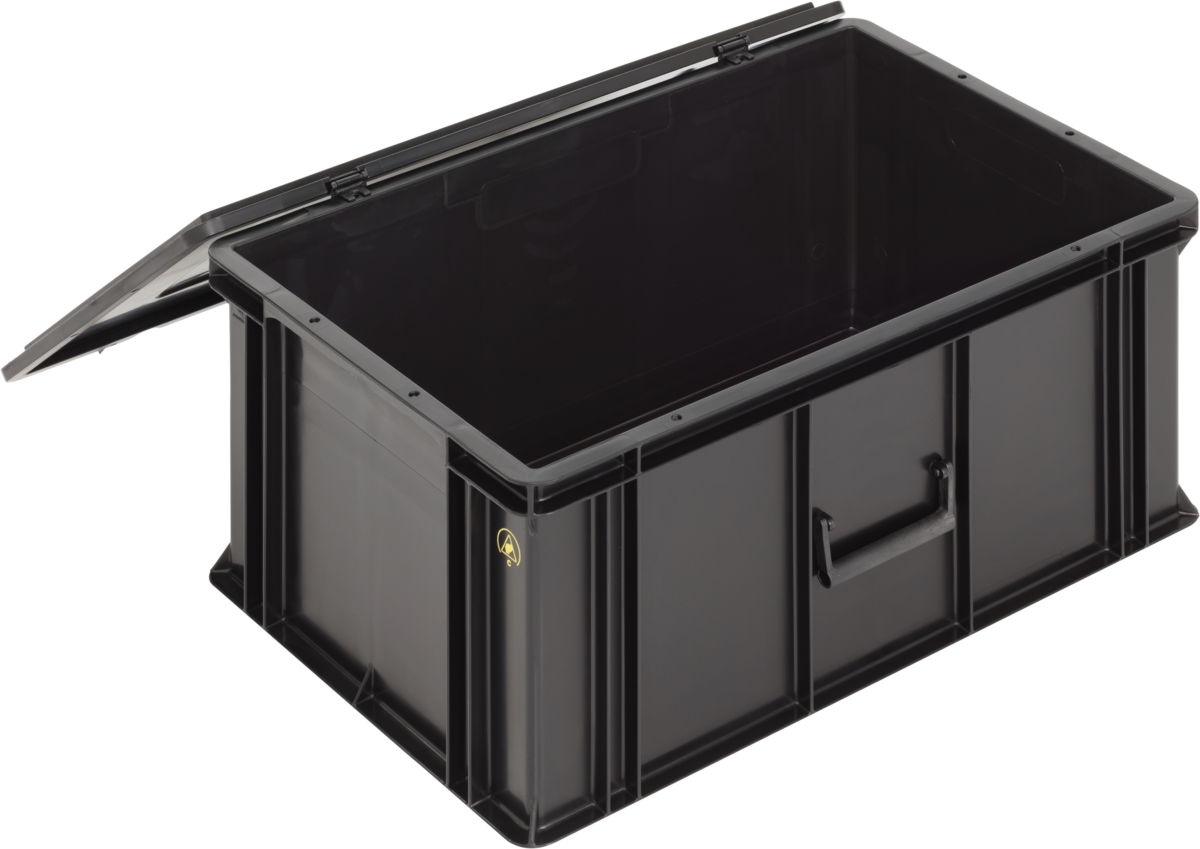

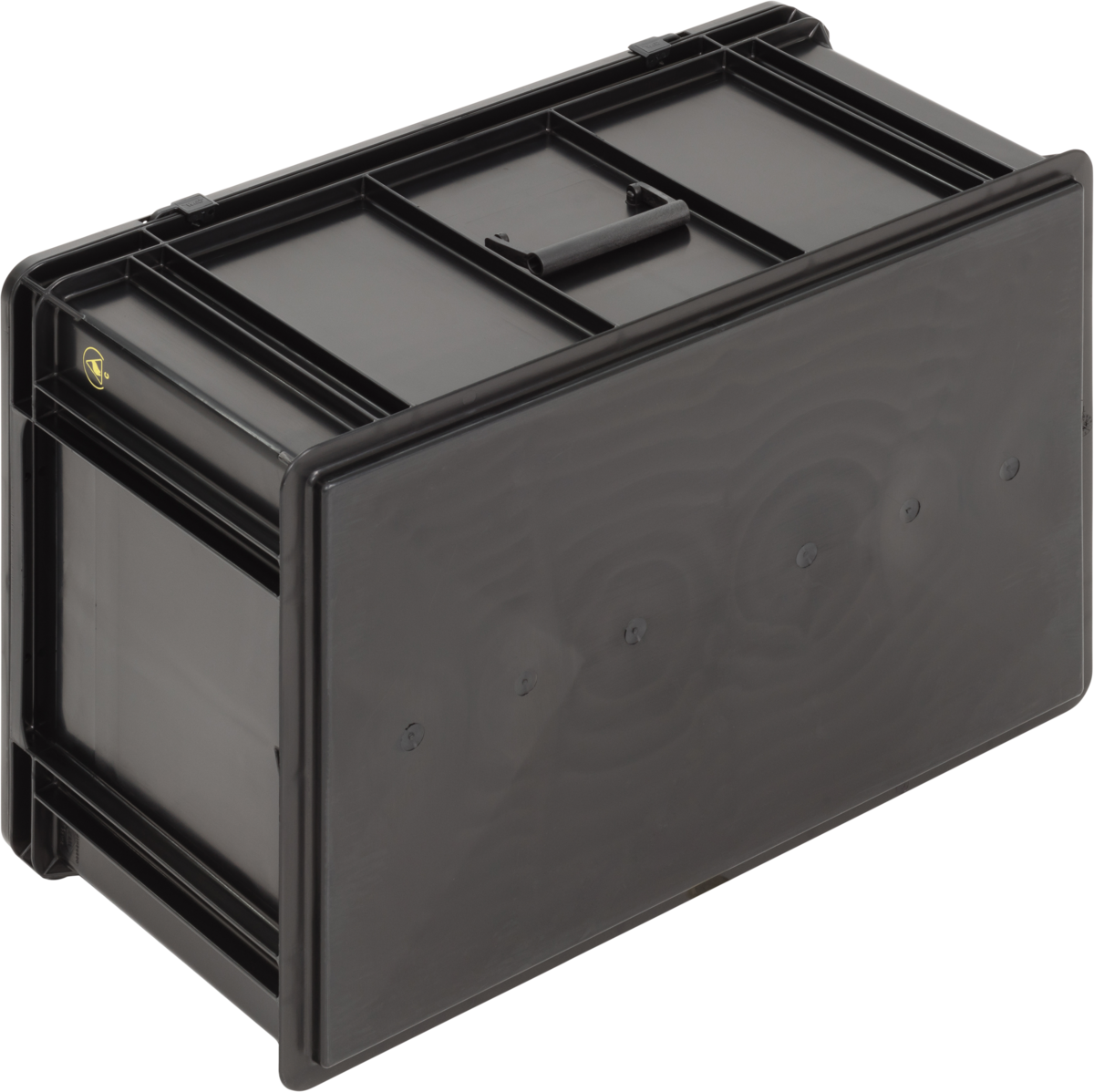

ESD Cases SGL-Norm, black: 600 x 400 x 288 mm, flat base 007

Anti-Static-ESD-Antistatic-ESD-Safe-SGL-Norm-Carrying-Cases-Flat-Base-007-Ref.-6426.397.992_1004511_600x400x288_01
ESD
Anti-Static-ESD-Antistatic-ESD-Safe-SGL-Norm-Carrying-Cases-Flat-Base-007-Ref.-6426.397.992_1004511_600x400x288_01
ESD-Safe-SGL-Norm-Carrying-Cases-Flat-Base-007-Ref.-6426.397.992_1004511_600x400x288_01_open
ESD-Safe-SGL-Norm-Carrying-Cases-Flat-Base-007-Ref.-6426.397.992_1004511_600x400x288_03
ESD-Safe-SGL-Norm-Carrying-Cases-Flat-Base-007-Ref.-6426.397.992_1004511_600x400x288_02_variant
ESD-Safe-SGL-Norm-Carrying-Cases-Flat-Base-007-Ref.-6426.397.992_1004511_600x400x288_02

ESD Cases SGL-Norm, Black: 600 x 400 x 288 mm, Flat Base 007

312.6426.397.992
HS Code : 39231090
Brand

49,44 € exc tax
Packaging Unit :

  Tell A Friend

Anti-Static Lidded ESD Container Boxes with hinged lid 136 x 087 x 35, flat base 007.
ESD-SGL-Norm Case:
Our ESD carrying cases have been specially developed for use in product packaging, presentations, transport and service.
The ESD safe carrying cases have a lid, solid base and handles, and are suitable for safe and reliable transport.
Multifunctional interiors are available which will protect your high-grade products.
These ESD carrying cases offer very comfortable handling in many standard sizes and with variable positioning of the handle.
Reference catalog: p36.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
Cases
Designation
SGL-Norm case
Page
36
Set for base
600 x 400 mm
Height
288 mm
Outer Dimensions L x W x H
600 x 400 x 288 mm mm
Inner Dimensions L x W x H
554 x 354 x 272 mm
Usable height
272 mm
Load barring capacity
15 Kg
Volume (m3)
55 Ltrs
Weight
2646 g
Base designation
flat 007
Base Closed
Yes
Sidewalls closed
Yes
Grip closed
Yes
Material
PPC
Number per pallet
48
Stock item
Yes
Black esd
Yes
Foam
Yes
Euro container or KLT box
Euro container or KLT box
Dividers
Yes
Base dimensions
600 x 400 mm
Printing
Yes
For basic dimension L x W (mm)
600 x 400
Label
Yes
Lid/Case handles
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
