ESD Cases SGL-Norm 300 x 200 x 63 mm

312.3204.390.992
HS Code : 39231090
Brand

19,72 € exc tax
Packaging Unit :

  Tell A Friend

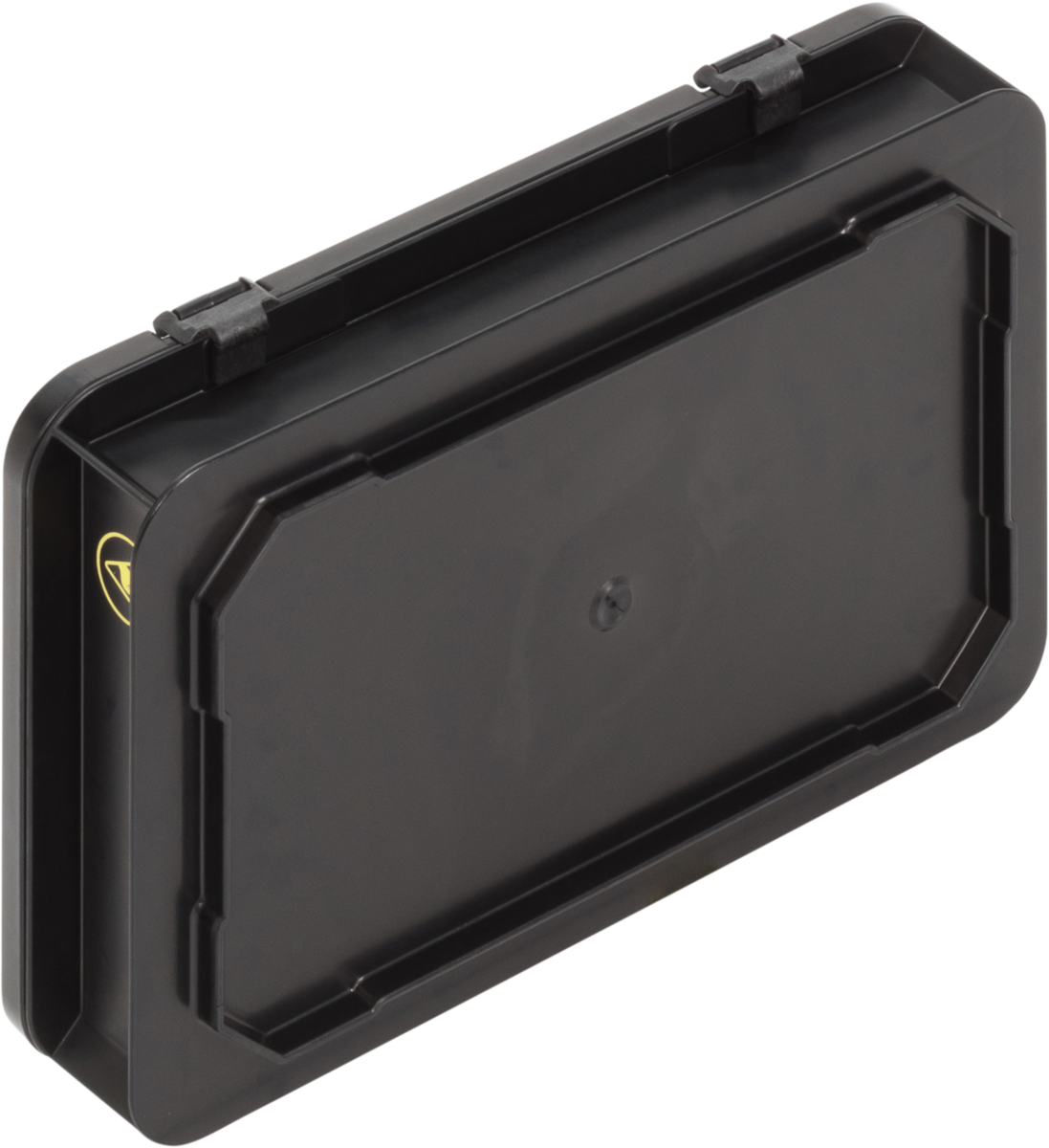

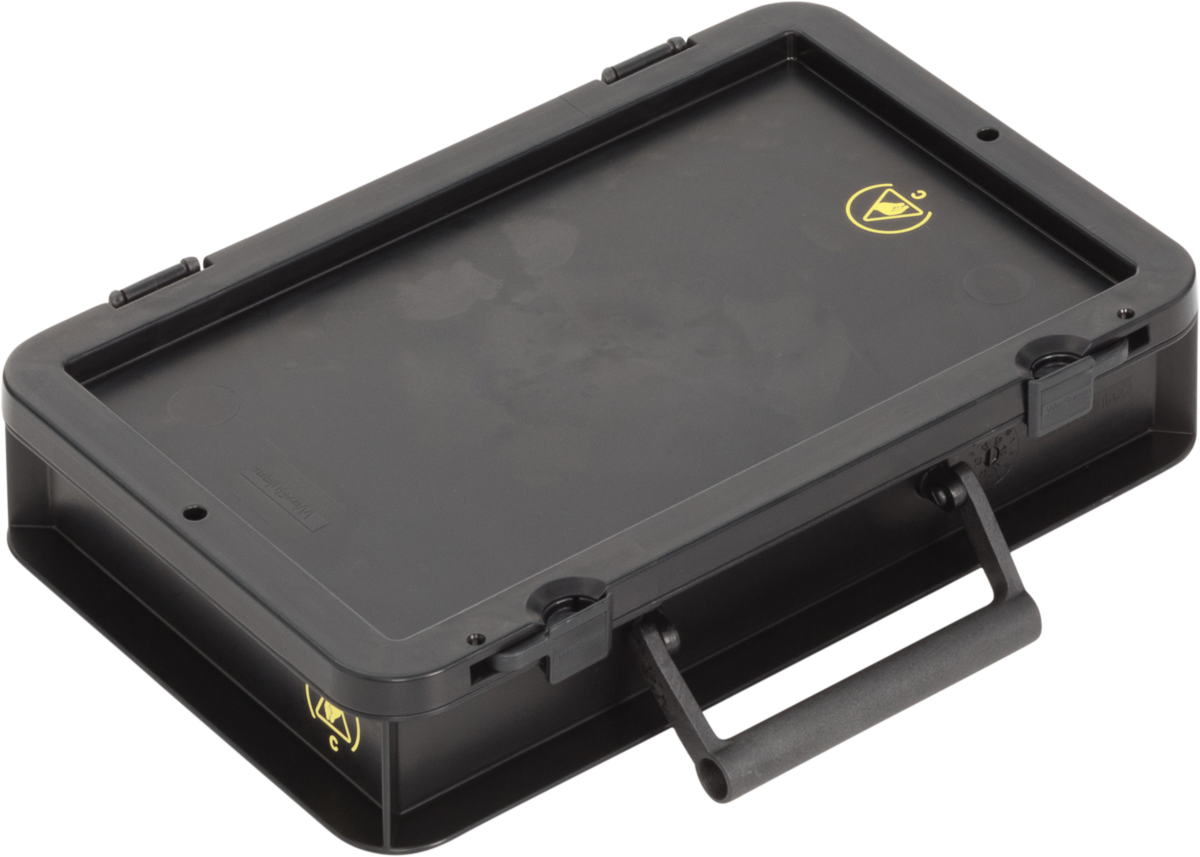

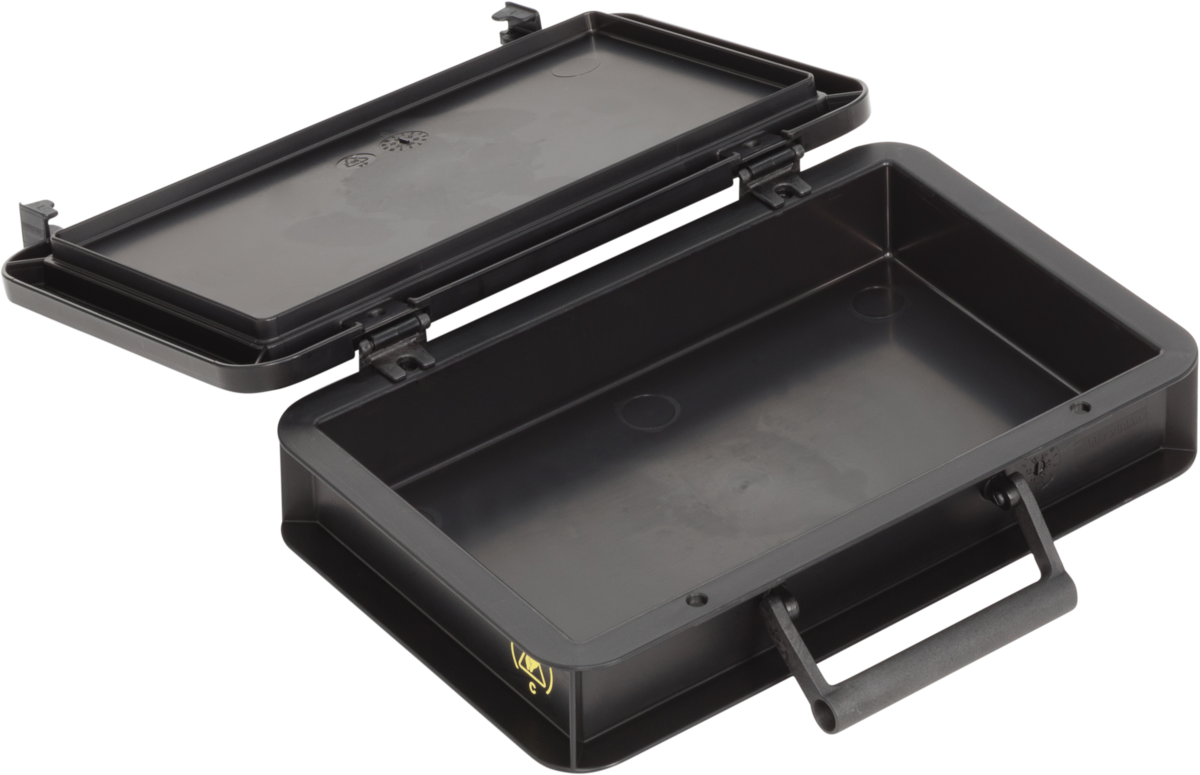

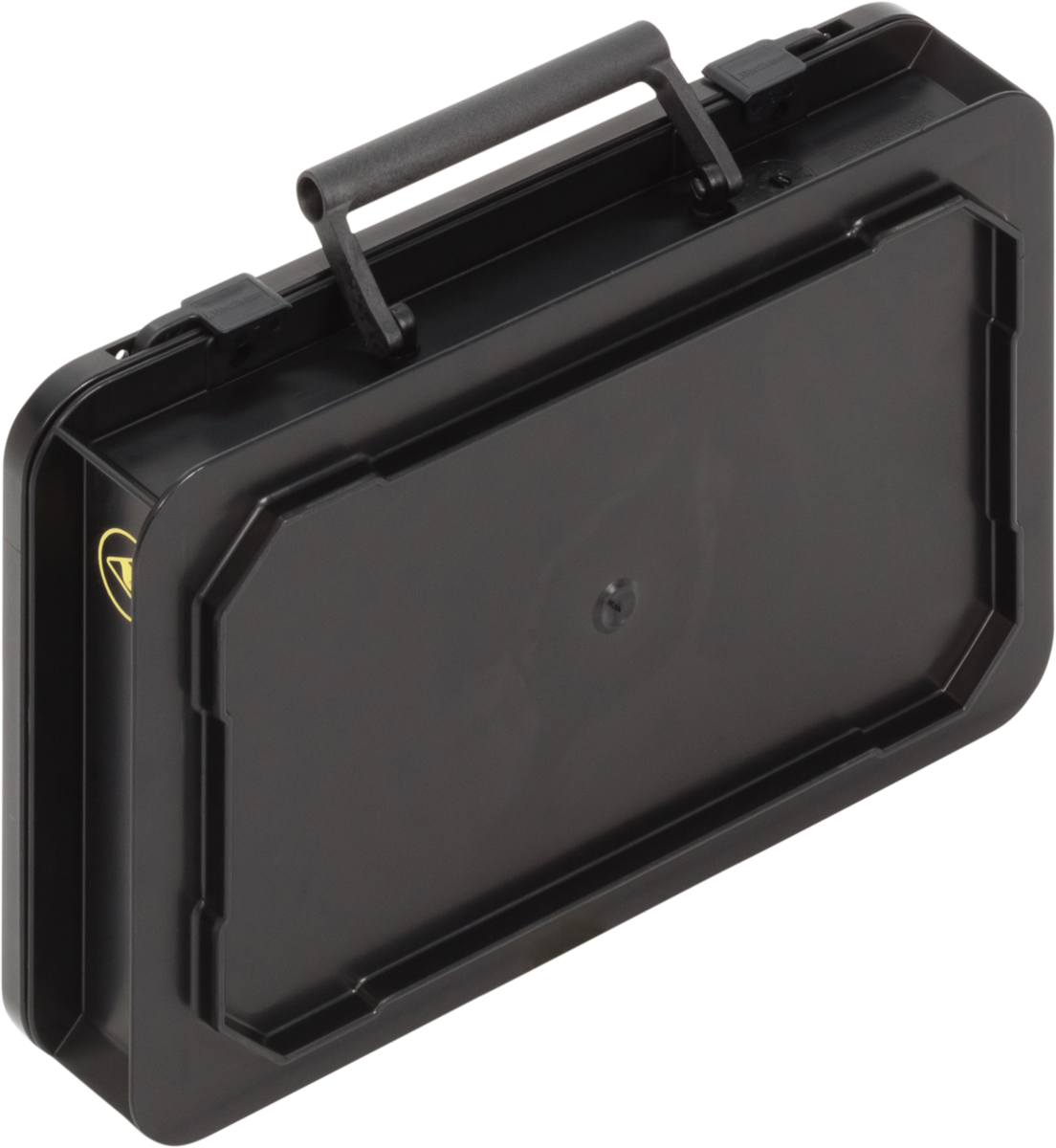

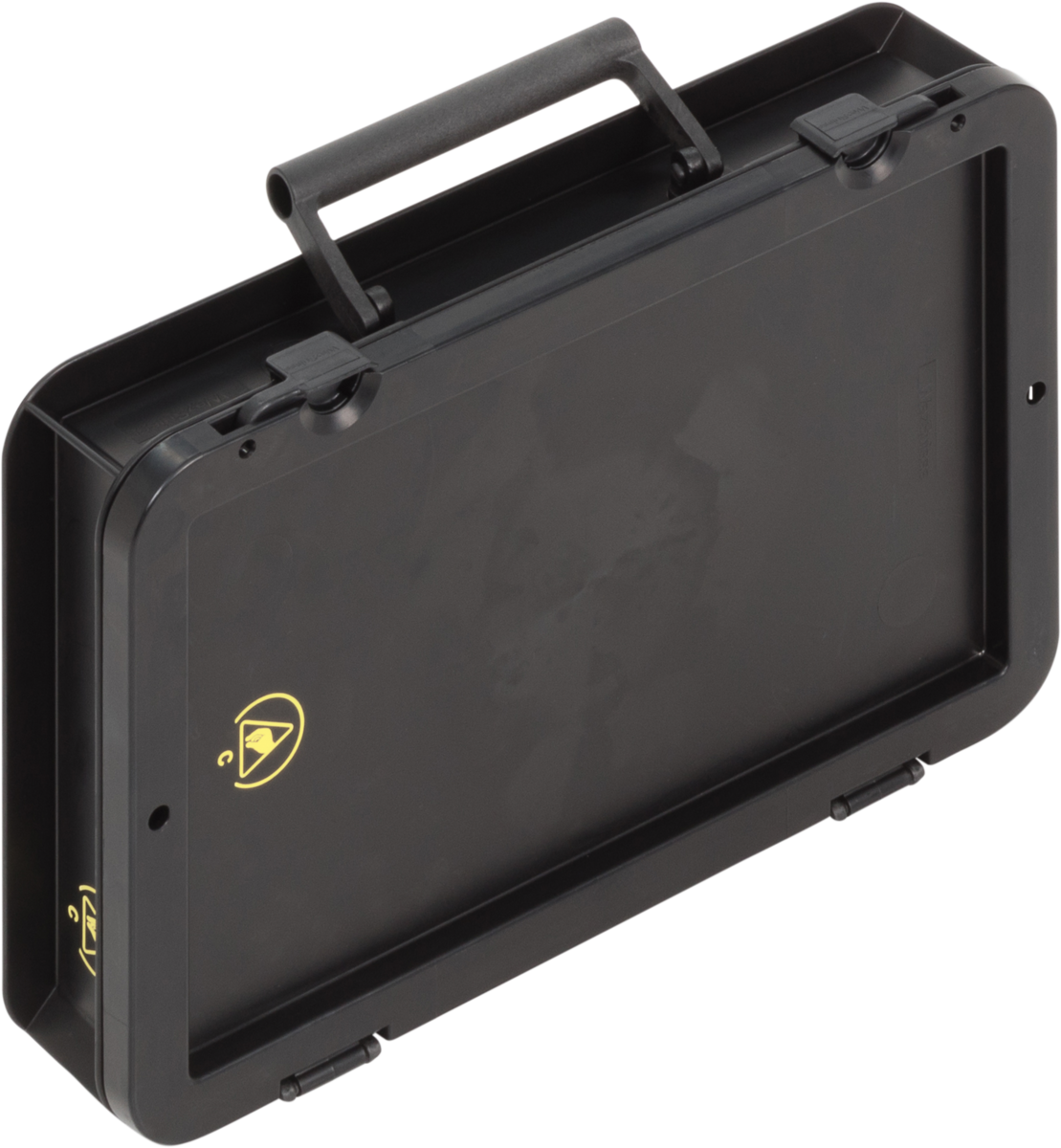

ESD Cases SGL-Norm 300 x 200 x 63 mm.
ESD-SGL-Norm Case:
Our ESD BLACKLINE carrying cases have been specially developed for use in product packaging, presentations, transport and service.
The ESD safe carrying cases have a lid, solid base and handles, and are suitable for safe and reliable transport.
Multifunctional interiors are available which will protect your high-grade products.
These ESD carrying cases offer very comfortable handling in many standard sizes and with variable positioning of the handle.
Reference catalog: p36.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Designation
SGL-Norm case
Set for base
300 x 200 mm
Height
69 mm
Outer Dimensions L x W x H
300 x 200 x 69 mm
Inner Dimensions L x W x H
260 x 160 x 39 mm
Usable height
39 mm
Load barring capacity
15 Kg
Volume (m3)
17 Ltrs
Weight
462 g
Base designation
SGL 000
Base Closed
Yes
Sidewalls closed
Yes
Grip closed
Yes
Material
PPC
Number per pallet
528
Stock item
Yes
Black esd
Yes
Foam
Yes
Printing
Yes
Label
Yes
Euro container or KLT box
Euro container or KLT box
Base dimensions
300 x 200 mm
For basic dimension L x W (mm)
300 x 200
Catalog
Cases
Lid/Case handles
Yes
Page
36
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
