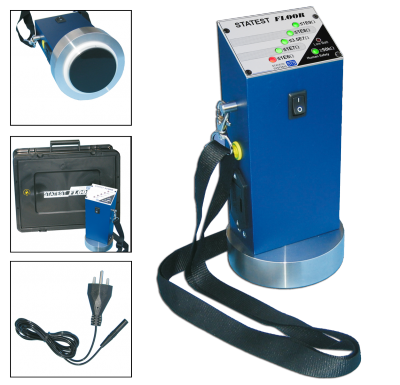

ESD Quick Floor Tester | STATEST FLOOR - control measurement semiconductor ESD floors

815-13S-4051

HS Code : 90303300

Control measurement Semiconductor ESD floors with ESD Quick Floor Tester | STATEST FLOOR! Approve a complete Workstation in less than 30 seconds!
The STATEST ESD FLOOR TESTER is designed for fast, standard conformant (IEC 61340-5-1 / ANSI/ESD S20.20) testing of conductive floor coverings, table mat's, chairs and trolleys. The adjustable nylon carrying strap ensures a relaxed, upright posture, without the need to bend over, when working with the device. System inspections (shoes-flooring) are also quick and easy. Device incl. 2.5m test lead with Swiss plug or schuko plug, test certificate, operating manual, 9V battery and carry case.

Technical Data:
• Measuring ranges: =1E9O, =1E8O, =3.5E7O, =1E7O, =1E6O
• Accuracy: ±5%
• Other displays: Personal safety =5E4O, Low - Batt
• Test voltage: 100V DC (stabilized)
• Weight: 2.3Kg
• Electrode: natural rubber, carbon filled, d=63mm, replaceable
