VC Linear Working Surface ESD Workbench | 1600 x 800 mm
Back

VC Linear Working Surface 1600 x 800 mm Vertiv Knurr Workstations Elicon Consoles ESD Products - 200.04.265.105.B

Roll over and scroll on image to zoom

VC Linear Shape Working Surface 1600 x 800 mm Knurr Vertiv Workstations Elicon Electronic Consoles E

VC Linear Working Surface ESD Workbench AES | 1600 x 800 mm

200.04.265.105.B

642,83 € exc tax

Packaging Unit :

Add To Cart

Add To WishList

Tell A Friend

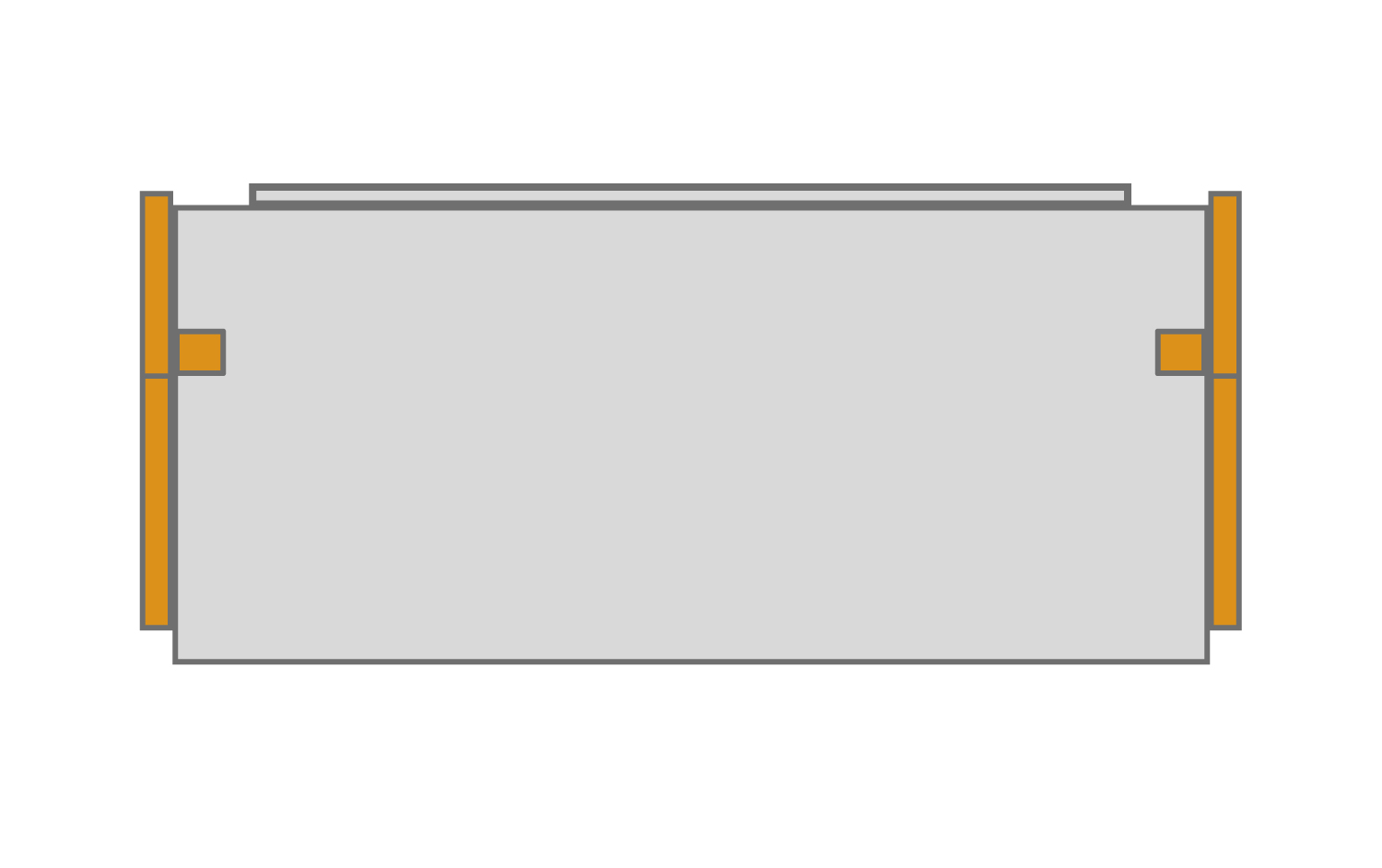

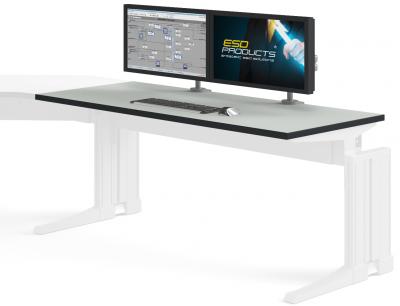

AES VC Working Surfaces | Linear
* Single table or linked
* Height adjustable in 20 mm increments from 640 to 760 mm
* Only usable in combination with Elicon VC Side Sections

Loading Capacity
1200 N (static surface load)

Material / Finish
Tabletop: Three-layer particle board FP/Y E1 variant, fire protection class B2
* Tabletop cover: High pressure plastic laminate (HPL)
* Edging: ABS
* Stabilizer, cable trough and rear panel
* Steel panel, powder-coated

Color Combination * Tabletop: A RAL7035 Light gray * Edging: Black gray * Sheet metal parts: RAL9006 White aluminium

Supply Schedule * 1 working surface with horizontal cable duct

How Supplied * Preassembled, flat packaging

Technical Details

Model: AES OSCAR
Workstation Category: AES OSCAR Parts & Accessories
Parts & Accessories: ESD Working Surfaces
Adjustable & Fixed Height: Height Adjustable
Height Adjustment Range: 640 - 760 mm
Working Surface: Linear Worktop
Dimensions: 1600 x 800 mm
Max Load Capacity: 1200 N

All ESD products fulfill the IEC 61340 standards.
