ESD Wrist Strap Monitor with Lamp Connection
ESD

Continuous ESD Wrist Strap Monitor (tester) with Lamp Connection

472.AIJGO-12.8
HS Code : 90318020
Brand

211,50 € exc tax
Packaging Unit :

  Tell A Friend

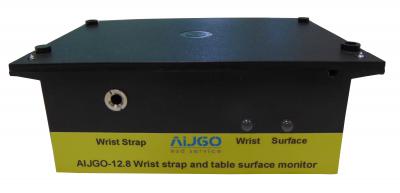

ESD WRIST STRAP MONITOR WITH LAMP CONNECTION (ENERGY SAVING)

Wrist strap monitor (tester) for workmenship in ESD safe, Wrist strap and ESD safe workplace continouse testing, Light and sound signal indication of test result, For one wrist strap. The connected lamp of the working station only can give light if the working surface is suitable for the ESD standard and the wirst strap is connected to the monitor! In this case you can reach significant ENERGY SAVING.

Model
AIJGO-12.8
Tester Category
ESD Test Equipment
Tester Type
ESD Wirst Strap Monitor
Test Voltage
5V
Resistance Range
Red < 100 kOhm < Green < 30 MOhm < Red
Dimensions
100 x 50 x 25 mm
AES ESD Access Control Catalog Equipment 2018
2.33 MB
AES ESD Access Control Catalog User Guide 2018
1.81 MB
AES ESD Access Control Entrance System LIGHT BAR COMPLEX ESD
10.85 MB
AES ESD Access Control Entrance System Test Procedure
3.68 MB


All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
