Automation ESD FUTURA Container, black: 600 x 400 x 120 mm, flat base 007.

Anti-Static-ESD-Antistatic-Safe-FUTURA-Norm-Stacking-Bin-Containers-Flat-Base-007-Ref.-6412.060.992_1006146_600x400x120_01
ESD

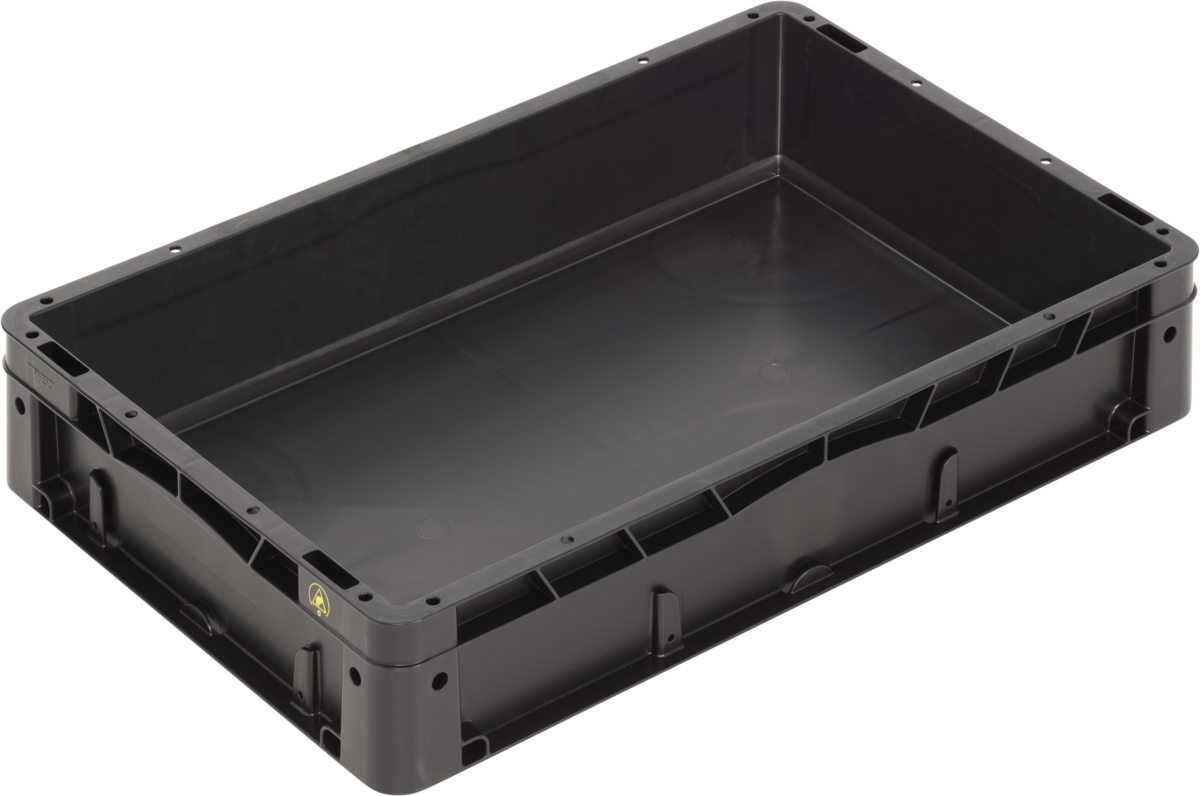

Anti-Static-ESD-Antistatic-Safe-FUTURA-Norm-Stacking-Bin-Containers-Flat-Base-007-Ref.-6412.060.992_1006146_600x400x120_01

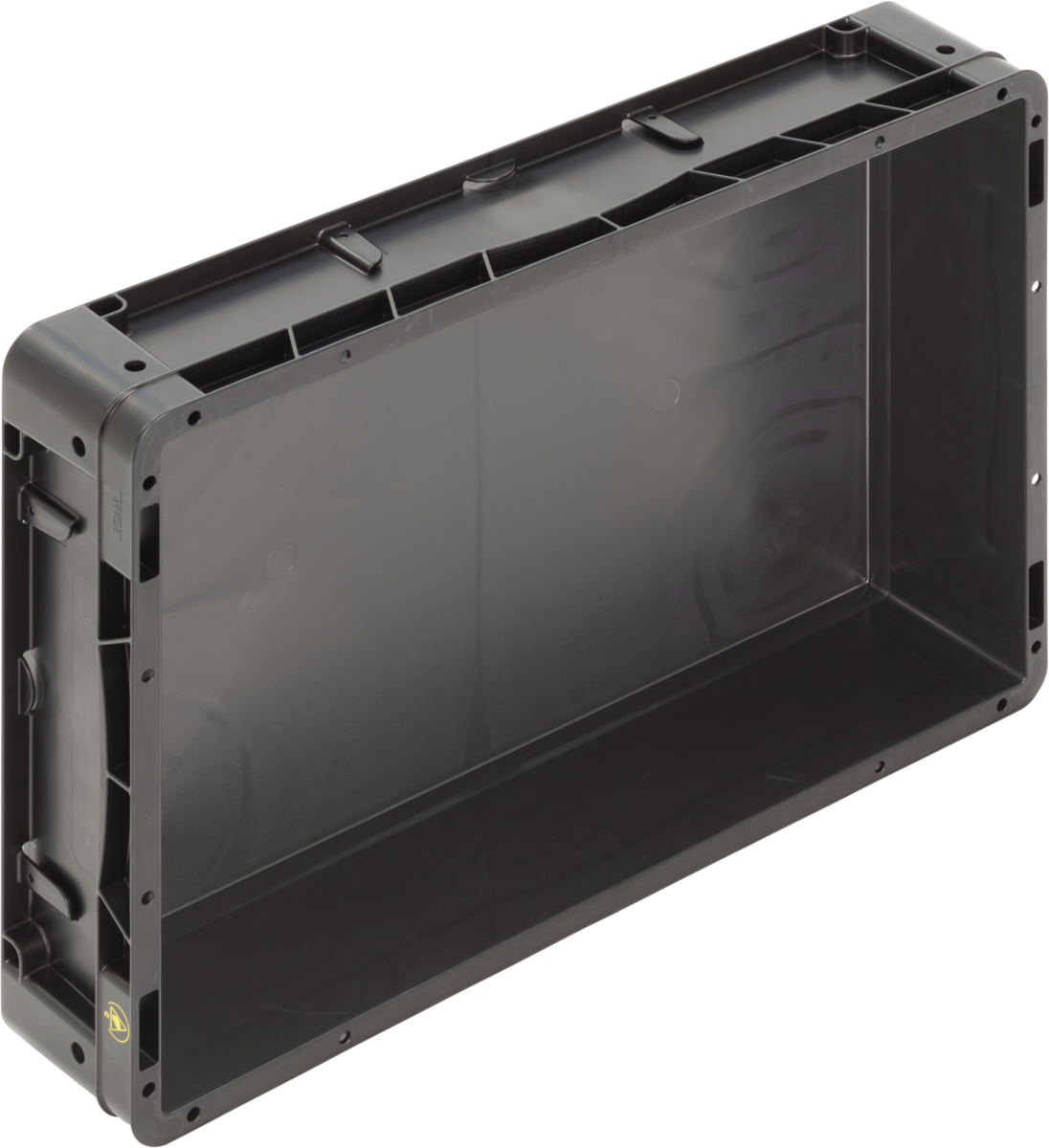

ESD-Safe-FUTURA-Norm-Stacking-Bin-Containers-Flat-Base-007-Ref.-6412.060.992_1006146_600x400x120_03

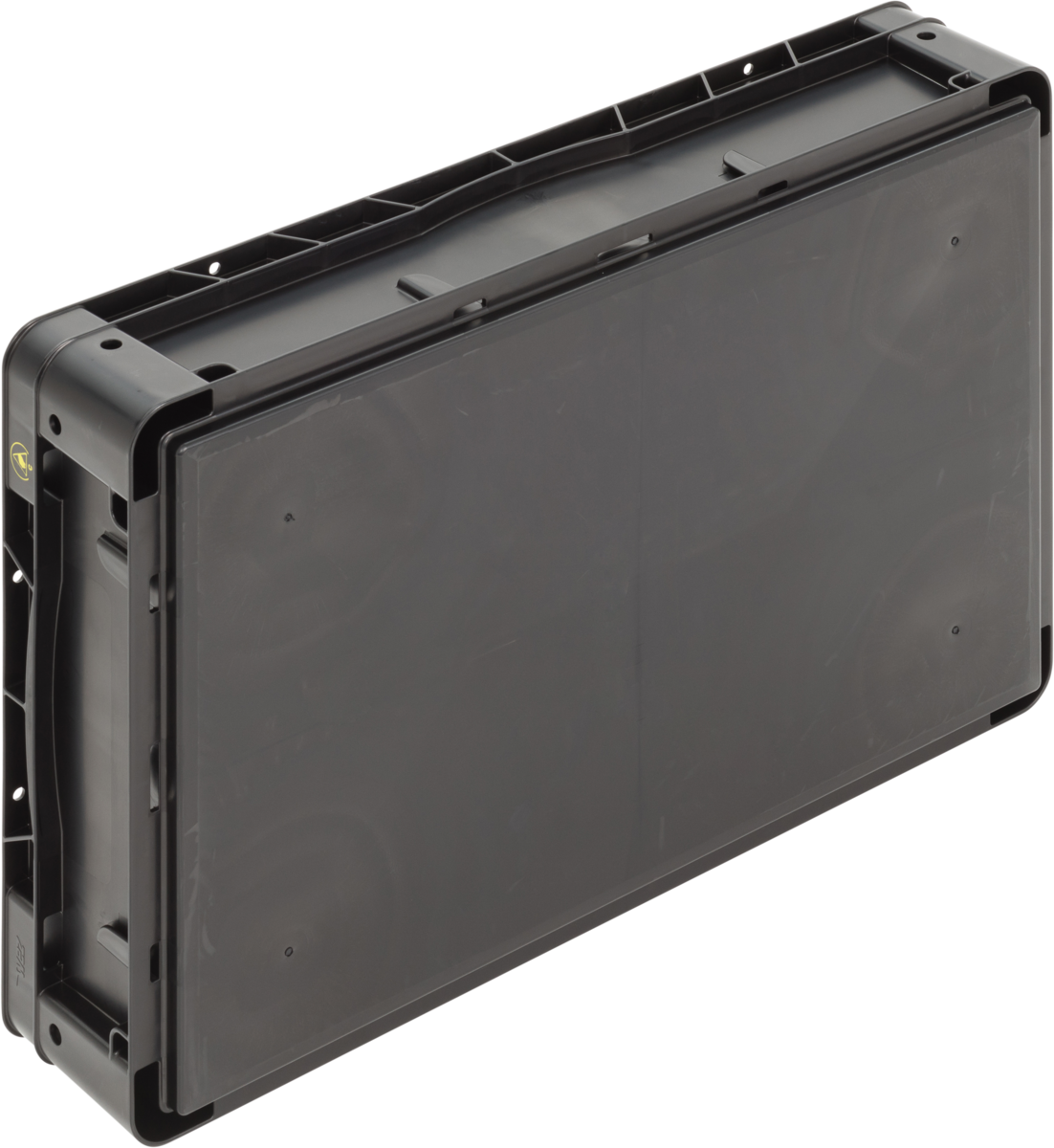

ESD-Safe-FUTURA-Norm-Stacking-Bin-Containers-Flat-Base-007-Ref.-6412.060.992_1006146_600x400x120_02

Automation ESD FUTURA Container, Black: 600 x 400 x 120 mm, Flat Base 007.

312.6412.060.992
HS Code : 39231090
Brand

15,82 € exc tax
Packaging Unit :

  Tell A Friend

Anti-Static ESD Automation FUTURA Container, Black, 600 x 400 x 120 mm, flat base 007.

Automation ESD container:
Designed to be either closed or open-worked, our ESD containers for automated processes are ideally suited for distributing food and electronic products

Stiffeners, various handling options and high dimensional accuracy ensure trouble-free running

The ESD crates run particularly smoothly when transporting items on roller conveyors and the optional handle holes mean they are suitable for both automatic and manual handling

Special designs:
All products that are marked here as being non-stock items are available in a minimum order quantity of 500 pieces.
Reference catalog: p20.

• Blackline products offer ideal ESD protection • ESD protection is particularly important where there are seasonal variations and low humidity. • Attention is also increasingly being given to ESD protection in servicing and maintenance of vehicles, plant and machinery, especially in Central Europe BLACK LINE ESD Containers • IEC 61340-5-ff-tested and certified • high impact strength, tested by drop-test 1.5 m/15 kg at –20°C and 2.5 m/15 kg at + 20°C • Continuous operating temperature from –20 ° C to + 80 ° C • Conductive execution, dissipative to 10⁴ ohms / cm³ • dissipative design, dissipative to 10⁶ Ohm / cm³ • short-term temperature stability to 120 ° C • compressive stacking load up to 700kg for Euro-standard containers • base loading from 15 to 65 kg
Model
_
Catalog
Automation Container
Designation
FUTURA container
Page
20
Set for base
600 x 400 mm
Height
120 mm
Outer Dimensions L x W x H
600 x 400 x 120 mm
Inner Dimensions L x W x H
562 x 362 x 115 mm
Usable height
104 mm
Stacking height
108 mm
Load barring capacity
15 Kg
Volume (m3)
234 Ltrs
Weight
1520 g
Base designation
flat 007
Base Closed
Yes
Sidewalls closed
Yes
Grip closed
Yes
Material
PPC
Number per pallet
72
Stock item
Yes
Black esd
Yes
Euro container or KLT box
Euro container or KLT box
Insert container
Yes
Base dimensions
600 x 400 mm
Foam
Yes
For basic dimension L x W (mm)
600 x 400
Dividers
Yes
Printing
Yes
Lid/Case handles
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
