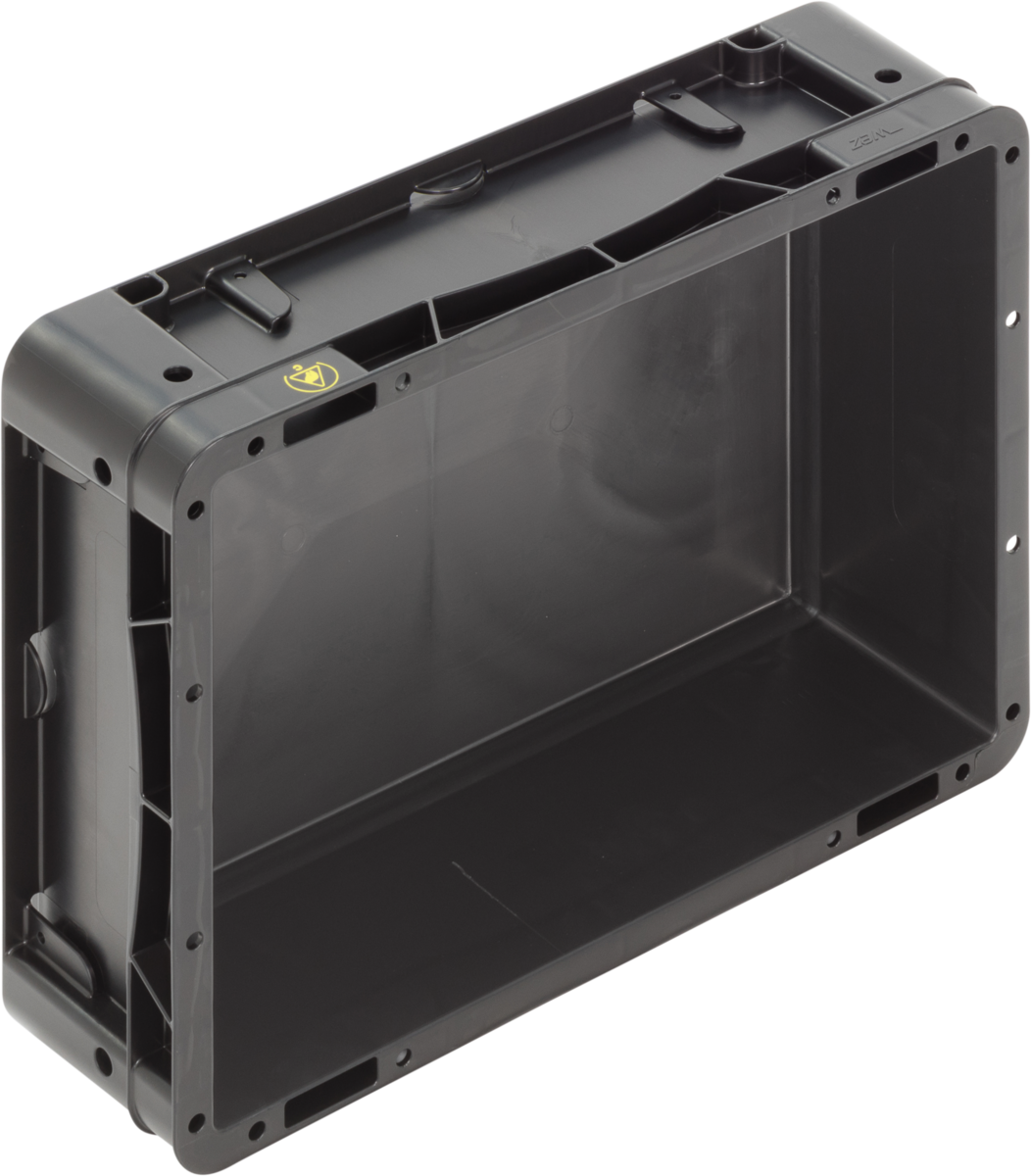

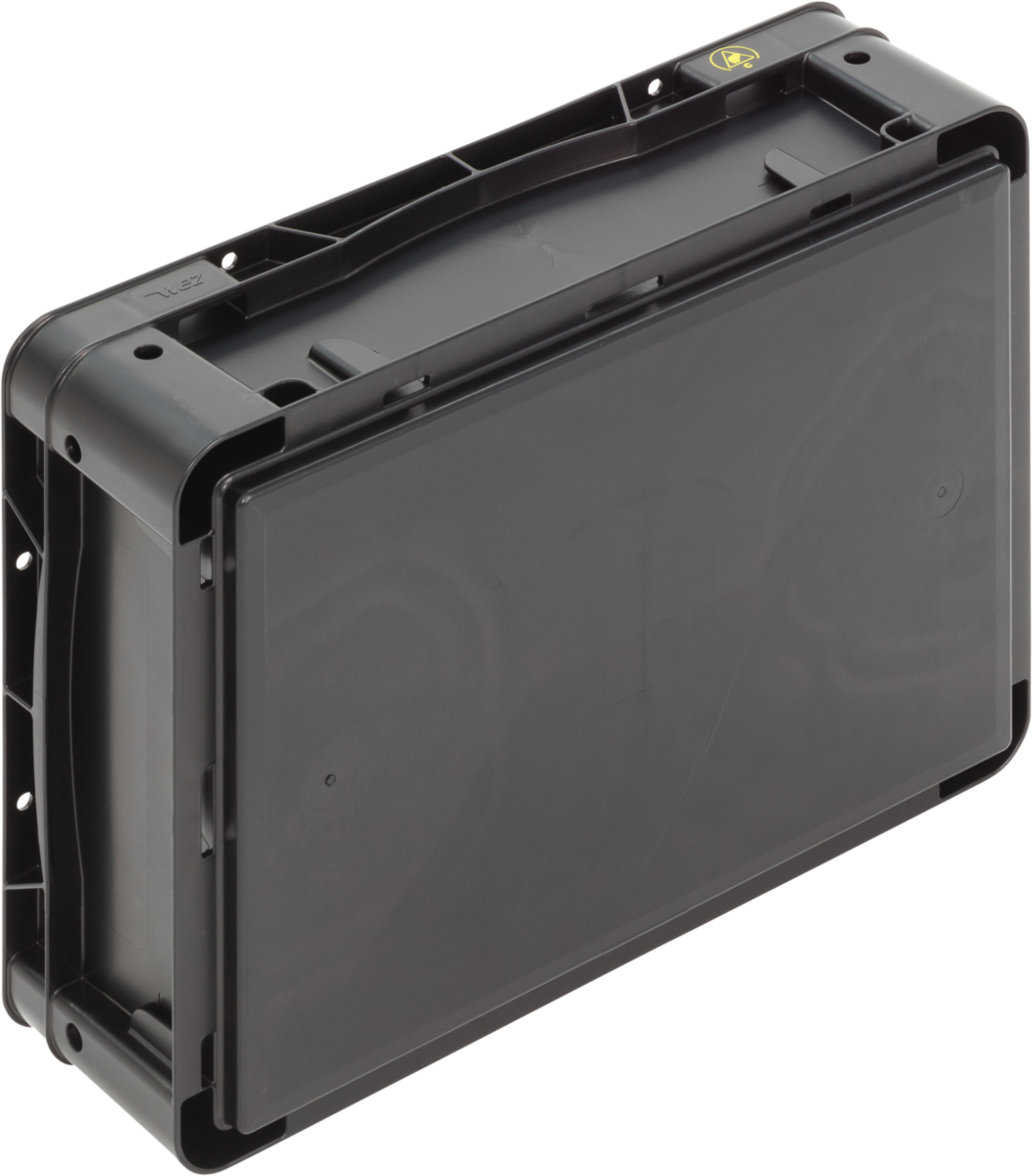

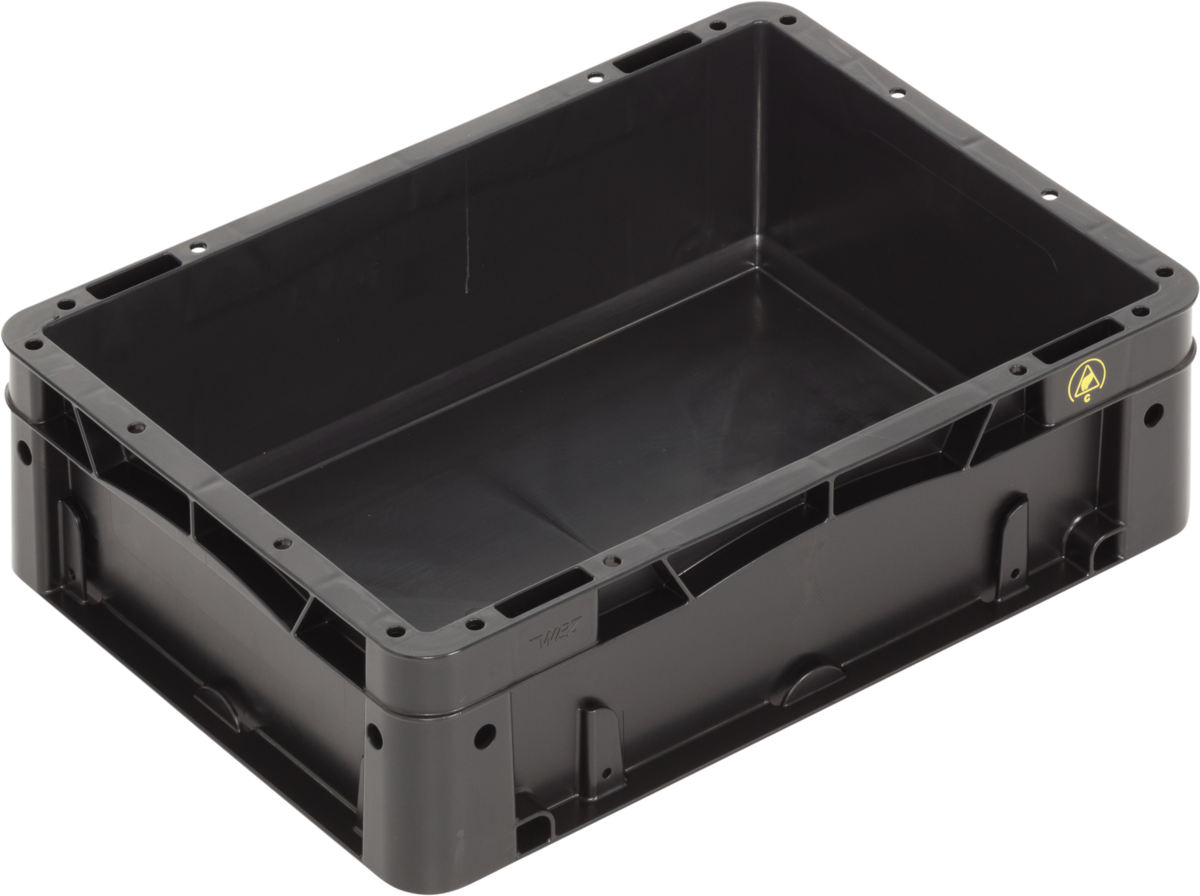

Automation ESD FUTURA Container 400 x 300 x 120 mm

Anti-Static-ESD-Antistatic-Safe-SGL-Norm-Stacking-Bin-Containers-Flat-Base-Ref.-4312.060.992_1006145_400x300x120_01
ESD
Anti-Static-ESD-Antistatic-Safe-SGL-Norm-Stacking-Bin-Containers-Flat-Base-Ref.-4312.060.992_1006145_400x300x120_01
ESD-Safe-FUTURA-Norm-Stacking-Bin-Containers-Flat-Base-007-Ref.-4312.060.992_1006145_400x300x120_03
ESD-Safe-FUTURA-Norm-Stacking-Bin-Containers-Flat-Base-007-Ref.-4312.060.992_1006145_400x300x120_02

Automation ESD FUTURA Container 400 x 300 x 120 mm

312.4312.060.992
HS Code : 39231090
Brand

10,18 € exc tax
Packaging Unit :

  Tell A Friend

Automation ESD FUTURA Container 400 x 300 x 120 mm, flat base 007.

Automation ESD container:
Designed to be either closed or open-worked, our ESD containers for automated processes are ideally suited for distributing food and electronic products

Stiffeners, various handling options and high dimensional accuracy ensure trouble-free running

The ESD crates run particularly smoothly when transporting items on roller conveyors and the optional handle holes mean they are suitable for both automatic and manual handling

Special designs:
All products that are marked here as being non-stock items are available in a minimum order quantity of 500 pieces.
Reference catalog: p20.

Model
_
Height
120 mm
Material
PPC
Page
20
Catalog
Automation Container
Designation
FUTURA container
Set for base
400 x 300 mm
Outer Dimensions L x W x H
400 x 300 x 120 mm
Inner Dimensions L x W x H
362 x 262 x 115 mm
Usable height
104 mm
Stacking height
108 mm
Load barring capacity
15 Kg
Volume (m3)
109 Ltrs
Weight
865 g
Base designation
flat 007
Base Closed
Yes
Sidewalls closed
Yes
Grip closed
Yes
Number per pallet
144
Stock item
Yes
Black esd
Yes
Insert container
Yes
Foam
Yes
Dividers
Yes
Printing
Yes
Lid/Case handles
Yes
291523072019 AES ESD Wez Product Catalog 2018 EN



All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
