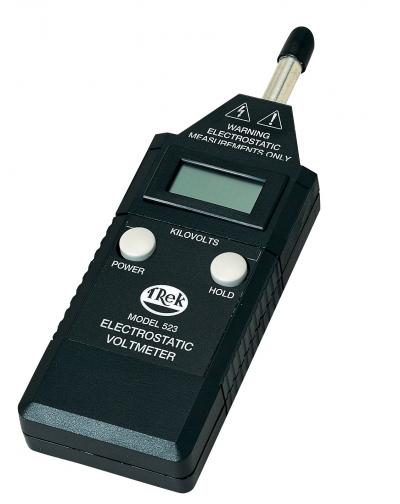

AC Feedback Electrostatic Voltmeter | Model 523-1

400-523-1-CE

HS Code : 9030.33.38.00

1.652,00 € exc tax

Packaging Unit :

Add To Cart

Add To WishList

Tell A Friend

±20kV Hand-Held AC Feedback Electrostatic Voltmeter. Range: 0 to ±2 kV DC

Technical Details

Model: Model 523-1
Tester Category: ESD Test Equipment
Tester Type: Electrostatic Voltmeter
Measurement Range: 0 to ±20kV
Voltage Display: 0 to ±19.99kV
Voltage Resolution: 10V
Probe-to-Surface Seperation: Range of 30 to 60 mm
Accuracy: ±5% (Full Scale)
Speed of Response: 400ms
Temperature Range: 15°C to 35°C
Relative Humidity: To 85%RH, non-condensing
Power Supply: 9V Alkaline Battery
Dimensions: 31 x 59 x 183 mm
Weight: 0.2 Kg

Product Files

ESD Test Equipment Brochure AES

ESD Test Equipme..

5.80 MB

All ESD products fulfill the IEC 61340 standards.
We believe all the information in these pages including technical data to be reliable.
However we make no warranties expressed or implied and assume no liability regarding any use of this information.
